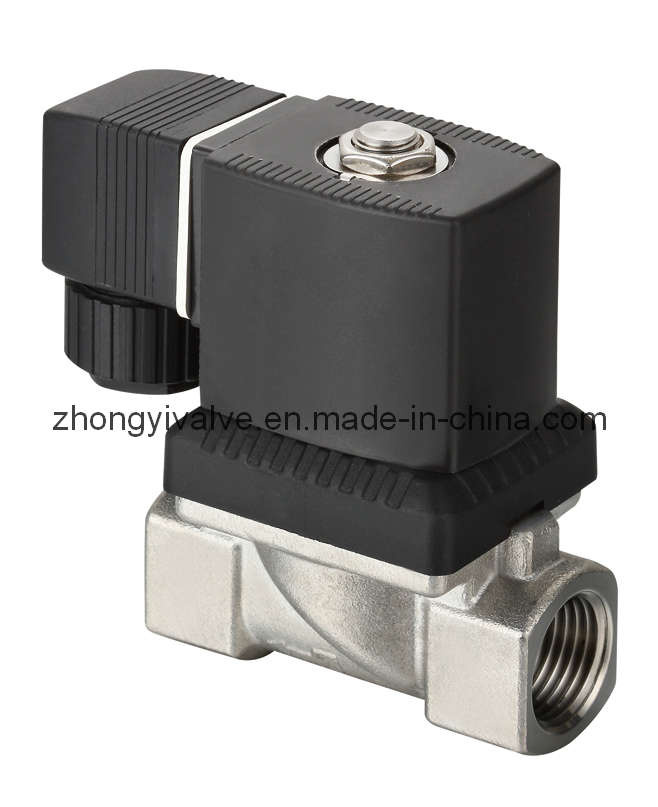

Operated way: Zero-operated
Control way: Nc(standard), no
Pipe size: G1/4~g2(standard)
Dn: Dn10~50mm
Pn: The highest pn: 1.6mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80(+130degree centigrade, )
Circumstance temperature: -10~+50 degree centigrade material: Stainless steel
Sealing material: NBR(standard)\FKM\EPDM
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
Item no. |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
Kv
(m3/h) |
medium temperature
NBR FPM EPDM |
2231008-14Cr |
14 |
1/4 |
0~1.0 |
1.4 |
-10~+80 -10~+120 -20~+120 |
2231010-14Cr |
14 |
3/8 |
0~1.0 |
1.4 |
2231015-14Cr |
14 |
1/2 |
0~1.0 |
1.4 |
2231020-20Cr |
14 |
3/4 |
0~1.0 |
6.4 |
2231020Cr |
20 |
3/4 |
0~1.0 |
6.4 |
2231025Cr |
20 |
1 |
0~1.0 |
18 |
