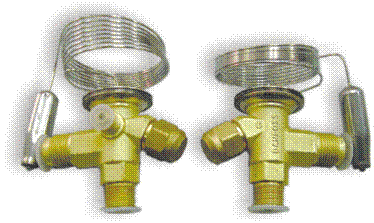

(T2 TE2) Series Danfoss Thermostatic Expansion Valves
Danfoss thermostatic expansion valves(T2 TE2 Series)
Regriratant: R22/R404A/R507
Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.
Product Description
T 2/TE 2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants. T 2/TE 2 is supplied with an interchangeable orifice assembly for easy stocking and service.
Product Features
TN 2/TEN 2, flare/solder, R134a, element / valve body Angleway valve body, inlet size 3/8 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar. Equalization connection size, TE 2, flare/solder, versions with mm-connections: 6 mm, versions with in.-connections: 1/4 in.
Brand: | Danfoss |
| Colour: | - |
| Connection Size: | - |
| Connection Type: | Flare/Solder |
| Length (M): | - |
| Material Type: | Brass |
| Model Number: | TN 2 |
| Nominal Running Current (A): | - |
| Operating Temperature: | - |
| Pressure: | - |
| Voltage: | - |
| Warranty: | 1 Year |
| Phase: | - |
| Refrigerant Suitability: | R134a |
| Valve Connections: | 3/8 x 1/2 |
| Defrost: | - |
| Evaporator Fans: | - |
| Cable Length (mtr): | - |
| Refrigerant | Valve
type | Capillary tube
m | Inlet Outlet | Code no. |
|
| R22 | TX2 | 1.5 | 3/8 1/2 | 068Z3206 |
|
| TEX2 | 1.5 | 3/8 1/2 | 068Z3209 |
|
| R407C | TZ2 | 1.5 | 3/8 1/2 | 068Z3496 |
|
| TEZ2 | 1.5 | 3/8 1/2 | 068Z3501 |
|
| R134a | TN2 | 1.5 | 3/8 1/2 | 068Z3346 |
|
| TEN2 | 1.5 | 3/8 1/2 | 068Z3348 |
|
R404A/
R507 | TS2 | 1.5 | 3/8 1/2 | 068Z3400 |
|
| TES2 | 1.5 | 3/8 1/2 | 068Z3403 |
|
| R12 | TF2 | 1.5 | 3/8 1/2 | 068Z3202 |
|
| TEF2 | 1.5 | 3/8 1/2 | 068Z3204 |
|
| R502 | TY2 | 1.5 | 3/8 1/2 | 068Z3212 |
|
| TEY2 | 1.5 | 3/8 1/2 | 068Z3215 |
|
