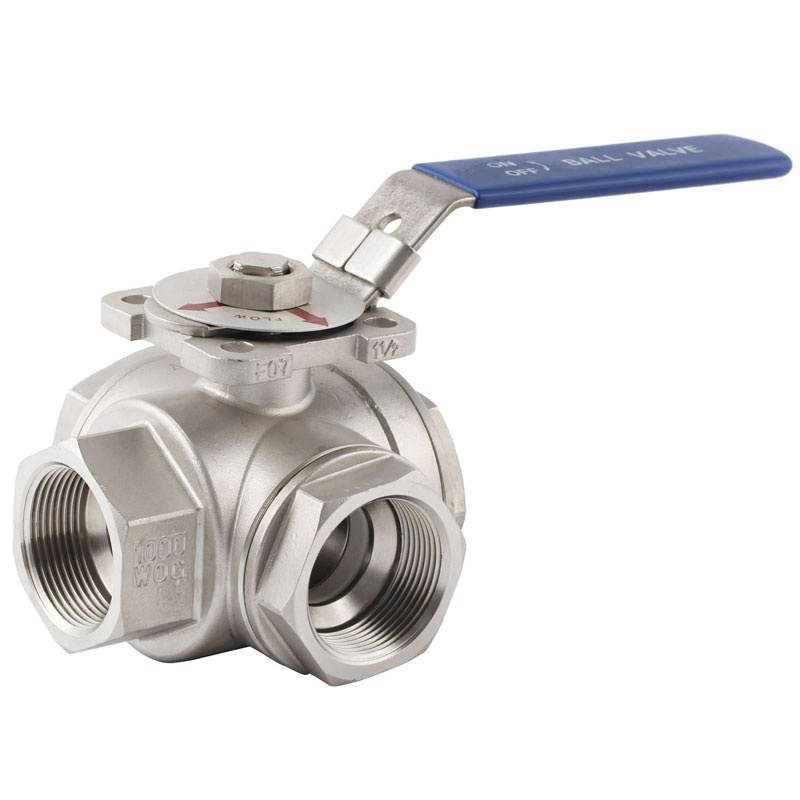

Three Way Stainless Steel Screwed Ball Valve
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
Three way Screwed Ball Valves, L port ball valve, T port ball valveSpecifications:
1) Size: 1/4" to 2"
2) Working pressure: 1000PSI/PN63
3) Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259,ISO228-1,ISO7/1
4) Type: T port or L port, PTFE seat, reduced bore, with mounting pad ISO5211
5) Material: CF8, CF8M etc.
6) Investment Casting, precision casting
7) Operation: Lever with locking device(option)
3 - Way Stainless Steel Ball Valves (With ISO Mounting Pad) 1000 WOG
1000 WOG, Reduced bore (L and T type), Threaded end.
Description:
Investment casting body / cap
Materials: ASTM A351-CF8M
Pressure temperature rating: 1000 PSI (PN63) / Pressure temperature rating: 450 deg. F
Threaded end: BSPT, NPT, DIN259, DIN2999
Blow-out proof stem
Size: 1/2" ~ 2"
Standard materials of parts| Item | Parts | Material |
| 1 | Body | CF8 / CF8M |
| 2 | Gland nut | SS304 |
| 3 | Indication plate | Aluminum |
| 4 | Stem nut | SS304 |
| 5 | Locking | SS304 |
| 6 | Handle | SS304 |
| 7 | Plastic cover | Plastic |
| 8 | Stem | SS316 |
| 9 | Stem packing | PTFE |
| 10 | Stem seal | PTFE |
| 11 | Cap | CF8 / CF8M |
| 12 | Body seal | PTFE |
| 13 | Ball | CF8M |
| 14 | Ball seal | RPTFE |
| 15 | Blind cap | CF8M |
| 16 | Blind cap seal | PTFE |
Dimensions (in mm & inch) and weight| Size | D | L | C | H | D1 | A | S | U |
| 1/2" | 12.7 | 75 | 9 | 68 | 116 | 10 | 33 | 37.5 |
| 3/4" | 16 | 85 | 9 | 73 | 116 | 10 | 39.5 | 42.5 |
| 1" | 20 | 100 | 11 | 83 | 152 | 12 | 50 | 52 |
| 1.1/4" | 25 | 115 | 11 | 89 | 152 | 12 | 50.5 | 57.5 |
| 1.1/2" | 32 | 124 | 14 | 97 | 187 | 16 | 57 | 62 |
| 2" | 38 | 147 | 14 | 106 | 187 | 16 | 65 | 75 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4" to 2" |
| Pressure: |
1000psi/Pn63 |
| Threaded: |
Bs21,B1.20.1,DIN2999/259,ISO228-1,ISO7/1 |
| Port: |
L Port,T Port |
| Bore: |
Reduce Bore |
| Mounting Pad: |
Direct ISO5211 Mounting Pad |
| Connection Form: |
Thread |
| Channel: |
Tee Type |
| Structure: |
Floating Ball Valve |
| Type: |
Tee Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
