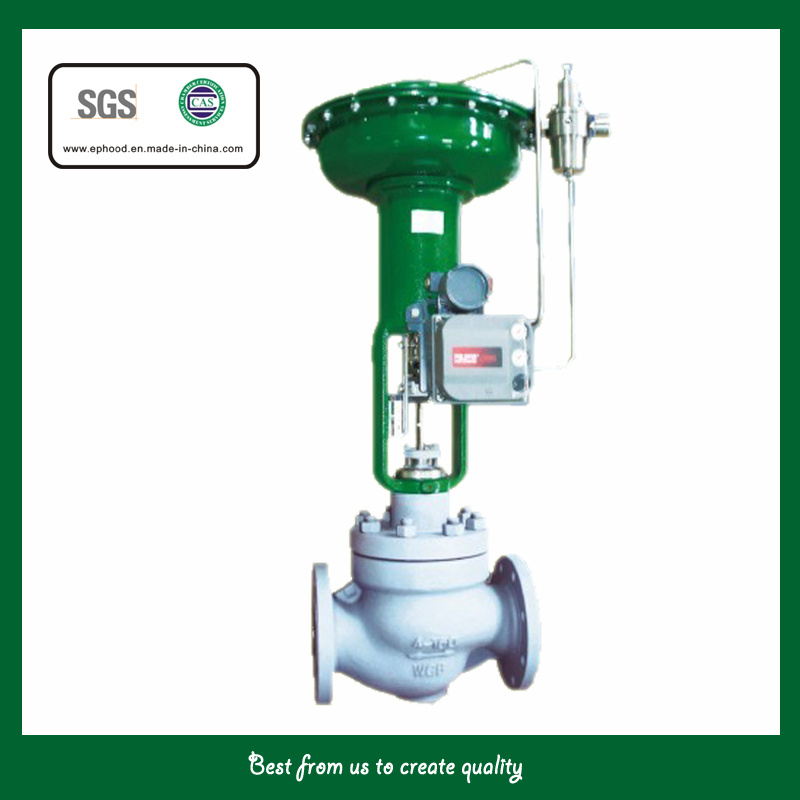

1"-16" 150lb-600lb Ma600 Series Control Valve
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
1"-16" 150LB-600LB MA600 series control valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Control |
| Pressure: |
Medium Pressure |
| Size: |
1"-16"(Dn25-Dn400) |
| Power: |
Pneumatic Actuator |
| Connection Type: |
Rtj, RF |
| Packing System: |
PTFE Packing System, Graphite Packing System |
| Working Temperature: |
250~593 Degree |
| Design Standard: |
Asme B16.34 |
Product Description
1"-16" 150LB-600LB MA600 series control valve:
Feature:
1. The stability of the valve core.
2. Large flow capacity.
3. The balance valve core structure.
4. High temperature performance of the valve when the valve is closed.
5. The pneumatic actuator is diaphragm actuator and Piston double-acting actuator, which has the compact structure and large output.
6. Save the operation expense.
7. Save the maintain expense.
|
Working temperature |
|
ANSI CLASS |
150LB |
300LB |
600LB |
|
GB/T 1048-2005 |
1.6Mpa |
2.5Mpa, 4.0Mpa |
6.3Mpa,10Mpa |
|
Seat gasket |
flexible graphite + 316 |
Stem
|
A182 F6a |
1 Cr 13 |
|
A638 660 |
Cr 15Ni25Ti2MoAIVB |
|
A182 F316H, A182 F316L |
0Cr18Ni12Mo2Ti, 0Cr18Ni12Mo2Ti |
|
A 182 F304, A182 F304L |
0Cr189Ni9, 0Cr19Ni10 |
Body Cap
|
WCB/WCC |
WCB/WCC |
|
WC6 |
WC6 |
|
WC9 |
WC9 |
|
CF8M,CF8 |
0Cr18Ni9, 0Cr19Ni10 |
|
CF3M,CF3 |
0Cr18Ni12Mo2Ti, 0Cr18Ni12Mo2Ti |
|
Packing gasket |
A276 410 |
1Cr13 |
Pcking |
import "V" PTFE |
|
flexible graphite Garlock |
|
Locknut |
A105 |
|
Gland |
316L, 304, 1Cr13 |
|
Gland Flange |
1Cr13 |
Stud(Body-bonnet) |
A193 B16 |
35CrMoV |
|
A193 B8 |
0Cr18Ni9 |
|
A193 B7 |
35CrMoA |
Nut(Body-bonnet) |
A194 7 |
35CrMo |
|
A194 8 |
0Cr18Ni9 |
|
A194 2H |
45 |
|
Middle flange gasket |
flexible graphite + 316 |
|
Stud(gland flange-gland) |
A193 B7 |
35CrMoA |
|
Nut (gland flange-gland) |
A194 2H |
45 |
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
