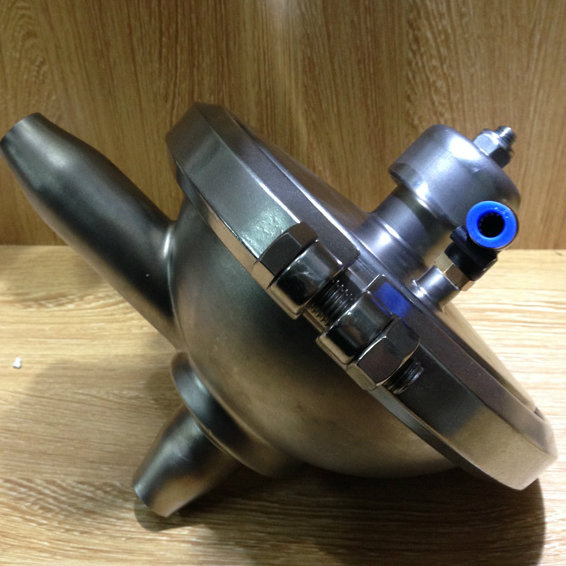

1.5" Stainless Steel Constant Pressure Control Valve
| Price: |
US $ 44-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
XS-CV0008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Pressure: |
<10bar |
| Temperature Range: |
-10 Celsius Degree-+150 Celsius Degree |
| Compressed Air Pressure: |
0~8bar |
| Max Particle Size: |
0.01mm |
| Max Oil Content: |
0.08ppm |
| Dew Point: |
Atmospheric Temperature 10 Celsius Degree or Low |
| Max Water Content: |
7.5g/Kg |
| Size: |
Dn32-Dn50,1 1/2"-2",38mm-51mm |
| Standard Available: |
DIN,3A,SMS,ISO |
| Material Quality: |
Ss304, Ss304L ,Ss316, Ss316L |
Product Description
Products Name:1.5" Stainless Steel Constant Pressure Control Valve
Application:This sery valve used to maintan a constant pressure of inlet or outlet.Connection is flexible,and with ideal mobility and cleaning.It is very easy to operate,maintenace,adjust.
Date Sheet:
| Material Pressure | ≤10bar |
| Temperature Range | -10 celsius degree-+150 celsius degree |
| Compressed Air Pressure | 0~8bar |
| Max Particle Size | 0.01mm |
| Max Oil Content | 0.08ppm |
| Dew Point | Atmospheric Temperature 10 celsius degree or low |
| Max Water Content | 7.5g/kg |
| Size | DN32-DN50,1 1/2"-2",38MM-51MM |
| Standard Available | DIN,3A,SMS,ISO |
| Material Quality | Ss304, Ss304L ,Ss316, Ss316L |
Dimension for 1.5" Stainless Steel Constant Pressure Control Valve
| DIN | 3A | SMS | ISO | A | B | H |
| DN32 | 1 1/2" | 38MM | ¢38 | 114MM | 45MM | 180MM |
| DN50 | 2" | 51MM | ¢51 | 114MM | 49MM | 180MM |
