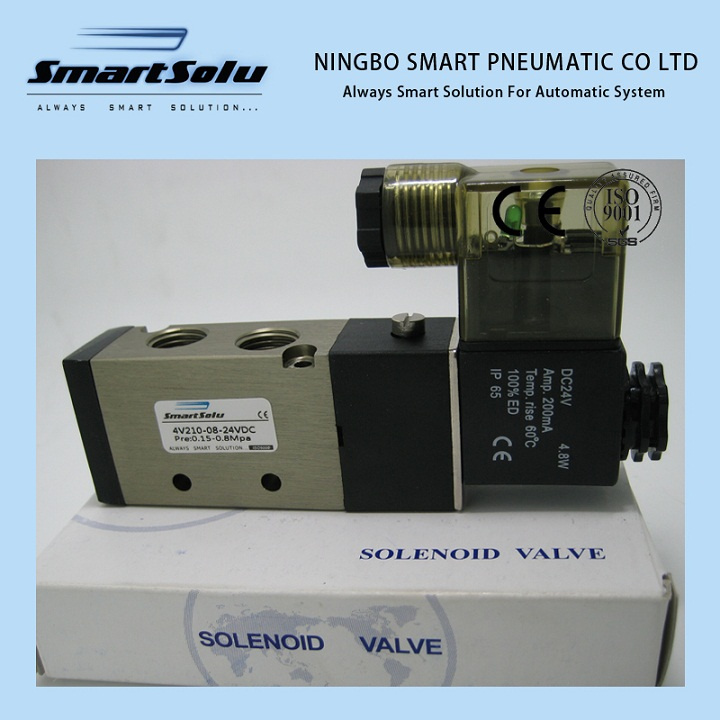

100% Tested High Quality Pneumatic Valve
| Price: |
US $ 0.2-0.5/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
4V210-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Rant: |
0.15-0.9MPa |
| Sizes: |
M5 to 2" |
| Valve Material: |
Aluminum |
| Voltage: |
12, 24, 110, 220VAC |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Industrial Usage |
Product Description
Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test
4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.
Specificaitons of 4v Series Solenoid Valve (2 Position 5 port single control)
Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) |
| Ways | 2 Position 5 Port |
| Acting Type | Direct Acting |
| Joint Size | Import=M5
Export=M5
Exhaust=M5 | Import=1/8
Export=1/8
Exhaust=1/8 | Import=1/4
Export=1/4
Exhaust=1/8 | Import=1/4
Export=1/4
Exhaust=1/4 | Import=3/8
Export=3/8
Exhaust=1/4 | Import=1/2
Export=1/2
Exhaust=1/2 |
| Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa |
| Guarantee Pressure | 1.2Mpa |
| Working Temperature | -5~60°C |
| Voltage Range | -15%~10% |
| Heat Resistant Grade | B |
| Protective Class | IP65(DIN40050) |
| Coil Type | DIN Type,Flying Leads |
| Max Acting Frequency | 5 Times/s | 4 Times/s | 3 Times/s |
