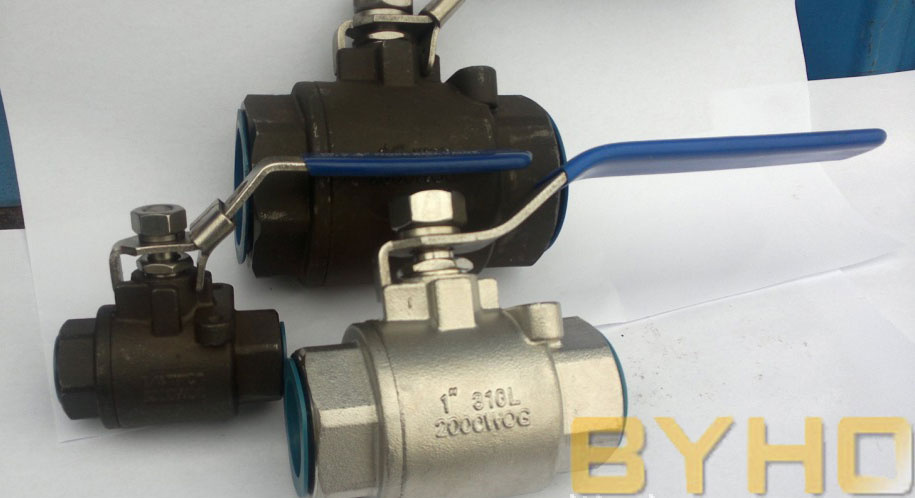

2 PC Forged Steel Float Ball Valve 2000 Wog
| Price: |
US $ 28-180/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Q11F, Q61F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Threaded End: |
NPT, BSPT, DIN259, DIN2999, ISO228 Class a |
| Temperature Range: |
-20c~232c |
| Pressure Range: |
6.4MPa, 1000 Wog, 3000psi |
| Suitable Medium: |
Water, Oil, Gas |
| Test And Inspection: |
API 598, API 6D |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
F304,F316,F321,F51 |
| Nominal Pressure: |
1000 Wog, Pn64 |
Product Description
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
1 | Body | CF8M/CF8/WCB | 8 | Packing | PTFE |
| 2 | Gasket | PTFE | 9 | Gland | SS304/SS |
| 3 | Cap | CF8M/CF8/WCB | 10 | Stem Nut | SS304/SS |
| 4 | Seat | PTFE | 11 | Handle | SS304/SS |
| 5 | Ball | SS316/SS304/SS | 12 | Spring Washer | SS304/SS |
| 6 | Stem | SS316/SS304/SS | 13 | Plastic Cover | Plastic |
| 7 | Thrust Washer | PTFE | 14 | Stem Nut | SS304/SS |
Main Dimensions
NPS | DN | D | L | W | H |
| 1/4" | 8 | 11.5 | 53.5 | 93 | 51 |
| 3/8" | 10 | 11.5 | 53.5 | 93 | 51 |
| 1/2" | 15 | 13.5 | 62 | 93 | 55.5 |
| 3/4" | 20 | 17.5 | 74 | 110 | 59 |
| 1" | 25 | 22.5 | 87 | 125 | 68.5 |
| 11/4" | 32 | 29 | 105 | 145 | 75 |
| 11/2" | 40 | 35 | 108 | 170 | 86 |
| 2" | 50 | 48 | 125 | 170 | 96 |
| 21/2" | 65 | 65 | 154 | 210 | 127.5 |
| 3" | 76 | 80 | 177.5 | 240 | 134 |
| 4" | 100 | 100 | 228 | 314 | 160 |
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
