2 Way Male Thread Motorized Shut off Brass Ball Valve
Price: |
US $ 16-28/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
90/Piece |
Pay Type: |
T/T,Paypal |
Prod Model: |
A20-T15-B2-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Electric Ball Valve |
Valve Size: |
1/4" 3/8" 1/2" 3/4'' 1" 1-1/4 Inch |
Valve Body Material: |
Brass or Stainless Steel |
Actuator Torque: |
2n.M |
Service Life: |
100000 Times |
Open/Close Time: |
5s |
Pressure: |
10 Bar |
Sealing Material: |
EPDM/FKM & PTFE |
Certification: |
CE, Rhos |
Protection Class: |
IP67 |
Material: |
Brass |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Kitchen Equipment |
Nominal Pressure: |
10 Bar |
Function: |
Shut off Valve |
Product Description

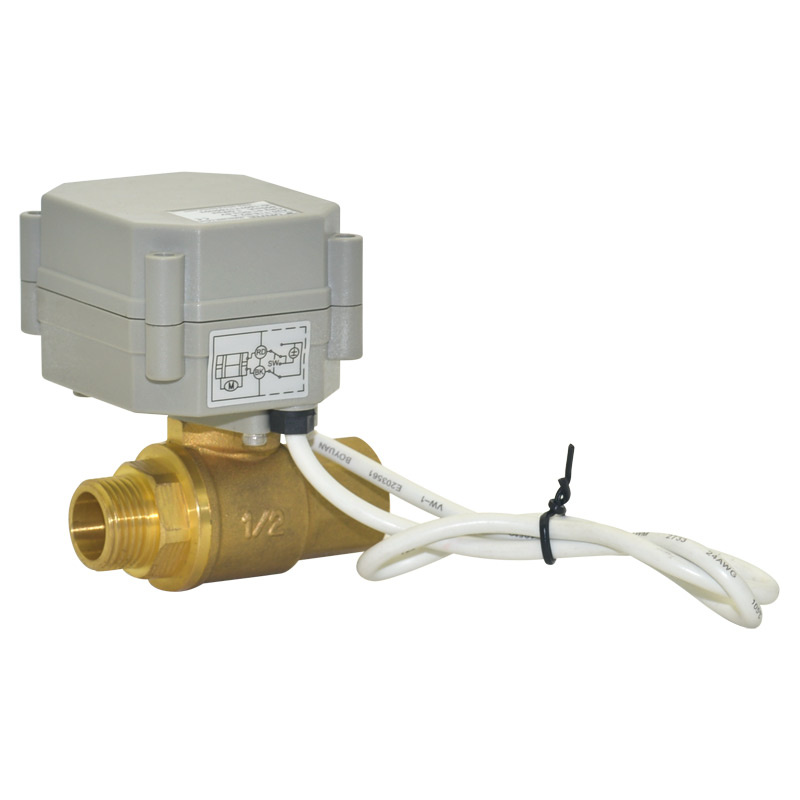

2 way 1/2'' inches motorized electric actuator ball valve(T15-B2-A)
Product characteristics:
1. Mini size and perform reliably for small equipment
2. Easy to install
3. All metel gear
4. Long life time — 70000-100000 circles
5. Floating seal structure, good sealing, protection class IP67
6. Low working current, suitable for battery supply set
7. Manual override is safe and convenient
8. Passed CE certification and NSF61-G certification
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture irrigation equipment
5. Drinking water equipment, water heater, washing machine, ahw etc.
Product size | 1/2" (NPT/BSP 1/4" 3/8" 3/4" 1" 1-1/4" ) Optional |
Maximum working pressure | 1.0MPa |
Circulation medium | Fluid, air |
Rated voltage | DC5V DC12V DC24 DC7-35V AC/DC9-35V AC/DC110-230V Optional |
Wiring control methods | CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-03 CR7-04 Optional |
Working current | ≤500MA |
Open/close time | ≤5S |
Life time | 70000 times |
Valve Body material | Brass |
Actuator material | Engineering Plastics |
Sealing material | EPDM & PTFE |
Actuator rotation | 90 degree |
Cable length | 0.5M, 1.5M |
Max. torque force | 2 Nm |
Environment temperature | -15centigrade - 50 centigrade |
Liquid temperature | 2centigrade - 90centigrade |
Manual override | No |
Indicator | No |
