| Prod Model: |
DACY-22.5/14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Configuration: |
Portable |
| Power Source: |
Diesel |
| Type: |
Rotary |
| Lubrication Style: |
Lubricated |
| Application: |
High Back Pressure Type |
| Mute: |
Mute |
| Diesel Engine: |
Global Warranty Cummins Brand |
Product Description

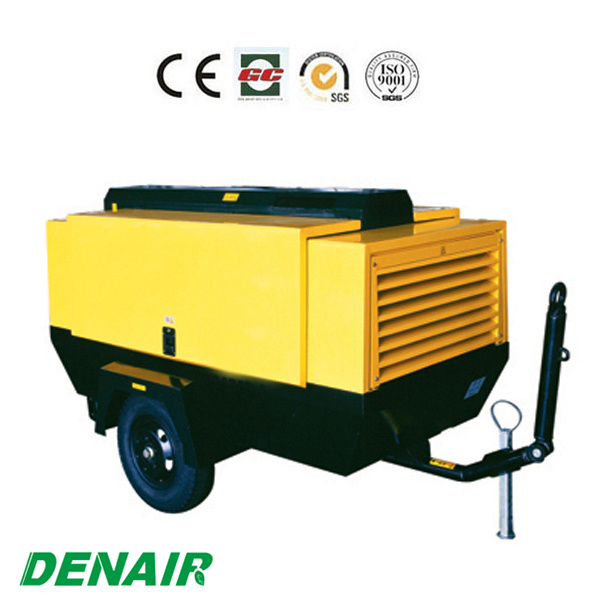

200psi Diesel Air Compressor Mobile For Sale:
1. Famous brand diesel engine: Cummins
2. Pass CE, ISO9001 Quality Certification
3. One of 3 biggest mobile air compressor manufactures in China
4. Complete before-on-after sales service
5. Immediate reply or solution by email or call
--- Easy operation and maintenance
Various instruments and security system configuration and the operation panel for valve, all of them are on the same side of the machine, easy operation. All more lights state clearly and also equipped with automatic stop and alarm lamp.
---Humanized design
Suit different traction equipment
Lift stem greatly reduce assignment strength
Handle and feet are convenient maintenance
--- Appearance and corrosion resistance
The shutter was covered; Make the equipment has better ventilation cooling and beautiful appearance.
High quality cold-rolled steel plate and bake lacquer ensure durability and excellent anticorrosion
|
Model |
DACY-22.5/14 |
|
Air compressor |
style |
|
Screw compress oil cooled |
|
Air delivery |
m3/min |
22.5 (800cfm) |
|
Working pressure |
bar |
14 (200psi) |
|
Drive way |
|
Coupling direct connection Diesel driven |
|
Oil and gas storage capacity |
L |
196 |
|
Lubrication oil capacity |
L |
137 |
|
Engine |
Manufactory |
|
Cummins |
|
Model No. |
|
6LTAA8.9 |
|
Style |
|
Water-cooling four-cycle, direct spray |
|
Numbers of cylinders |
|
6 |
|
Cylinder diameter |
mm |
114 |
|
stoke |
mm |
145 |
|
Rated Power |
kw |
239 |
|
rated speed |
rpm |
2200 |
|
no-load speed |
rpm |
1400 |
|
Lube capacity |
L |
24 |
|
cooling capacity |
L |
55 |
|
Storage battery |
|
6-QW-200Ah× 2 |
|
Fuel tank capacity |
L |
380 |
|
Unit |
Length(whole machine) |
mm |
4300 |
|
Width |
mm |
2100 |
|
Height |
mm |
2700 |
|
N. W |
Kg |
5000 |
|
vent valve exit |
|
1-G2" , 1-G1" |
In 1875, Germany Denair launched the first refrigerant air compressor in the world,
In 1998, Germany Denair set up a representative office in Shanghai, China.
In 2006, Shanghai Denair Compressor Co., Ltd and Denair (Shanghai) Compressor Manufacturing Co., Ltd were established to start to produce and sell air compressor in Chinese market.
In 2009, Denair set up offices in main cities for China and pioneered 4S sales and service model in Compressor industry.
In 2010, Denair set up overseas business department and began to export air compressors and mining equipments to the world. Until now, Denair products have exported to more than 60 countries especially such as South America, Southeast Asia, Middle East, Africa and so on.
In 2013, Denair made an expansion plan to build 12 offices in the world within 5 years. Recently we have had the first overseas office---Surabaya, Indonesia office.
In 2014, Denair prepares to invest and build a new factory which covers an area of approximate 20000 square meters in Jiangsu province. It is expected to be completed within two years.
