200X Pressure Reducing Valve

Name: 200X Pressure Reducing Valve
Brand: Valve Industry
SKU: 721528635
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Huhang Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	200X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn50-Dn450:	Pn10/Pn16/Pn25

Product Description

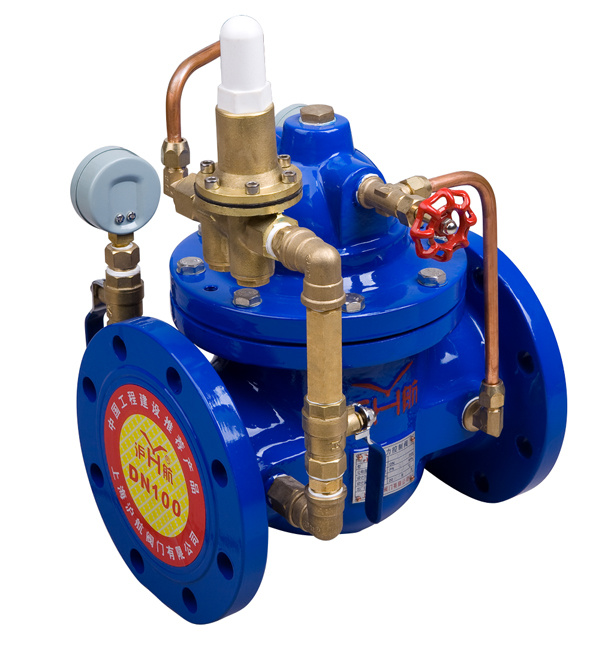

200X pressure reducing valve

Product Simple Specification

The valve maintains a preset downstream pressure, regardless of upstream pressure or flow fluctuation. The main valve is controlled by a pilot valve, which makes the main valve modulating to maintain the downstream pressure.

Product Specification

The 200X pressure reducing valve is an intelligent valve that uses the self energy of the medium to regulate and control the pressure in pipes. The 200X pressure reducing valve can be used in domestic water supply,fire fighting water supply and other industrial water supply systems. The outlet pressure of the main valve can be regulated through the adjustment of the pressure reducing valve; the outlet pressure does not vary along with the inlet pressure and inlet flow. Accordingly, the outlet pressure can be safely and reliably maintained at a preset value and the preset value can be adjusted according to actual needs to obtain your pressure reducing goal. This valve is precise in pressure reduction, stable in performance, safe, reliable, easy, convenient to install and adjust and offers a long service life.Pressure Rating: PN10. PN16. PN25/Class150Size Range: DN20mm-DN800mm (3/4" - 32")Test and inspection: GB/T 13927 API598

quality and inspection:
Regular check on production line at each working procedure, and one special inspector inspecting the goods in random during the period time of production.regular performance check on finished goods

production step:
1.purchasing the material and forged the semi-products
2.processing the semi-products in works shop
3.assembling the goods
4.testing the sealing in pressure and checking quality of the goods
5.package
6.delivery the goods on time

pakage
1.the pakage standard:inside PVC bag and small box and standard export carton
2.if you have any special requirements pakage,we can pakage as per your artworks.

Primary Competitive Advantages:
1) We're professional, with several years experience in producing kinds of brass valves and brass fittings.
2) Products are of good quality, with reasonable prices.
3)Our style:Promise must be kept and action must be prompt and fruitful.
Our business idea:All for customers and everything from innovation

DN		25	32	40	50	60	80	100	125	150	200	250	300	350	400	450	500	600	700	800
L		160	180	200	205	215	240	290	325	355	458	530	615	686	762	864	914	1067	1300	1450
PN10	D	115	135	145	160	180	195	215	245	280	385	390	440	500	585	615	670	780	895	1010
	D1	85	100	110	125	145	160	180	210	240	295	350	400	460	515	565	620	725	840	950
PN16	D	115	135	145	160	180	195	215	245	280	335	405	480	520	580	640	705	840	910	1020
	D1	85	100	110	125	145	160	180	210	240	295	355	410	470	525	585	650	770	940	950
PN25	D	110	135	145	160	145	195	230	270	300	360	425	485	550	610	660	730	840	955	1070
	D1	85	100	110	125	180	160	190	220	250	310	370	430	490	550	600	660	770	875	990
H		172	172	265	265	310	350	460	520	570	695	780	595	1025	1080	1080	1135	1270	1460	1640
H1		106	103	210	210	215	245	305	365	415	510	560	658	696	610	610	665	725	865	975

Welcome to China Huhang valve group!
Huhang valve group is located in Jinshan district in Shanghai of China, which is a specialized in manufacturing and distribution for valves.
Since its establish in 2001, Huhang has success in built production base in Tianjin and Fujian. Now, Huhang is developing "Garden style production base of valve ", the construction area reach up to 200000 square meters.

HUHANG VALVE is a specialized manufacturer of industrial steel valve according to API, ASME, EN, ISO, JIS, DIN, BS, GOST & GB standards. The product includes ball, gate, check, globe, plug, butterfly, safety, oil field and other special valves that are applied broadly in petroleum, chemical, metallurgical and power generation industries. As the reliable supplier on quality and service, HUHANG VALVE won great reputations from the customers in Europe, America, Japan, Middle East, South East Asia, Russia and other countries.

HUHANG VALVE launched its quality management and safety system as ISO 9001, API 6D, API 607, CE/PED approvals for the products.

The main tech-data of product listed as below, where any special requirement can be handled by our dedicated engineering team for various working conditions.

Product range: Ball, gate, check, globe, plug, butterfly, safety, oil field and other special valves. Among 35% and 30% in total output by ball valve and gate valve respectively. Metal seated ball valve, bellow sealed valve and wafer check valve are the featured products.
Pressure range: Class150~Class2500, PN10~PN420;
Size range: NPS1/2~NPS80;
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, hydraulic-pneumatic etc.
Connection End: Flanged, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, etc.
Materials (forging): A105, LF1, LF2, F304, F304L, F316, F316L, F11, F22, F6, F51, F316H, F321, F347, etc.

Huhang VALVE is dedicated to supplying high quality valve solutions ifor global industries since its inception in 2001. In the new century, Huhang is facing a historical development opportunity and furious competition. By holding the persistence improving in management and product quality, HUHANG will provide higher and better service to you.
