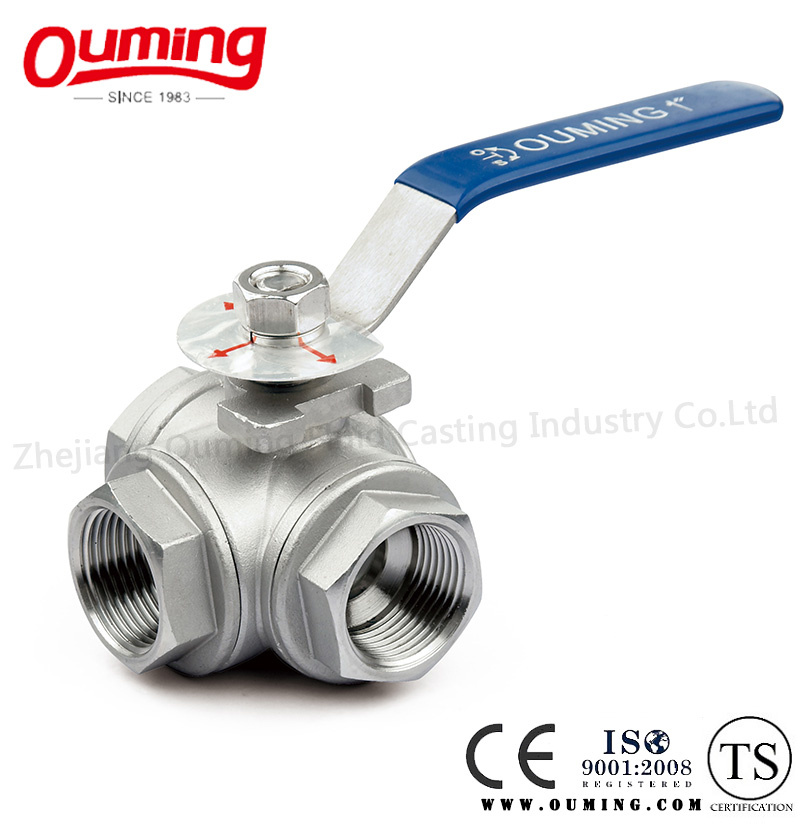

316L Three Way Threaded End Ball Valve
| Price: |
US $ 8-80/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Q15F-16P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4"-2" |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Tee Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000W.O.G |
| Function: |
Cut-off Valve |
Product Description
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
2). Material: 304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3).Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+150° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999
8). Type: T port or L port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). Operation: Manual
11). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
12). Design Standard: ASME B16.34
13). Inspection and Testing: API 598
We will give you a reply within 24 hours after receiving your inquiry

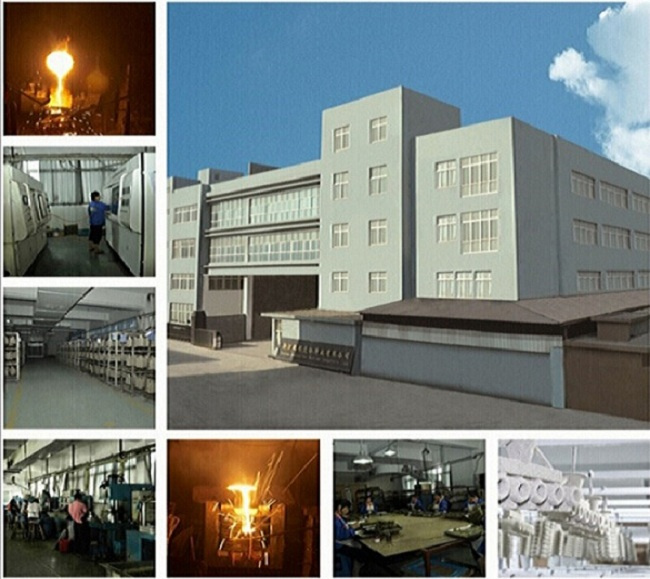

Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.
We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.
We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
