| Price: | US $ 2/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | 3V110 4V210 2V025-08 4V410 3V210 4V310 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/8" 1/4" 3/8" 1/2" |
| Connection Form: | Thread |
| Type: | Direct Acting |
| Valve Structure: | Direct Action Diaphragm Structure |
| Power Supply: | DC Solenoid Valve |
| Application: | Household Usage |

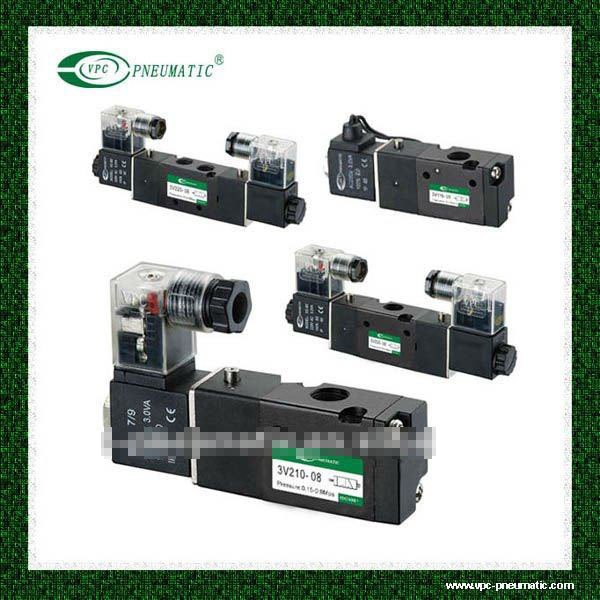

3V series solenoid valve have single acting and double acting types. Single acting solenoid valves are mainly used in controling the single acting type cylinder, size from M5 to 1/2''. According to the difference of the flow, valve body have many types are available. Din connector and flying leads types, different superficial treatment, G, NPT PT etc are available.

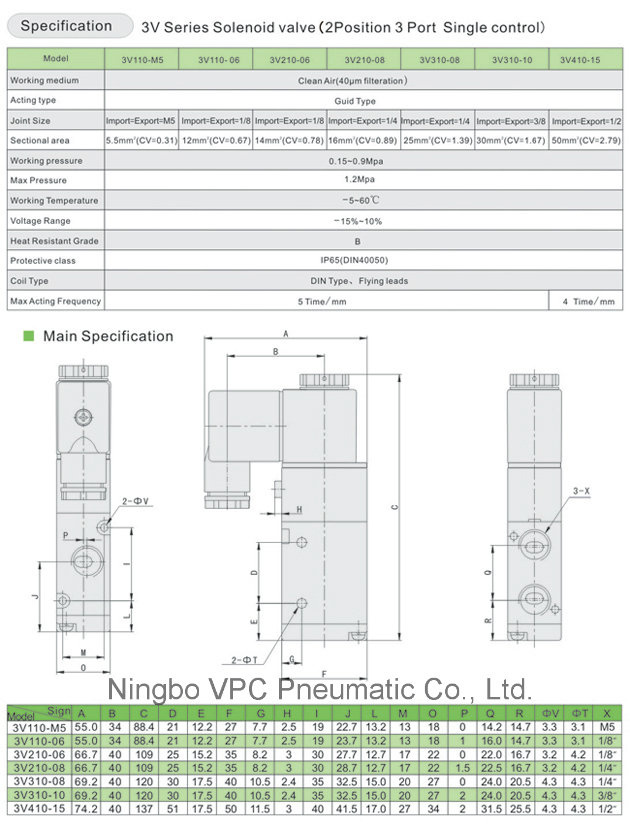

Specificaitons of 3v Series Solenoid Valve (2 Position 3 port single control)
| Model | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 | 3V410-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
| Ways | 2 Position 3 Port | ||||||
| Acting Type | Direct Acting | ||||||
| Joint Size | Import=M5 Export=M5 | Import=1/8 Export=1/8 | Import=1/4 Export=1/4 | Import=1/4 Export=1/4 | Import=3/8 Export=3/8 | Import=1/2 Export=1/2 | |
| Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa | ||||||
| Guarantee Pressure | 1.2Mpa | ||||||
| Working Temperature | -5~60°C | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistant Grade | B | ||||||
| Protective Class | IP65(DIN40050) | ||||||
| Coil Type | DIN Type,Flying Leads | ||||||
| Max Acting Frequency | 5 Times/s | 5 Times/s | 4 Time | ||||
