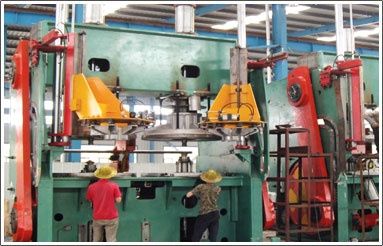

45" Bom Twin Tyre Curing Platen Mechanical Press
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
45"(1145) |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Tire Shaping and Curing Press |
Product Description
This press is used for vulcanization of bias tyre and all steel radial tyre with double half-moulds and segmented moulds, which can meet tyre loading, shaping, vulcanizing and unloading automatically. Bias tyre can be cooled automatically with post cure inflator.
Complete with:
Automatic loading arms
Unloading arms
Allen Bradley PLC control
Platen and steam chamber temperature control
Two position double cycle post cure inflator
Completely wired and piped with diaphragm valves
Centralized lubrication system
Mains:
Steam
230psi; 100 psi shaping steam
Air
80 psi; 40 psi for instruments and 20 psi for controllers by means of internal regulator
Water
250 psi hydraulics; 70 psi vacuum generation
|
Vulcanized tire type |
steel or semi-steel radial tire, bias tire |
|
Sulfide media |
Nitrogen or steam |
|
Heating type |
Hot plate |
|
Robot type |
Double or single column guides |
|
Number of mould |
2 |
|
Internal diameter of the insulation cover |
Φ1145mm |
|
central body structure |
A BOM RIB |
|
Maximum clamping force |
1720kN×2 |
|
Model hight |
230-490mm |
|
Tire ring Diameter |
12”-18” |
|
maximum thickness of the tire curing |
360mm |
|
Maximum height of tire blank |
550mm |
|
Maximum outdide diameter of the tire curing |
Active mould |
Φ800mm |
|
Two Piece Moulds |
Φ850mm |
|
Theory on / off time mode |
28s |
|
maximum weight of robot crawling |
60kg |
|
maximum weight of mold |
2500kg |
|
motor Power |
11kW |
|
Maximum external pressure curing medium |
1.4Mpa |
|
Maximum pressure curing medium |
2.8Mpa |
|
Dynamic water pressure |
1.8-2.1Mpa |
|
Dynamic air pressure |
0.7Mpa |
|
Control air pressure |
0.25-0.35Mpa |
|
PCI Inflation pressure |
0.7Mpa |
|
PCI for rim width |
100-285mm |
|
Total weight |
Approx 30T |
|
overall dimensions (LxWxH) |
Approx 4100x3700x3800mm |
Qingdao Biz International Trade Co., Ltd. is a professional manufacturer and exporter of rubber and plastic machinery in China. Through over ten years' efforts, we have built up complete kinds of products, bought up a lot of experienced technicians and skilled workers with proficient technology. During the past years, we have produced and exported over10000 sets of machines and equipment to clients from all over the world, and helped them obtain great profit and grasped wonderful business opportunities.
We mainly produce and supply the following goods:
Rubber machines: plate vulcanizing presses, vacuum presses, two-roller mixing mills, sheeting mills, refining mills, cracking mills, rubber & plastic dispersion mixers, internal mixers, hot & cold-feeding rubber extruders, rubber calender lines, batch-off coolers, tire production machines, rubber conveying belt production lines, rubber extrusion microwave vulcanizing production lines, rubber salt-bath vulcanizing production lines and other machines
Plastic machines: various kinds of plastic pipe extrusion lines, various kinds of window profile extrusion lines, various kinds of plastic sheets, boards and film extrusion lines, various kinds of single and twin screw extruders and other related goods
Rubber products: all kinds of sealing rings, belt, strips, tubes, and tires
Chemical materials: carbon black, and reclaimed rubber
We can design and produce rubber products and non-standard machines and equipment according to the drawings and requirements of clients.
We have built up a good reputation in international markets and in rubber and plastic industry fields.
It is always our goal to provide satisfactory service to our customers with reasonable price, high quality product, accurate delivery time and all necessary assistance.
We look forward to hearing from you and developing together with you.
