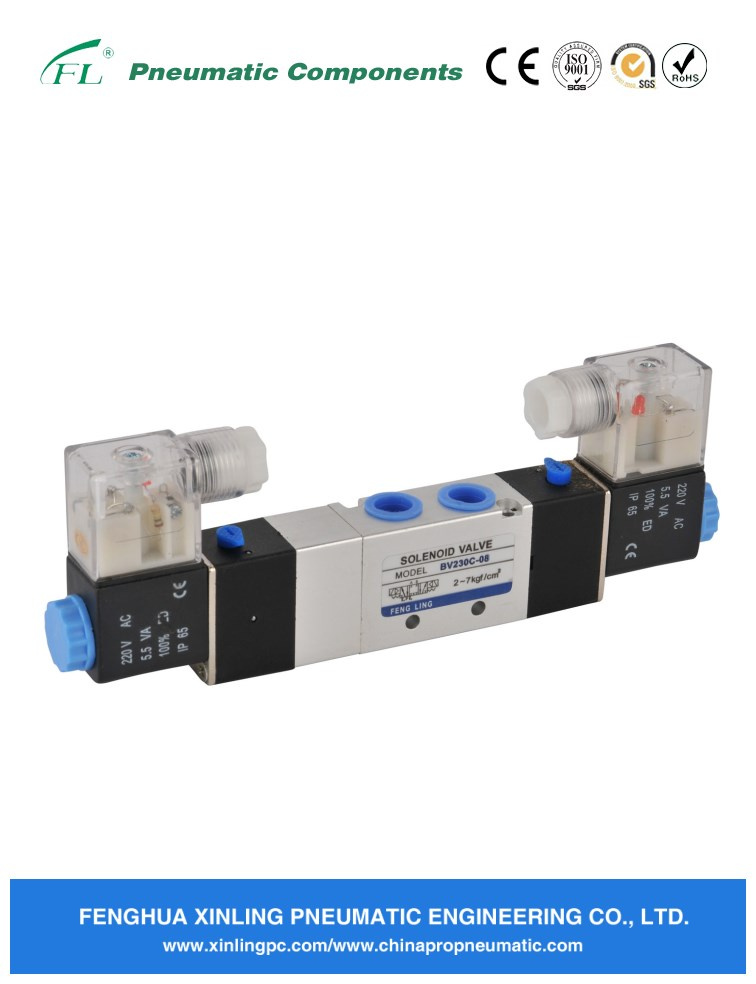

5/3 Way Solenoid Valve
Price: |
US $ 6/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
4V310/4V320/4V330 |
Operation Type: |
Inside Pilot Type |
Fluid Medium: |
40 Micron Filtered Air |
Position And Way Number: |
Two/Three Position Five Way |
Working Pressure: |
0.15--0.8MPa(21--114psi) |
Proof Pressure: |
1.2MPa(174psi) |
Working Temperature: |
5--50 Degree |
Port Size: |
Air Inlet=Air Outlet=Exhaust=G1/8'' |
Highest Action Frequency: |
5 Cycles/Second |
Shortest Excitation Time: |
0.05 Second |
Type: |
Direct Acting |
Connection Form: |
Thread |
Valve Structure: |
Direct-Acting Piston Structure |
Power Supply: |
AC Solenoid Valve |
Application: |
Household Usage |
Material: |
Aluminum |
Product Description
Production Description:4V Series Solenoid Valves
Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.

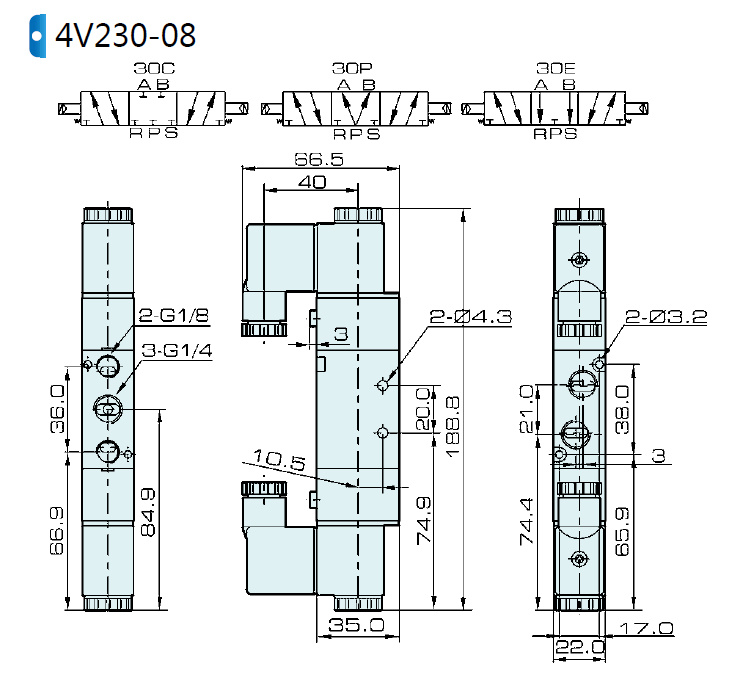

Dimension of 4V Series Solenoid Valves:

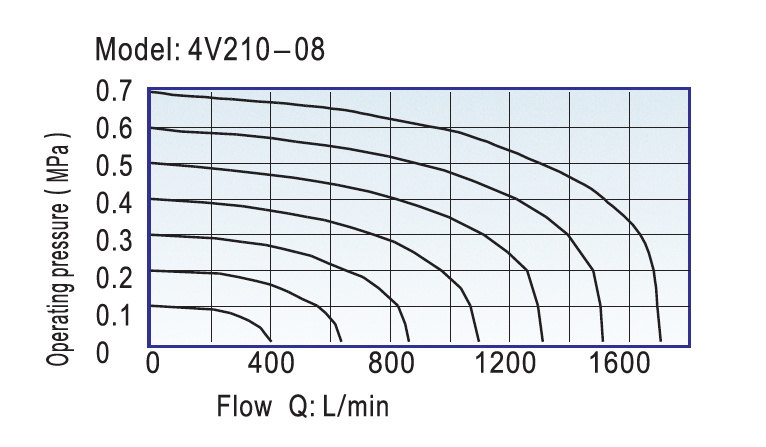

Flow Chart of 4V210 Solenoid Valves:

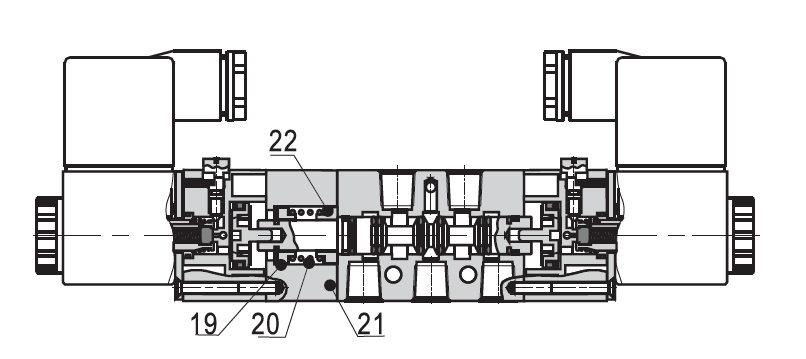

Structure of 4V200 Series Solenoid Valves:

Structure Code:
No. | Item | No. | Item |
1 | Connector | 12 | Spool Spring |
2 | Coil Net | 13 | Bottom Cover Gasket |
3 | Coil | 14 | Spool O-Ring |
4 | Armature | 15 | Spool |
5 | Fixed Plate | 16 | Piston O-Ring |
6 | Piston | 17 | Override Spring |
7 | Pilot Kit | 18 | Manual Override |
8 | Body | 19 | Spring Holder |
9 | Wear Ring | 20 | Return Spring |
10 | Bottom Cover | 21 | Side Cover |
11 | Fixed Screw | 22 | Spring Holder |
