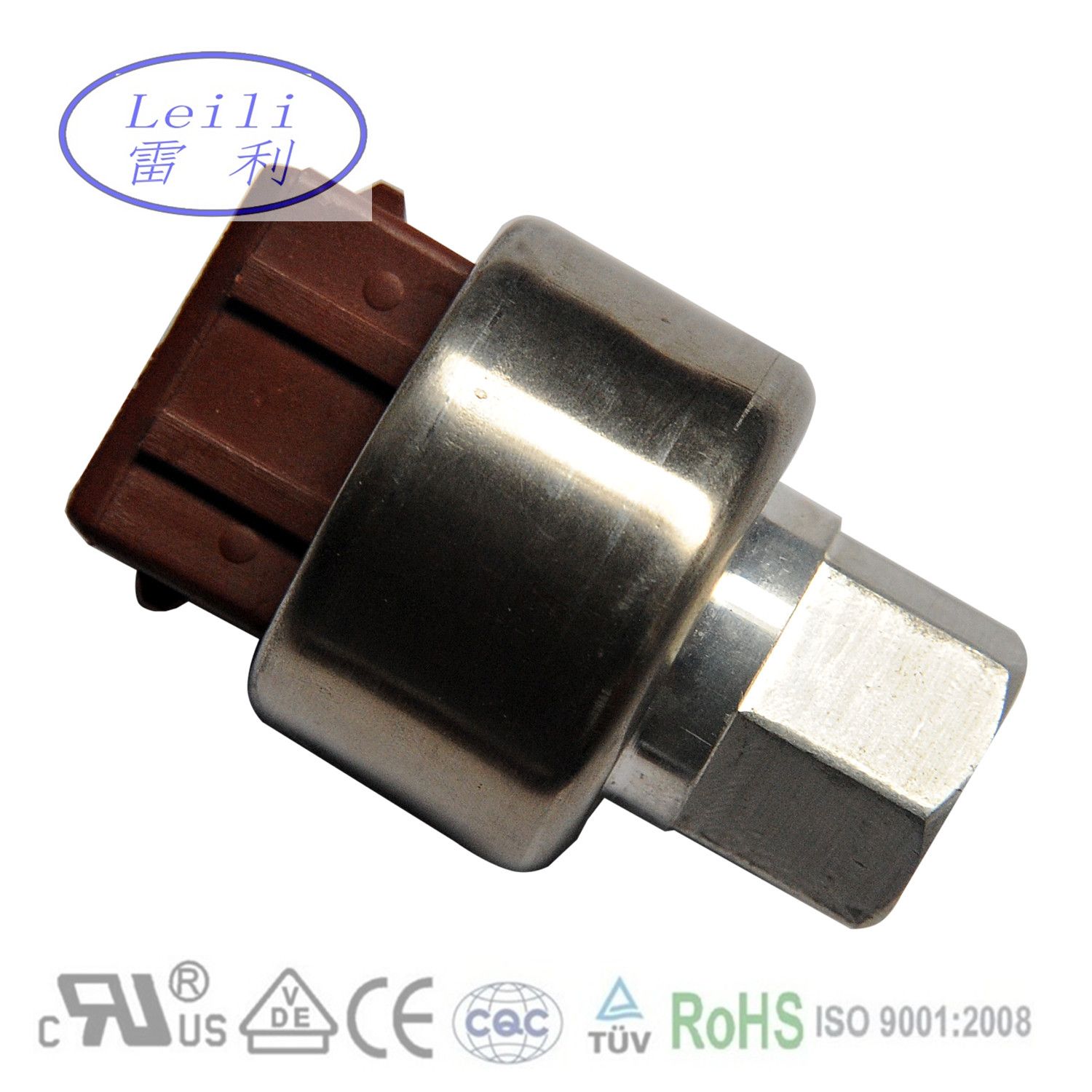

| Prod Model: |
QYK-331 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread: |
3/8-24unf Male (or as Per Your Need) |
| HP Off: |
3.14MPa |
| Lp On: |
0.196MPa |
| Applicable Medium: |
R-134A |
| Type: |
Electronic |
| Contact: |
Normally Open |
| Explosion-proof Type: |
Intrinsically Safe |
| Application: |
Vehicles |
| Brand: |
Leili |
| Certification: |
VDE |
Product Description
Quality Control of the HVAC Pressure Switch:
We will test all the Air Conditioning Pressure Switches before packing to make sure all switches reach the standard.
Certificate:
UL RoHs VDE SGS CQC ISO9001
Packaging & shipping:
Packaging -- neutral packaging.
Port: Shanghai / Ningbo Port (2 hours' dirve)
Shipping -- Sample via DHL/ TNT (7 work days). Mass cargo via sea cargo (Normally within 35 days).
Delivery time --25 days after received the deposit.
Payment --30% T/T, L/C, EXW
Advantage:
1. Original /OEM quality and competitive price
3. Professional work team with over 20 years' experience.
4. Strong and standard package
5. Fast and safe delivery
Application:
Residential, commercial, automobile air-conditioner and ice maker etc.
Hydraulic pressure and steam pressure control system of all kinds of air compressor, equipment or tool as well as agricultural machine.
Designed Parameter:
Working pressure range: 3~700PSI(0.02Mpa~4.8Mpa)
Burst Pressure: 5000PSI
Ambient temperature: -30º C~+80º C
System medium temperature: -50º C~+120º C
Life cycles under the rated electric current: 30, 000 times, 50, 000 times and 100, 000 times optional
Electrical Rating: At 24Vac,
Normal electric capacity: 125VA
At 120/240Vac, normal electric capacity: 375VA
Terminal to outer shell: AC2000V/S
| NO. | Name | HVAC Pressure Switch |
| 1 | Setting range of pressure range | 3-667PSI/0.02-4.6mpa |
| 2 | Tolerance range of pressure switch | 1.45-14.5PSI/0.01-0.1mpa |
| 3 | Contact form | Normal open, close |
| 4 | Contact capacity | AC240V,3A,AC120V,6A |
| 5 | Contact resistance | ≤ 50 MΩ |
| 6 | Insulation resistance | ≥100 MΩ(between terminal and housing) |
| 7 | Dielectric strength | No breakdown and flashing in 1min at AC1500V |
| 8 | Maximum burst pressure | No burst phenomenon in 1min at ≤5000PSI(34.5MPA) blast pressure |
| 9 | Gas tightness | No leakage (4.8mpa/1min) |
| 10 | Adaptive temperature | -30-80 degree |
| 11 | Life cycle | ≥100000 times |
| 12 | Over pressure Test | Increase to 10mpa.No burst and leakage in 10mins |
