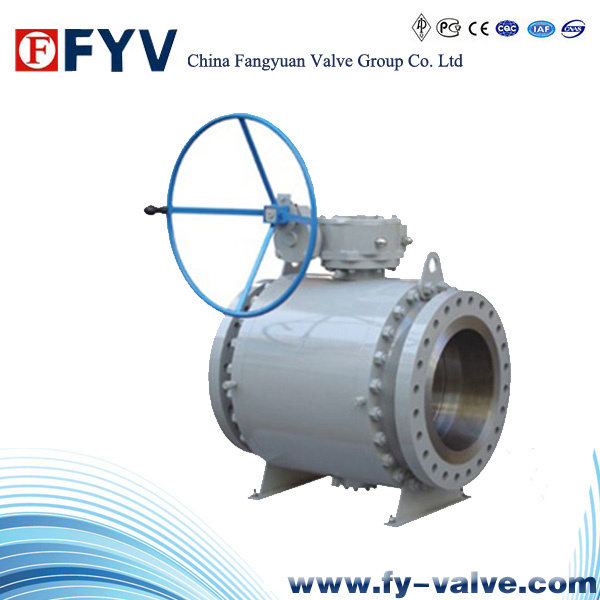

A105 Forged Steel Flanged Trunnion Ball Valve
Price: |
US $ 99-299/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Forged Steel A105 3pc Trunnion RF Ball Valve 16 Inch Class 150 300 600 900 1500 2500
Cast steel fixed ball valve
Bolted cover, Two-piece or three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
Astm a216 wcb, a351 cf8, a351 cf8m, A351 cf3, a351 cf3m, a351 cn7m
Standards compliance
Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection: 2~~48~to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D
Fangyuan Valve specialized in valve & related product; Please give us a chance for quotation. You will be satisfied.
Fangyuan Valve are a leading company with over 16 years' experience in valves manufacturing and export business.
Forged steel trunnion mounted ball valve features & specifications
Size: 2"~40" | Design | ASME B16.34/API 6D |
Class: 150~2500Lb | Face to Face | ASME B16.10/API 6D |
Three Pieces Forged Steel Body | End to End | ASME B16.10/API 6D |
Trunnion Mounted Ball, Full & Reduced Bore | End Flange | ASME B16.5 |
Anti-Static Device | BW End | ASME B16.25 |
Blow-out Proof Stem | Test | API 6D |
Double Block and Bleed | Fire Safe Test | API 607/API 6FA |
Fire Safe Design | Special | NACE MR-01-75 |
Emergency Sealant Injector ( 6" & Larger) |
|
|
Vent Valve, Drain Valve ( 6" & Larger) |
|
|
Lifting Lugs & Supporting Feet ( 8" & Larger) |
|
|
Seat Pocket Overlay ( On Request) |
|
|
Seals Area Overlay ( On Request) |
|
|
Forged steel trunnion mounted ball valve material specifications
No. | Part | Material |
1 | Bonnet | ASTM A105? A182-F304, F316, F316L, F304L, F51 |
2 | Seat Spring | Inconel X-7505? S.S.304? S.S.316 |
3 | Seat | PTFE RTPFE PEEK PPL |
4 | Seat Injection | 1020+Zn A182-F304, F316, F316L |
5 | Body | ASTM A105 A182-F304, F316, F316L, F304L, F51 |
6 | Screw | ASTM A193-B7, B8 |
7 | Top Flange | ASTM A105 A182-F304 |
8 | O-ring | NBR Viton |
9 | Key | 1045 A182-F304, F316, F316L, F304L |
10 | Stem | ASTM A105+ENP A182-F6, F304, F304L, F316, F316L,17-4PH, F51 |
11 | Vent Valve | 1020+Zn? A182-F304, F316, F316L |
12 | Stem Injection | 1020+Zn A182-F304, F316, F316L |
13 | Sliding Bearing | Stainless Steel+PTFE S.S.316+PTFE |
14 | Thrust Washer | PTFE |
15 | Seat Ring | ASTM A105+ENP A182-F6, F304, F304L, F316, F316L, F51 |
16 | Stud | ASTM A193-B7, B7M, B8, B8M |
17 | Nut | ASTM A194-2H, 2HM, 8, 8M |
18 | Gasket | PTFE S.S.304+Graphite S.S.316+Graphite |
19 | Ball | ASTM A105+ENP ASTM A182-F304, F316, F316L, F6, F51 |
20 | Lower Gasket | PTFE |
21 | Drain Valve | 1020+Zn A182-F304, F316, F316L |
22 | Antistatic Spring | Stainless Steel S.S.316 |
23 | Trunnion | ASTM A105+ENP A182-F6, F304, F304L, F316, F316L, F51 |
24 | Screw | ASTM A193-B7, B8 |
25 | Seat Sealing | Graphite |
26 | Gland Gasket | S.S.304+Graphite |
27 | Bottom Cover Gasket | S.S.304+Graphite |
Prod Model: |
FYV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Class: |
150~2500 |
API 6D: |
ANSI B16.5 |
Size: |
2''-28'' |
O-Ring Sealing: |
PTFE,NBR,Rptfe |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Material: |
Stainless Steel |
Application: |
Household Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
