Home Valve Products Air Operation Pump Air Driven Pneumatic Diaphragm Pump Liquid Pump (Qby-65)
Air Operation Pump Air Driven Pneumatic Diaphragm Pump Liquid Pump (Qby-65)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
QBY-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hs: |
8413501090 |
| Power: |
Pneumatic |
| Material: |
Plastic |
| Valve Body Type: |
Diaphragm |
Product Description
Advantages:- Never deadstop (three-way pilot type air-distributing valve)- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance- Lube freePump Information:Material quality:
Pump body: Aluminum
Diaphragm: Santoprene, Hytrel, Teflon, Viton, EPDM, Buna-N
Valve ball: Teflon, stainless steel, santoprene.
Valve seat: SS304;SS316
Center block: PP
Weight:
Aluminum pump: 4.5 kg

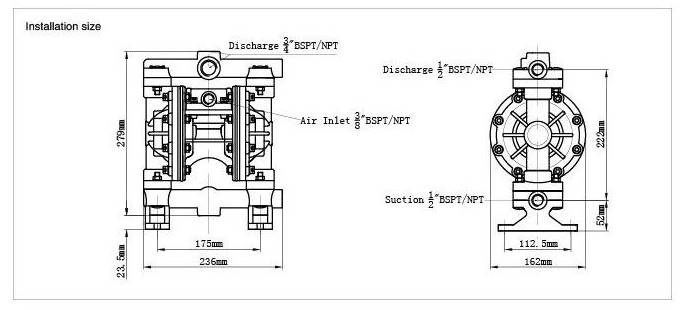

Installation size:
HS CODE: 8413501090Packing Status:- Air order: water-proof carton box- Sea order: wooden cases, fumigation free
|
Model |
Capacity(m3/h) |
Head(m) |
Pressure |
Suction lift(m) |
Air consumption(m3/min) |
|
QBY-10 |
0-0.8 |
0-50 |
7kg/cm2 |
5 |
0.3 |
|
QBY-15 |
0-1 |
0-50 |
7kg/cm2 |
5 |
0.3 |
|
QBY-25 |
0-2.4 |
0-50 |
7kg/cm2 |
7 |
0.6 |
|
QBY-40 |
0-8 |
0-50 |
7kg/cm2 |
7 |
0.6 |
|
QBY-50 |
0-12 |
0-50 |
7kg/cm2 |
7 |
0.9 |
|
QBY-65 |
0-16 |
0-50 |
7kg/cm2 |
7 |
0.9 |
|
QBY-80 |
0-24 |
0-50 |
7kg/cm2 |
7 |
1.5 |
|
QBY-100 |
0-30 |
0-50 |
7kg/cm2 |
7 |
1.5 |
Wenling Toplong Electrical&Mechanical Co., Ltd. is a professional air compressor, Screw compressor, Gas compressor and pump design, production and marketing enterprise. Since its foundation, the spirit of "scientific and technological innovation, customer first, the pursuit of excellence, the purpose enterprises continue to grow; Formation of a "scientific management, professional organizations, and improve sales, service standardization"of high-quality team, now has evolved into a collection development, production, operation and service for the integrated enterprise. The company has established a set of design, development, production and manufacturing to services, strict quality assurance system. Full implementation of ISO9001 quality management system, the implementation of IEC product standards, all production processes are under control. Product quality, innovative design, improve service, business decisions rigorous, sales network throughout the domestic market, by the majority of users praise. The company advocates customers first, to provide users with high-quality, aesthetics, environmental protection, durable, stable, low failure rate, cost-effective products and good service. Choose us, you would be proud of your.
Wenling Toplong Electrical&Mechanical Co., Ltd. is a professional air compressor, Screw compressor, Gas compressor and pump design, production and marketing enterprise. Since its foundation, the spirit of "scientific and technological innovation, customer first, the pursuit of excellence, the purpose enterprises continue to grow; Formation of a "scientific management, professional organizations, and improve sales, service standardization"of high-quality team, now has evolved into a collection development, production, operation and service for the integrated enterprise. The company has established a set of design, development, production and manufacturing to services, strict quality assurance system. Full implementation of ISO9001 quality management system, the implementation of IEC product standards, all production processes are under control. Product quality, innovative design, improve service, business decisions rigorous, sales network throughout the domestic market, by the majority of users praise. The company advocates customers first, to provide users with high-quality, aesthetics, environmental protection, durable, stable, low failure rate, cost-effective products and good service. Choose us, you would be proud of your.
