| Prod Model: |

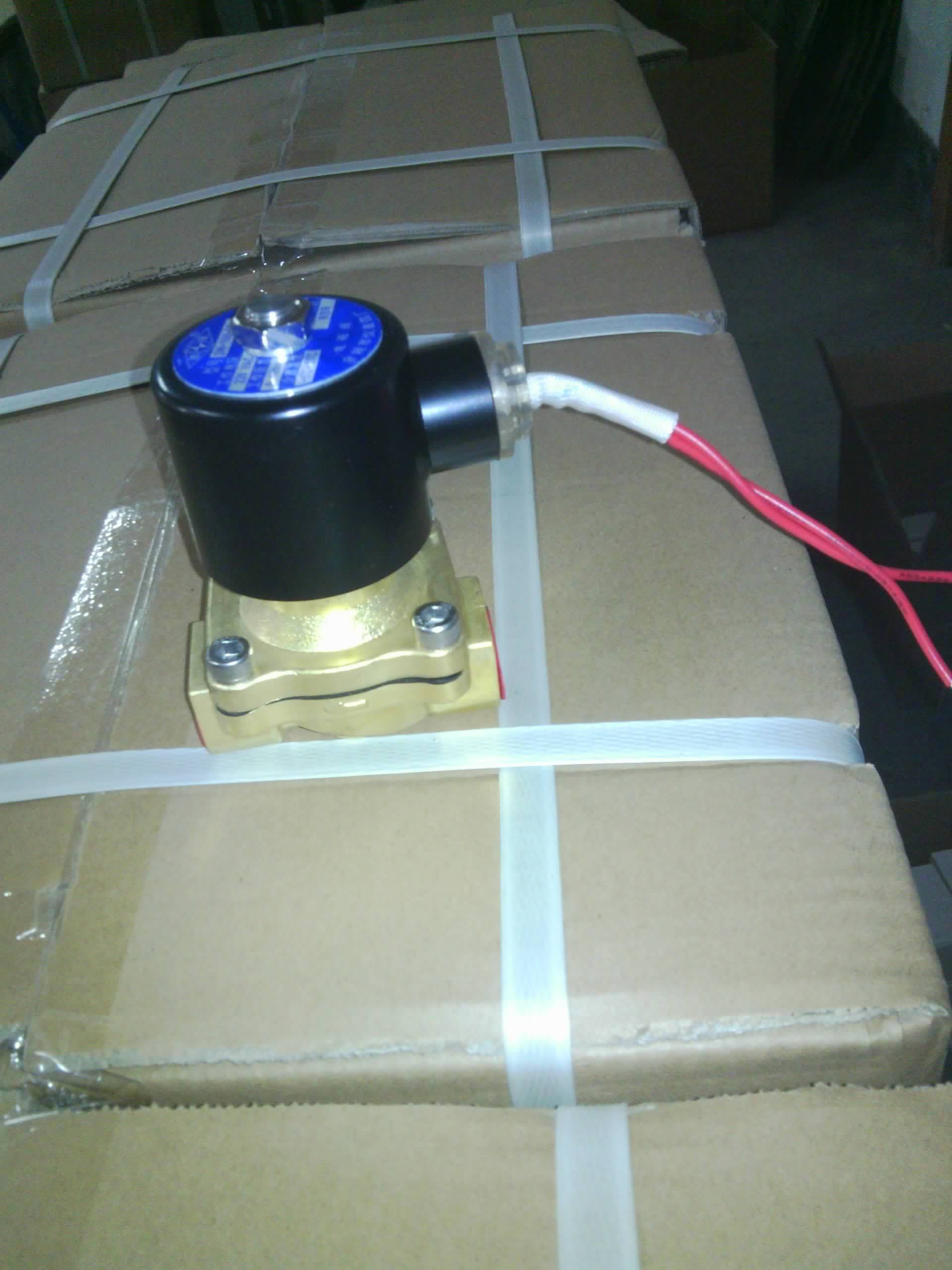

2W Series Solenoid Valve For Water\Air |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.5~50 |
| Connection: |
Thread Flange |
| Certificate: |
CE RoHS |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC&DC |
Product Description
-- Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
--Function type: Normally Closed (N/C), Normally Open (N/O)
-- Pressure: Normally Closed 10bar; Normally Open 6bar
--Temperature: -5 ÷ 80ºC
--Mode of action: Direct acting/ Semi-direct lift type
--Body material: Brass, Stainless
-- Sealing material: NBR
--Protection class: IP65
|
Model |
2W-025-06N |
2W-025-08N |
2W-040-08N |
2W-04010N |
2W-160-10N |
2W-160-15N |
2W-200-20N |
2W-250-25N |
2W-350-35 |
2W-400-40 |
2W-500-50 |
|
G Connection |
1/8" , 1/4" |
1/8" , 1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
1¼ " |
1½ " |
2" |
|
Orifice Size |
mm |
2.5 |
4 |
16 |
20 |
25 |
35 |
40 |
50 |
|
Motion Pattern |
Direct Action |
Semi-direct Lift |
|
Cv Value |
0.23 |
0.6 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
L |
mm |
40.5 |
40.5 |
40.5 |
52.5 |
69 |
69 |
73 |
99 |
119 |
123 |
168 |
|
H |
mm |
75 |
75 |
75 |
90 |
117 |
117 |
123.5 |
134.5 |
170 |
172 |
209 |
|
H1 |
mm |
66 |
66 |
66 |
76 |
101 |
101 |
107 |
113 |
143 |
144 |
172 |
|
Medium temperature |
-5 ÷ 80º C |
|
Pressure |
bar |
Normally closed : 0÷ 10; Normally Open: 0÷ 6 |
|
Power |
AC: 220V~AC: 230V/50-60HZ 22VA; AC110 ~AC: 120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range: ± 10%, |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

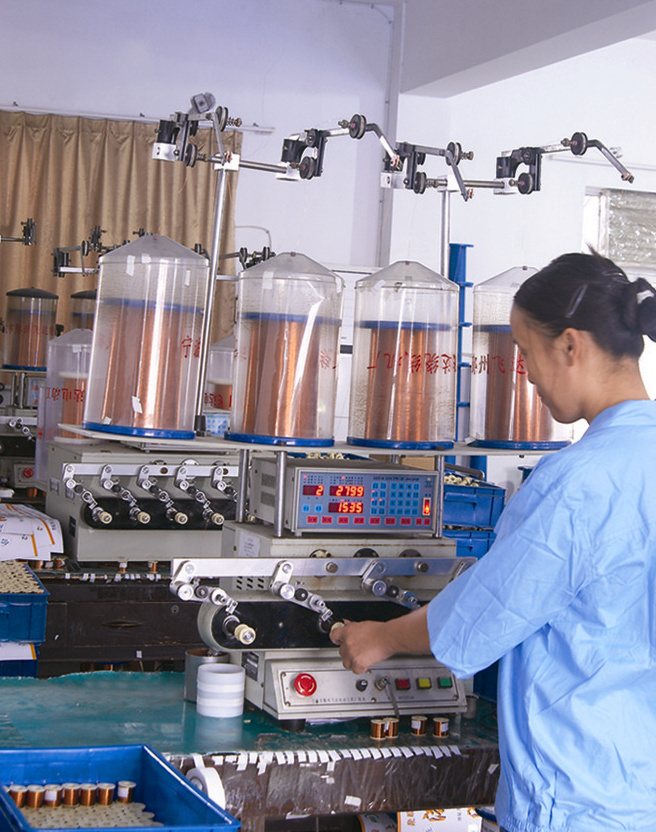

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
