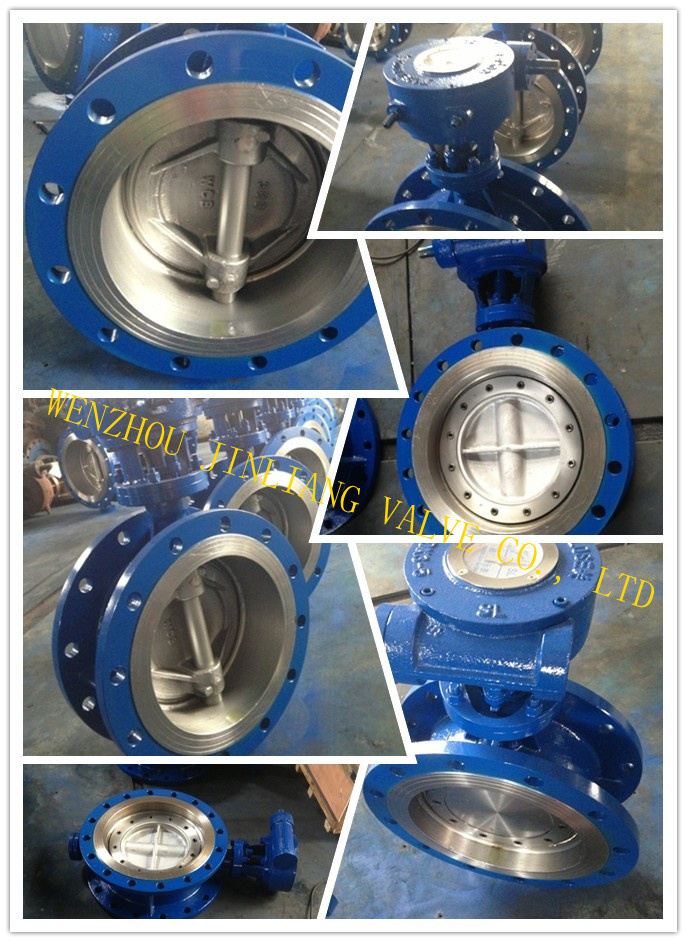

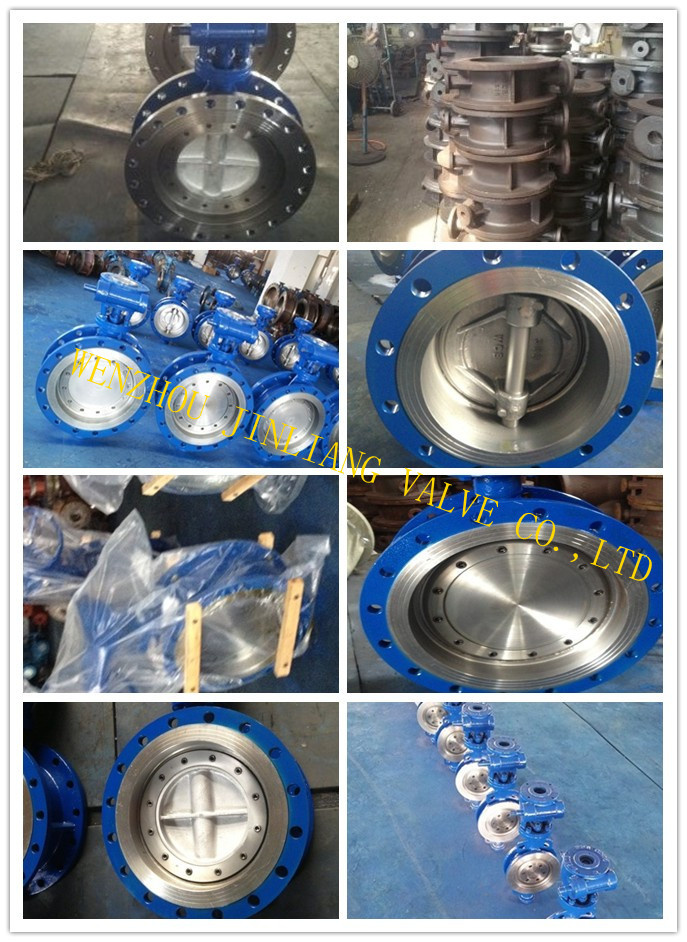

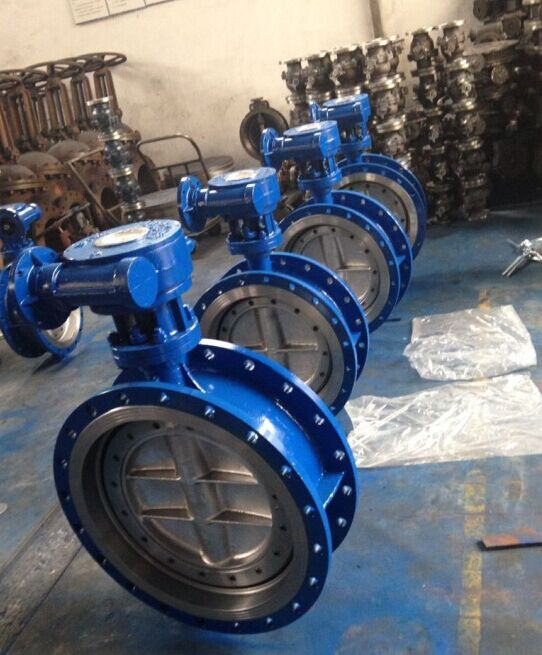

ANSI/ASTM Wcb Flanged Butterfly Valve with Gear Operated D343h-150lb
| Price: |
US $ 36-37/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
D343H-150LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn15-Dn800 |
| Pressure: |
Pn16--Pn64 |
| Temperature: |
Not More Than 425 |
| Design Standard: |
ASTM GB JIS |
| Medium: |
Water ,Gas ,Oil and Other Corrosive Liquids |
| Brand: |
OEM |
| Market: |
South America , MID-East |
| Delivery: |
25 Days |
| Warranty: |
12 Monthes |
| Payment: |
30% Paid in Advance, Others Before Shippment. |
| Connection Form: |
Flange |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Household Usage |
| Material Of Seal Surface: |
Metal Hard Sealed |
Product Description
ANSI/ASTM WCB Flanged Butterfly Valve with Gear Operated D343H-150LBD343H-150LB Specifications:
Size: DN50-1200
1.Body: Cast Steel, Stainless Steel
2.Disc: CF8/ CF8M/ WCB
3.Seat: NBR/EPDM/PDFE /VITON
4.Color: Any color according to customer requirement
5.Working pressure: PN10/ 16/150lb
6.Flange standard: PN10/ 16/ ANSI150
Brief introduction for butterfly valve
1. Flanged butterfly valve, designed to comply with MSS-SP-67, BS5155, and API609. Compatible with GB, DIN, BS, ANSI flanges. Face to face according to ISO 5752.
2. Characteristic of wafer type spline butterfly valve is to splice the rubber liner on the body, the strength more highly and the seal more reliably for the seat.
3. The spline is between the shaft and disc.
4. Available in size DN50---DN1200
5. Available with handles, manual gear operators, and electric or pneumatic actuators
Wenzhou Jinliang Valve Co., Ltd. is located in the enjoyment of the "China valve village " reputation of being known as the Zhejiang Wenzhou, the factory is located in Longwan District, in the Dushan Industrial zone, is a company specializing in the production, development, sales.
As one of the valve enterprises, mainly engaged in the production of valve products are: Butterfly valve. Gate Valve. Globe Valve, Ball valve. Check valve. The electric valve and a series of product specifications.
Factory has always been adhering to the " quality first, customer first, integrity management " principle, the implementation of total quality management based on, at competitive prices to meet your needs.
We sincerely welcome new and old customers come, calls, letter ordering negotiations. Let us in mutually beneficial cooperation, create success.
Wenzhou Jinliang Valve Co., Ltd. is located in the enjoyment of the "China valve village " reputation of being known as the Zhejiang Wenzhou, the factory is located in Longwan District, in the Dushan Industrial zone, is a company specializing in the production, development, sales.
As one of the valve enterprises, mainly engaged in the production of valve products are: Butterfly valve. Gate Valve. Globe Valve, Ball valve. Check valve. The electric valve and a series of product specifications.
Factory has always been adhering to the " quality first, customer first, integrity management " principle, the implementation of total quality management based on, at competitive prices to meet your needs.
We sincerely welcome new and old customers come, calls, letter ordering negotiations. Let us in mutually beneficial cooperation, create success.
