| Prod Model: |
Q41F-150LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
Product Description

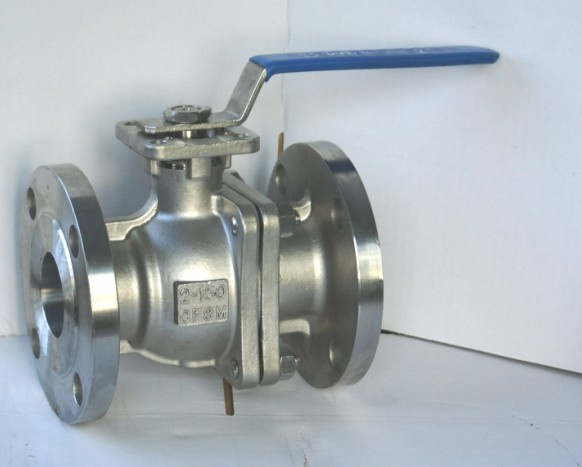

2PC Ball Valve
Size: DN 40-1200
End flange: ANSI B 16.1, EN 1092, AS 2129
Face to face"ANSI B 16.10
Top flange: ISO 5211
Norminal pressure: DN40-DN600 PN1.0/1.6MPa(150/200PSI) DN700-DN1200 PN1.0MPa(150PSI)
Body: CI/DI/WCB/ALB/CF8/CF8M
Disc: DI/ALB/Rubber lined Disc/1.2501/CF8/Hastelloy Alloy/Monel
Stem: 416/304/316/431/17-4pH
Seat: NR/Hypalon/EPDM/Neoprene/NBR/Wear/Resistant EPDM/Viton/Silicon/Heat/Resistant EPDM/White NBR/White EPDM/EPDM/PTFE
Suitable temperature: -45~150c
Frensh water, sewagemsea water, air, vapor, food, medicine, oils, alkalis. Salt etc.
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible.
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible.
