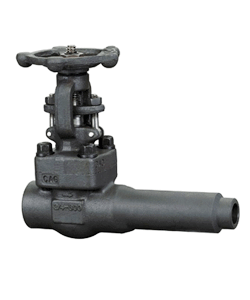

API 602 Forged Steel Extended Body Gate Valve
| Price: |
US $ 9.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Z11H, Z61H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design & Manufacture: |
API 602 |
| Face To Face: |
Asme B16.10,API 602 |
| Threaded Connection: |
Asme B16.11 |
| Socket Weld Connection: |
Asme B1.20.1 |
| Test & Inspect: |
API 598 |
| Material: |
Carbon Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
Product Description
Extended Body Gate Valve 800Lb
The Specific Connection Code
Connection Code: K------Screwed Weld K1------Inclined End K2------A Full Strength End K3 ------Socket Weld End
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) |
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 410 & 403 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS + graphite | SS + PTFE |
| 5 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 6 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 |
| 8 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 9 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | Nameplate | SS |
| 11 | Handwheel | A197 |
| 12 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 420 |
| 14 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 15 | Gland | A276 410 | A182 F304(L) | A182 F316(L) |
| 16 | Stem Packing | Flexible Graphite | PTFE |
| 17 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3CH3OOH etc |
| Suitable Temperature | -29 425 | -29 550 | -29 180 |
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
