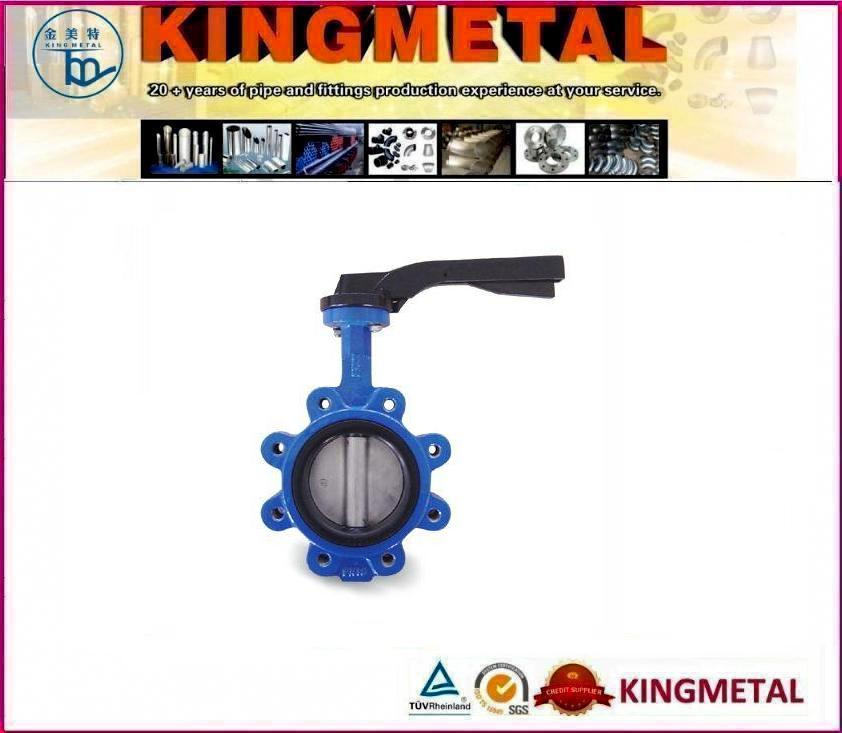

API 6D Butterfly Valve
Price: |
US $ 100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
KM-015-03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2"- 64" / Dn50- Dn1600 |
Class Range: |
Pn10- Pn25 / 150lb- 300lb |
Connection Form: |
Flange |
Structure: |
Double-Eccentric Sealing |
Seal Form: |
Supercharging Pressured Sealed |
Work Pressure: |
High Pressure (',10.0mpa< Pn <80.0mpa) |
Working Temperature: |
Normal Temperature (',-40??C
|
Material Of Seal Surface: |
Soft Sealed |
Application: |
Household Usage |
Product Description

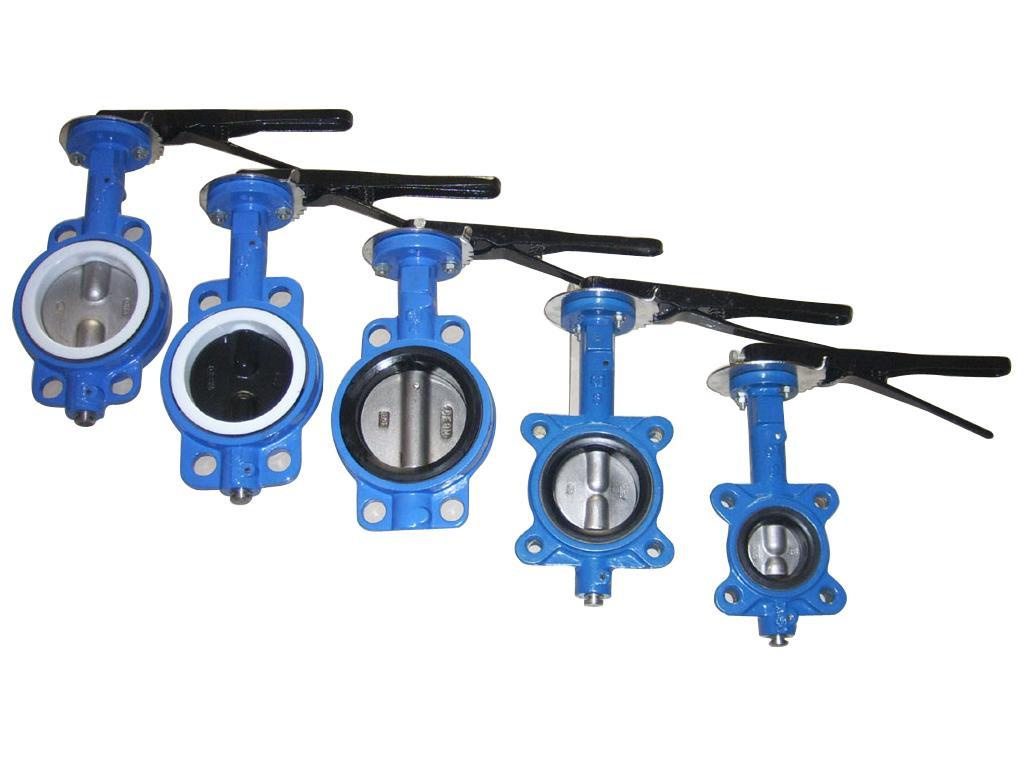

API 6D butterfly valve
Design and Manufacture: EN 598, BS 5155
Flange and Drilling: ANSI/ASME B16.5/B16.47
Face To Face Dimension: API 609
Top Flange: ISO 5211
Test and Inspection: API 598
Marking: API 609
Technical Data
Size Range: 2"- 64" / DN50- DN1600
Class Range: PN10- PN25 / 150LB- 300LB
Temperature Scope: -40- 420
End Connection Options: Flange, Butt Welding
Structure: Laminated Seat, Single Direction, Split Shaft, Triple Eccentric
Materials
Body: WCB, CF8, CF8M
Disc: WCB CF8, CF8M
Seat: S.S304/S.S316+PTFE/Graphite
Shaft: X20Cr13, S.S.304, S.S.316
Coating: Epoxy Resin Or Other Available On Request
Construction: Body And Bonnet Available In Carbon Steel, In Alloy And Stainless Steel And
Other Materials Available To Order
End Connection: Flanged, Screwed, Socket Weld Or Butt Weld Offered
