API 6D Forged Steel Pneumatic Flanged Wafer Ball Valve
| Price: |
US $ 20-1000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
OVK-150427 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-10" |
| Pressure: |
150lb-2500lb |
| Flange Standard: |
ANSI B16.5 |
| Certificate: |
API 6D,ISO9001,CE |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Flexible Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
| Driving Mode: |
Lever,Pneumatic,etc |
| Function: |
Cut-off and Control Medium |
Product Description

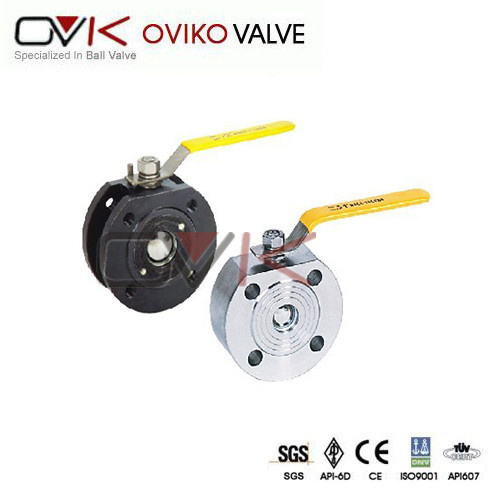

Wafer ball valve
Wafer ball valve is simple structure, small volum, light weight and constitute by servel parts. Jus trotate 90°,the valve would be open.
Wafer type ball valve has short distance between the valve seat and the end flange, low remains, superior in sealing, long service life etc.
have 2-way and 3-way body version,
It is widely used in the light industries as daily chemicals, pharmaceuticals, beer, grease etc., and can be used to transport the medium containing thin and soft particles and also used on the vacuum pipelines. It is one of the best ideal valves for modern industry.
1-PC Body Type(2-PC Body for DN125 and Over)
DN15-DN100 for Forged Body;DN125-DN200 for Cast Body
DN15-DN100 for 1-PC body Type;DN125 and over for 2-PC Body Type
Full Bore
Size:1/2"-10"
Materials: WCB, CF8, CF8M
Working Pressure:1.6MPa, 2.5Mpa
Working Temperature:<200°
Applicable Medium: Water, Oil, Gas, Acid, etc
Face to Face: GB/T 9113 Q/SYF012-96
Flanged Standard to ANSI B 16.5
Main Material
| NO. | Part name | Materails |
| 1 | Valve | CF8M/CF8 | WCB |
| 2 | Ball | 316/304 | SS304 |
| 3 | Sealing gasket | PTFE | PTFE |
| 4 | Stem | 316/304 | SS304 |
| 5 | Packing | PTFE | PTFE |
| 6 | Positioning lock | SS304 | SS304 |
| 7 | Lever | SS304 | SS304 |
| 8 | Stem Nut | SS304 | SS304 |
| 9 | Packing gland | SS304 | SS304 |
| 10 | Lever sleeve | Plastic | Plastic |
| 11 | Sealing nut | 316/304 | SS304 |
| 12 | Washer | PTFE | PTFE |
Main Size and weight
| Size | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | 5″ | 6″ |
| d | 15 | 19 | 23.5 | 30 | 36 | 45 | 58 | 67 | 76 | 100 | 125 |
| L | 32 | 38.5 | 45 | 55 | 62 | 72 | 95 | 120 | 145 | 200 | 225 |
| D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 |
| H | 62 | 70 | 79 | 86 | 92 | 102 | 158 | 172 | 187 | 200 | 240 |
| E | 110 | 125 | 135 | 150 | 150 | 180 | 250 | 300 | 350 | 650 | 840 |
| b | 14 | 14 | 16 | 16 | 18 | 20 | 22 | 24 | 24 | 26 | 26 |
| z-d1 | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 4-18 | 4-18 | 4-18 | 4-23 |
| f | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
