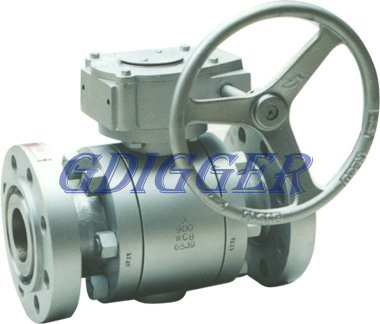

API Forged Steel Ball Valve
| Price: |
US $ 90/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
forged steel ball valve |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
| Size: |
1/2"-12" |
| Drive Mode: |
Manual,Electric,Hydraulic,Worm Gear |
| Certification: |
CE,API6a,6D,600,GOST,ISO9001,Ta-Luft,Az |
| Design Standard: |
GB,Jb,API,DIN,Bs,JIS |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Material: |
Forged Steel |

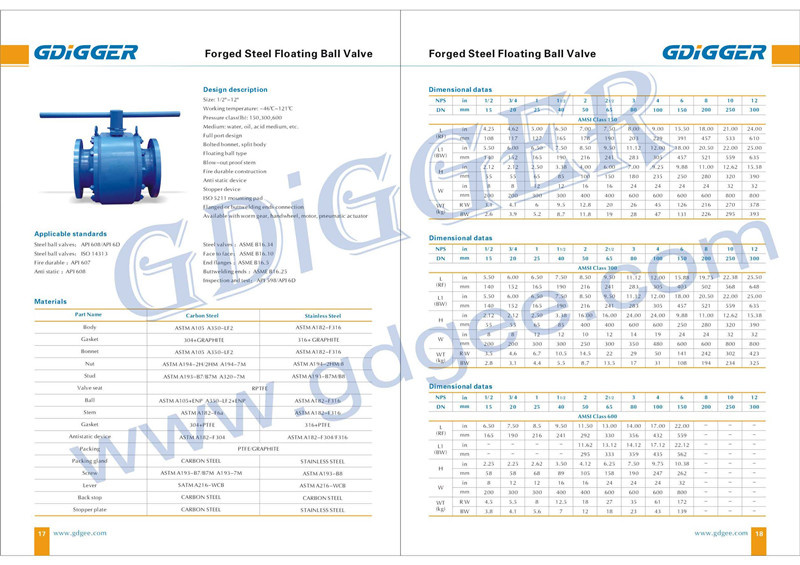

Product Description
Forged steel ball valve Design descriptionSize: 1/2"-12"
Working temperature: -46 ~121
Pressure class(lb): 150, 300, 600
Medium: Water, oil, acid medium, etc.
Full port design
Bolted bonnet, split body
Floating ball type
Blow-out proof stem
Fire durable construction
Anti static device
Stopper device
ISO 5211 mounting pad
Flanged or buttwelding ends connection
Available with worm gear, handwheel, motor, pneumatic actuator
Forged steel ball valve Applicable standards
Steel ball valves API 608/API 6D
Steel ball valves ISO 14313
Fire durable API 607
Anti static API 608
Steel valves ASME B16.34
Face to face ASME B16.10
End flanges ASME B16.5
Buttwelding ends ASME B16.25
Forged steel ball valve Inspection and test API 598/API 6D
Except forged steel ball valve, we can also offer customer other ball valve, gate valve, globe valve, check valve, butterfly valve, safety valve and so on. If you have any demand, pls kindly send us the inquiry. We'll try our best to support you.
|
Main material |
WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
|
Pressure rating |
Class 150 to Class 2500 (PN2.5 to PN 420) |
|
Standards applied |
API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
|
Operative temperature |
-196 °C to 980 °C ( -320.8 °F to 1796 °F) |
|
Optional operation |
Manual, Gear, Electric, Pneumatic, Hydraulic. |
WENZHOU GDIGGER ENERGY ENGINEERING Co., Ltd. Located in Wenzhou, the area of head office is 45, 000 square meters, which is a professional manufacturer specializing in Pressure Vessels, Storage Tanks, LPG Spherical Tanks, LPG Tanks, and various quality ball valves, gate valves, check valves, globe valves and valve accessories. Our diverse products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.
We supply Storage Tank and Spherical Tank on any projects for different medium (LPG, LNG, Oxygen, Nitrogen, Natural Gas, Hydrogen, Liquefied Gas, etc). Cubage dimension from 5m³ To 10000 m³ With experienced installation teams for your tanks if need. GDIGGER provides an in-depth knowledge and widespread International experience from design, supply, construction, Installation & training of EPC Projects. Our products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.

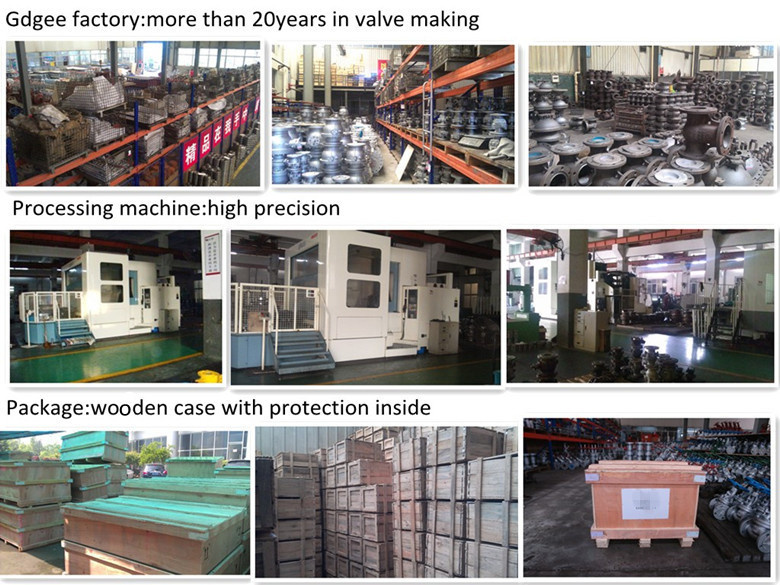

In order to provide satisfactory products to the customs, we emphasize on our quality control to meet the customer's specification and requirements. We utilize modern CNC lathes and machining centers, precision grinders and a full complement of manual lathes and mills to produce high quality parts.
GDIGGER products are made in accordance with ISO, ANSI, API, ASME and other international standards. With qualifications of specialized contracting and Grade I of installation of steel structure, and qualified as Grade A2 and A3 of special equipment. We obtained some important international authentication certificates such as NK, BV, and ASME. Meanwhile we have been awarded U Stamp and U2 Stamp of ASME authentication as well as the NB Stamp of America Boiler and Pressure Vessel Supervisory Commission. Our main focus is on offering outstanding products to our customers and sticking to timely delivery schedules with top quality and competitive prices, which will be your reliable partner.
GDIGGER is your one stop solution partner on oil and gas industry. We welcome valuable customers to visit our company.
WENZHOU GDIGGER ENERGY ENGINEERING Co., Ltd. Located in Wenzhou, the area of head office is 45, 000 square meters, which is a professional manufacturer specializing in Pressure Vessels, Storage Tanks, LPG Spherical Tanks, LPG Tanks, and various quality ball valves, gate valves, check valves, globe valves and valve accessories. Our diverse products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.
We supply Storage Tank and Spherical Tank on any projects for different medium (LPG, LNG, Oxygen, Nitrogen, Natural Gas, Hydrogen, Liquefied Gas, etc). Cubage dimension from 5m³ To 10000 m³ With experienced installation teams for your tanks if need. GDIGGER provides an in-depth knowledge and widespread International experience from design, supply, construction, Installation & training of EPC Projects. Our products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.
In order to provide satisfactory products to the customs, we emphasize on our quality control to meet the customer's specification and requirements. We utilize modern CNC lathes and machining centers, precision grinders and a full complement of manual lathes and mills to produce high quality parts.
GDIGGER products are made in accordance with ISO, ANSI, API, ASME and other international standards. With qualifications of specialized contracting and Grade I of installation of steel structure, and qualified as Grade A2 and A3 of special equipment. We obtained some important international authentication certificates such as NK, BV, and ASME. Meanwhile we have been awarded U Stamp and U2 Stamp of ASME authentication as well as the NB Stamp of America Boiler and Pressure Vessel Supervisory Commission. Our main focus is on offering outstanding products to our customers and sticking to timely delivery schedules with top quality and competitive prices, which will be your reliable partner.
GDIGGER is your one stop solution partner on oil and gas industry. We welcome valuable customers to visit our company.
