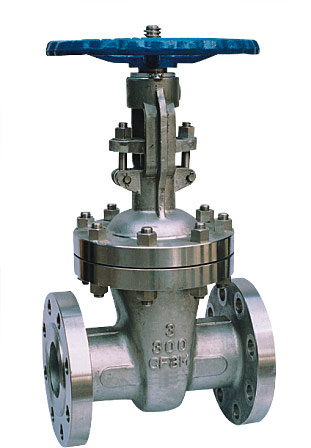

API Gear Pressure Seal Flanged Gate Valve (Z40Y-2500LB)

Prod Model:	Z40Y-2500LB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material:	ASTM A216 Wcb
Bonnet:	ASTM A216 Wcb
Disc:	ASTM A216 Wcb
Stem:	2Cr13/F6a
Yoke Nut:	Zqal9-4/ASTM A439 D-2
Hand Wheel:	Malleable Cast Iron/Ductile Iron/Wcb
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Inside Gate Valve
Application:	Household Usage
Material:	Cast Steel
Pressure:	2.0/5.0/10.0

Product Description

API Gear Pressure Seal Flanged Gate Valve(Z40Y-2500LB)
This valve applies to the water, steam or oil pipeline which is noncorrosive medium and the pipeline must be the working temperature ≤ 200 ºC

Main parts and materials For API Gear Pressure Seal Flanged Gate Valve(Z40Y-2500LB)

Valve body	ASTM A216 WCB
Bonnet	ASTM A216 WCB
Disc	ASTM A216 WCB
Stem	2Cr13,F6a
Yoke Nut	ZQAL9-4,ASTM A439 D-2
Hand Wheel	Malleable Cast Iron, Ductile Iron,WCB


Function and Specification of API Gear Pressure Seal Flanged Gate Valve(Z40Y-2500LB)

Type	Nominal pressure (MPa)	Testing pressure			Suitable temperature( ºC )	Suitable medium
		Body experiment	High-pressured fluid seal	Low pressure aero seal
150Lb	2.0	2.94	2.16	0.6	-29 ~ 425	Water,Vapour,Oil
300Lb	5.0	7.67	5.62
600Lb	10.0	15.3	11.23


Manufacturing Process of API Gear Pressure Seal Flanged Gate Valve(Z40Y-2500LB)
(01)Mold warehouse-----(02)Wax-----(03)Repair mold line ----(04)Wax polish ----(05)  Tuple trees ----(06)Cast molding----(07)Dry-----(08) Dewaxing ----(09)Wax equipment ----(10)  Smelting

Outline and connecting measurement of API Gear Pressure Seal Flanged Gate Valve(Z40Y-2500LB)

Type	Nominal diameter DN		Measurement(mm)												Reference weight(KG)
	in	mm	L	D	D1	D2	D3	b-f	Z×Φd	H	H1	H2	W	D0
150Lb(2.0MPa)	1	25	127	108	79.5	51		12-1.6	4×15	200			120		4.5
	1 1/4	32	140	117	89	64		13-1.6	4×15	235			140		7.1
	1 1/2	40	165	127	98.5	73		15-1.6	4×19	285			180		11.3
	2	50	178	150	120.7	92		16-1.6	4×19	481			200		25.5
	2 1/2	65	190	178	139.5	105		18-1.6	4×19	435			200		32
	3	80	203	190	152.4	127		19-1.6	4×19	583			250		40.3
	4	100	229	230	190.5	157		24-1.6	8×19	646			300		56
	5	125	254	255	216	186		24-1.6	8×22	725			350		66
	6	150	267	280	241.3	216		26-1.6	8×22.5	881			350		93
	8	200	292	345	298.5	270		29-1.6	8×22.5	1064			350		135
	10	250	330	405	362	324		31-1.6	12×25	1224			400		195.8
	12	300	356	485	431.8	381		32-1.6	12×25	1437			500		295.1
	14	350	381	535	476.5	413		35-1.6	12×29	1543			500		488
	16	400	406	597	539.5	470		37-1.6	16×29	1738			600		621
	18	450	432	635	578	533		40-1.6	16×32	1959			600		1030
	20	500	457	700	635	584		43-1.6	20×32	2214			680		1500
	24	600	508	815	749.5	692		48-1.6	20×35	2599			760		1700
Type	Nominal diameter DN		Measurement(mm)												Reference weight(KG)
	in	mm	L	D	D1	D2	D3	b-f	Z×Φd	H	H1	H2	W	D0
300Lb(5.0MPa)	1	25	165	124	89	51		18-1.6	4×19	215			140		7.1
	1 1/4	32	178	133	98.5	64		19-1.6	4×19	255			180		9.5
	1 1/2	40	190	156	114.5	73		21-1.6	4×19	320			200		13.1
	2	50	216	165	127	92		22-1.6	8×20	530			250		32.6
	2 1/2	65	241	190	149	105		25-1.6	8×22	460			250		40
	3	80	283	210	168.3	127		29-1.6	8×23	664			300		62
	4	100	305	255	200	157		32-1.6	8×23	712			350		85.5
	5	125	381	280	235	186		35-1.6	8×23	872			400		128
	6	150	403	320	269.9	216		37-1.6	12×22.5	976			400		180
	8	200	419	381	330	270		41-1.6	12×25	1012			400		287
	10	250	457	445	387.4	324		48-1.6	16×28.5	1311			560		390
	12	300	502	520	451	381		51-1.6	16×32	1512			640		500
	14	350	762	584	514.5	413		54-1.6	20×32	1645			600		886
	16	400	838	648	571.5	470		57-1.6	20×35	1841			600		1175
	18	450	914	711	628.5	533		61-1.6	24×35	1943			680		1350
	20	500	991	775	686	584		64-1.6	24×35	2154			760		1500
	24	600	1143	914	813	692		70-1.6	24×41	2553			915		1800
Type	Nominal diameter DN		Measurement(mm)												Reference weight(KG)
	in	mm	L	D	D1	D2	D3	b-f	Z×Φd	H	H1	H2	W	D0
600Lb(10.0MPa)	1	25	216	124	89	51		18-6.4	4×19	215			180		7.6
	1 1/4	32	229	133	98.5	64		21-6.4	4×19	270			200		10
	1 1/2	40	241	156	114.5	73		23-6.4	4×22	345			200		15
	2	50	292	165	127	92		26-6.4	8×19	458			250		44
	2 1/2	65	330	190	149	105		29-6.4	8×22	520			250		60
	3	80	356	210	168	127		32-6.4	8×22	570			250		80
	4	100	432	273	216	157		38-6.4	8×25	690			350		145
	5	125	508	330	266.5	186		45-6.4	8×29	780			350		236
	6	150	559	356	292	216		48-6.4	12×29	910			450		309
	8	200	660	419	349	270		56-6.4	12×32	1064			500		522
