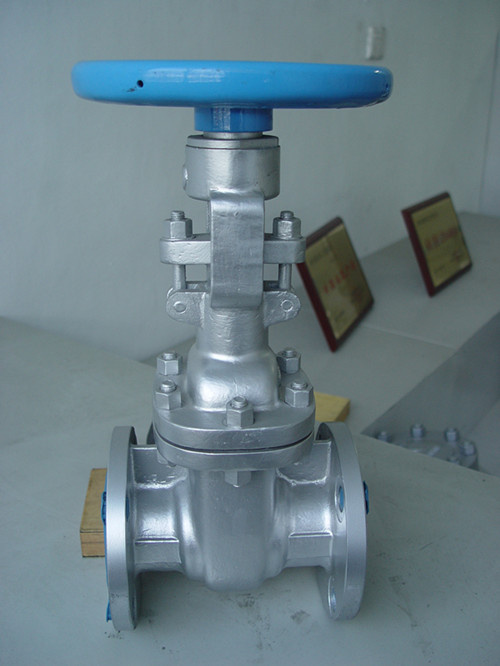

API Globe Valve for Oil&Gas
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
ANSI |
| Application: |
Lining Fluorine Valve |
Product Description
Application standards
Design and manufacture conform to BS5352
Connection ends conform to:
Socket welded ends conform to: ANSI B 16.11
Screwed ends conform to ANSI B1.20.1
Butt-welded ends conform to ANSI B 16.25
Flanged ends conform to ANSI B 16.5
Test and inspection conform to API 598
Structure features; Bolted bonnet, outside screw and yoke
Welded bonnet, Outside screw and yoke.
Materials conform to ANSI/ASTM
Main materials: A105; 304(L); 316(L); F347; F321
Bellow materials: 304; 321; 316; InconelI625; Hastelloy; C276; Monel.
|
NO. |
Part name |
A105/F6a |
A105/F6aHFS |
F304(L)/304(L) |
F316(L)/316(L) |
A105/F6aHF |
|
1 |
Body |
A105 |
A105+HF |
F304(L) |
F316(L) |
A105 |
|
2 |
Disc |
F6a |
F6a |
F304(L) |
F316(L) |
F6a |
|
3 |
Stem |
410 |
410 |
304(L) |
316(L) |
410 |
|
4 |
Gasket |
Flexible Graphite |
|
5 |
Bonnet |
A105 |
A105 |
F304(L) |
F316(L) |
A105 |
|
6 |
Bolt |
B7 |
B7 |
B8(M) |
B8 |
B7 |
|
7 |
Pin |
410 |
410 |
304 |
304 |
410 |
|
8 |
Gland |
410 |
410 |
304 |
316 |
410 |
|
9 |
Gland eyebolt |
B7 |
B7 |
B8(M) |
B8(M) |
B7 |
|
10 |
Gland flange |
A105 |
A105 |
F304 |
F304 |
A105 |
|
11 |
Hex nut |
2H |
2H |
8(M) |
8(M) |
2H |
|
12 |
Stem nut |
410 |
410 |
410 |
410 |
410 |
|
13 |
Ltem nut |
35 |
35 |
35 |
35 |
35 |
|
14 |
Nameplate |
AL |
AL |
AL |
AL |
AL |
|
15 |
Hand wheel |
A197 |
A197 |
A197 |
A197 |
A197 |
|
16 |
Lubricating gasket |
410 |
410 |
410 |
410 |
410 |
|
17 |
Packing |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
|
18 |
Gasket |
Flexible Graphite |
|
19 |
Beelow |
F321 |
F321 |
F321 |
F321 |
F316L/316L |
|
20 |
Steel wire |
304 |
304 |
304 |
304 |
316 |
|
21 |
Pin |
304 |
304 |
304 |
304 |
304 |
