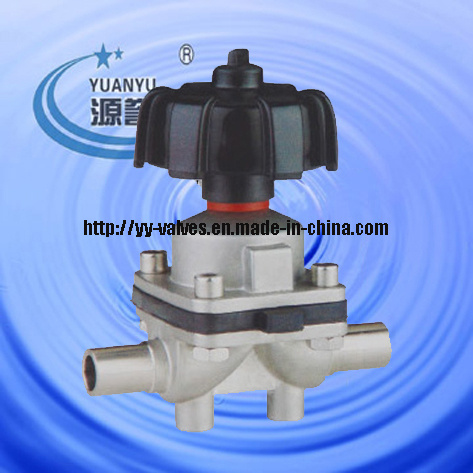

Aseptic Diaphragm Valve for High Purity Application
| Price: |
US $ 42/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GM612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Actuator: |
Manual |
| Connection: |
Welded Diaphragm Valve |
| Material: |
Stainless Steel |
Product Description
Aseptic diaphragm valve for high purity application
1)Body material: Stainless steel 316L (investment casting)
2)Max pressure: 10bar (diaphragm is EPDM or FPM), 6bar (diaphragm is PTFE, one side shall be used))
3)Working temperature: EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree)
4)Standard: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
5)Connection: Clamped, welded, flanged, weld socket, Screw (NPT, BSP)can be chosen.
6)Material of seal: EPDM+PTFE FDA: 177.26600/
7)Size: DN8-DN100
8)Power: Pneumatic actuator(plastic/stainless steel actuator)/Handle
9)Driving way: Pneumatic, normally closed(1), normally open(2), and double direction(3)
10)Control pressure: 4-6 bar(control way 1), 3-4 bar(control way 2 and 3)
As a manufacturer, we can produce according to customer's requirement.
Please feel free to contact us if you want e-catalogue and drawing.
We are at your service any time.
CE Certificate can be provided.
| Technical Data |
| Material | Contact with the product components | Investment casting316L(1.4409) | Can provide material inspection report |
| Materal no contact with the product components | 304(1.4301) |
| Sealing material | Standard | EPDM+PTFE | Adopt sealing material with all the seal material the FDA 117.2600 |
| Option | EPDM |
| Pressure | Pressure of work | 16 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
| Surface treatment | Inside surface treatment | Ra≥0.4-0.8μm |
|
| Surface treatment | Sand blasket |
|
| Connection | The diameter welding | DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS,BPE.... |
| Connection mode: | weld, triclamp,flange,wled socket,screw etc |
| Body mode | Straight ,T type, U type, L type,Multi type can be chosen |
| Optional driven | Brainpower |
| Pneumatic control | Pleastic actuator and stainless steel actuator |
| Manual handle mode | ABS or stainless steel handle |
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
