| Prod Model: |
IPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description

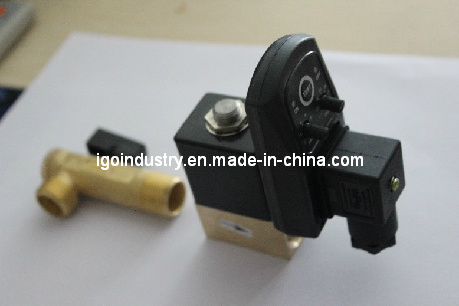

IPT general electron drain valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically. RPT electron drain valve widely be applied in compressed pneumatic system parts like filter, separator, dryer machine, gas tank, water drop foot and so on. Discharge time and interval time can be carried on adjustment according to different requirements.
High quality, low cost
One kind of model suits all applications, simple installment, completely automatic, exempts maintains
Interval time and discharge time can be adjustable and have test buttons
Pressure 16Bar, 40Bar, 80Bar. Many kinds of voltages and connections to be chose
Entire stainless steel valve, explosion-proof valve to be chose
CE authentication, protection rank IP65, insulation grade H level
5.0mm large latus rectum direct-acting valve, fl uorine rubber seal
Match ball valve fi lter, fi ssion with drain valve, assumed L structure
External dimensions: 112× 44× 90mm, weight 600g
|
Interval time |
0.5 to 45 minutes, adjustable |
|
Discharge time |
0.5 to 10seconds, adjustable |
|
Manual TEST switch |
Micro switch |
|
Supply voltage |
24-240V AC/DC 50/ 60Hz /12 to 380 VAC /DC 50/ 60Hz |
|
Current consumption |
4mA maximum |
|
Environmental protection |
-40_+60/ -40° Celcius to 60° Celcius |
|
Operating temperature |
IP65 IP65, NEMA4 |
|
Housing material |
ABS plastic |
|
Connection |
DIN43650A /DIN 43650 - A/ISO 4400 |
|
Indicators |
1 LED (yellow), indicating ON |
|
Design Standards |
VDE 01 10C /1 LED (yellow), indicating OFF |
|
VALVE |
RPT-16, RPT-40, RPT-80 |
|
Type |
2/2-way direct acting |
|
In/Out ports |
1/8" , /1/4" , 3/8" and 1/2" |
|
Max. working pressure |
16Bar, 40Bar, 80Bar 0 to 16 BAR |
|
Min. /Max. temperature |
2/ 552° Celcius to 55° Celcius |
|
Max. Media temperature |
Max. 90° Celcius |
|
Valve seals |
FPM ( Viton ) seals Forged brass, 4.5 mm orifi ce |
|
Insulation |
Thermal group H (200° C) |
|
Operating temperature |
IP65, NEMA4 |
|
Environmental protection |
24-230V AC/DC/12 to 380VAC /DC 50/ 60Hz |
|
Voltage options |
+/-10% |
|
Mountable in any position |
Yes |
