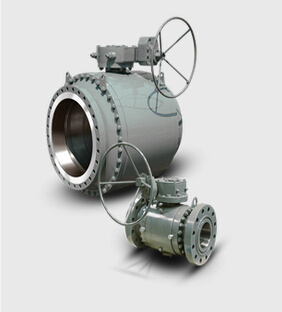

Ball Valve
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
JSCBV01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Industrial Usage |
| Function: |
Manual |
| Channel: |
RF |
Product Description
Basic Design: ANSI B16.34,API 6D
Face to Face standard: ANSI B16.10,API 6D
Flanged standard: ANSI B16.5 (2"-24")
ANSI B16.47 (>24")
Butt Welding standard: ANSI B16.25
Test and Inspection standard: API 6D
Fire-safe Design / Test standard: API 6FA
Specifications:
Pressure: 150LB, 300LB, 600LB,900LB,1500LB
NPS: 2"~34"
Bore: Full Bore and Reduced Bore
End Contenction: Flanged, Welded
Operater: Lever, Gear, Actuator
Material Class: Carbon Steel, Stainless Steel, Low Temp Steel, Duplex S.S./Super Duplex S.S.
Application:For Oil, Gas, Power, Petrochemical, Civil Construction Industries
JSC valve is one of the leading valve manufacturers and service company in China, It's located in "chinease pump & valve Town" Oubei town, Wenzhou city, Zhejiang province, China, It was set up in 1985, covers an area of 21000 square meters, where employs about 287 employees at present including 15 technical staffs, furnished with 180 sets of machine tools, JSC valve integrates the design, production, examination, sales and service as whole for the valve industry.
Our main products are Ball valve, Butterfly valve, Forged valves and other Valves, Pipe and Fittings as well, with working pressure varying from 150Lb~2500Lb(0.1MPa~42MPa), the diameter from 1/4"~80"(DN6~DN2000), The working temperature from -196º C~680º C strictly according to the standards of ANSI, API, DIN, BS, JIS, served for the Petrochemical, Oil/Gas, Power Plant, Refining, metallurgy, ect fields. With our strict quality control to meet and exceed our customer's request and expectation.
JSC valve is one of the leading valve manufacturers and service company in China, It's located in "chinease pump & valve Town" Oubei town, Wenzhou city, Zhejiang province, China, It was set up in 1985, covers an area of 21000 square meters, where employs about 287 employees at present including 15 technical staffs, furnished with 180 sets of machine tools, JSC valve integrates the design, production, examination, sales and service as whole for the valve industry.
Our main products are Ball valve, Butterfly valve, Forged valves and other Valves, Pipe and Fittings as well, with working pressure varying from 150Lb~2500Lb(0.1MPa~42MPa), the diameter from 1/4"~80"(DN6~DN2000), The working temperature from -196º C~680º C strictly according to the standards of ANSI, API, DIN, BS, JIS, served for the Petrochemical, Oil/Gas, Power Plant, Refining, metallurgy, ect fields. With our strict quality control to meet and exceed our customer's request and expectation.
