Bolted Bonnet Y-Type Forged Globe Valve
| Price: |
US $ 10-50/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
J61H |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Socket Welding |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Sealing Form: |
Gland Packings Globe Valve |
| Application: |
Bellows Globe Valve |
Product Description

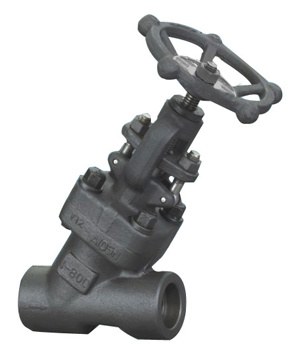

Bolted Bonnet Y-type forged globe valve(J61H)Main Specification1.The body are designed to be tubby or handsome streamline.According to the liquid flow direction,in diffrernt types-through way type,angle type and Y-type.
2.The sealing face adopts a conic piston to reduce the resistance to shut down.
Normal Feature
Size Range | NPS1/4"~3" DN8~50mm |
| Class | 150LB~1500LB |
| Material | A105,LF2,F11,F22,F304,F316,F304L,F316L |
| Connection | Socket welding or inner screwed |
| Feature | Full bore or reduced bore,B.B or W.B or pressure seal bonnet,through way,OS&Y |
| Temperature | -160ºC~550ºC |
| Actuator | Hand wheel |
| Application | Oil and gas pipeline
Drainage system
Chemical Plant |
Manufacture Standard
Design | ASME/ANSI B 16.34,API602,BS5352 |
| Face to face | ASME/ANSI B 16.10, |
| SW End Connection | ASME/ANSI B 16.11 |
| Screwed ends connection | ANSI B 1.20.1 |
| Inspection and test | API598 |
Why choose us?l Professional manufacturer with many years' experience in this area.
l Best price with superior quality.
l 3-5 hours fast reply.
l OEM service acceptable, customer providing sample for special requirement is accepted.
l Low MOQ with convenient payment, support Western Union,Paypal.
l Meet delievery date in time.
Yongjia Jiali Valve Manufacture Co., Ltd. is a professional valve manufacturer located in China famous Pump$Valve Town-Oubei. The main of our products are Gate Valves, Globe Valves, Check Valves, Ball valves, Plug valves, Butterfly valves, Strainer and other special valves applied broadly in petroleum, chemical, metallurgical and power station industries.
Established in 2004, Jiali Valve has grown up into a professional manufacturer integrating valve design, production, sale and service. The company covers more than 60series and thousands of specifications which strictly comformed to international advanced standards such as API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB and so on. We can also casting and processing valves according to the client's special requirement.
The Products nominal diameter (NPS), 1/4"-44"(DN8-DN1400);
Pressure class from 150LB to 2500LB (PN0.1MPa-32MPa);
Operating temperature: -196° C~680° C;
Main materials includes WCB, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CF8C, etc.

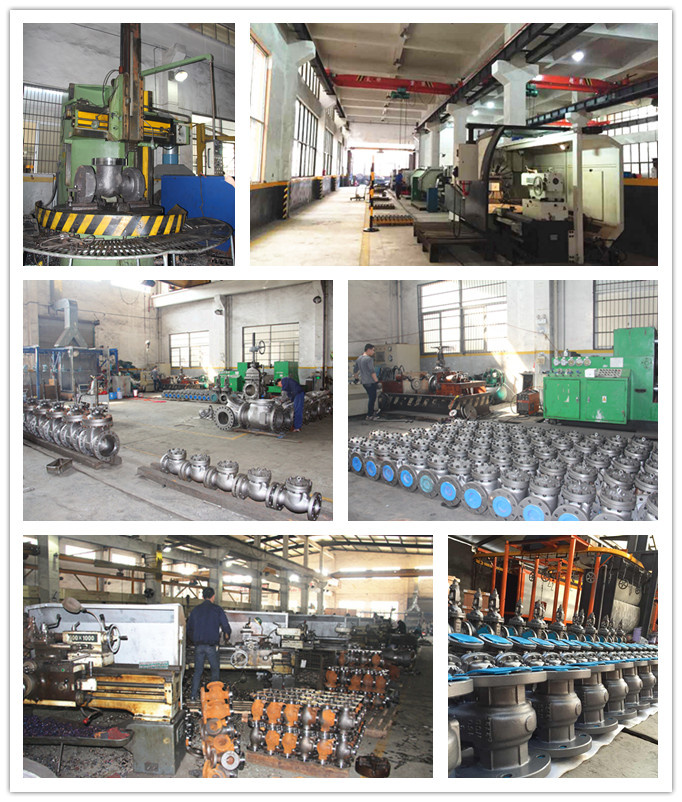

Jiali Valve has established a perfect quality control in order to ensure excellent quality and service. The company has a sophisticated processing center, testing and inspecting center, chemical composition analysis center, mechanical performance test, nondestructive inspection, liquid pressure test, low leak test as well as various special facilities. Just because of these strict quality control system and advanced technical support, our company are highly recognized and trusted by our customers including Europe, America, Middle East, Southeast Asia. etc
Technology innovation, strict quality control, perfect after-sales service, Jiali valve casts higher quality valves, we are always doing the best. We warmly welcome clients all over the world come to visit us to create a brilliant future.
Yongjia Jiali Valve Manufacture Co., Ltd. is a professional valve manufacturer located in China famous Pump$Valve Town-Oubei. The main of our products are Gate Valves, Globe Valves, Check Valves, Ball valves, Plug valves, Butterfly valves, Strainer and other special valves applied broadly in petroleum, chemical, metallurgical and power station industries.
Established in 2004, Jiali Valve has grown up into a professional manufacturer integrating valve design, production, sale and service. The company covers more than 60series and thousands of specifications which strictly comformed to international advanced standards such as API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB and so on. We can also casting and processing valves according to the client's special requirement.
The Products nominal diameter (NPS), 1/4"-44"(DN8-DN1400);
Pressure class from 150LB to 2500LB (PN0.1MPa-32MPa);
Operating temperature: -196° C~680° C;
Main materials includes WCB, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CF8C, etc.
Jiali Valve has established a perfect quality control in order to ensure excellent quality and service. The company has a sophisticated processing center, testing and inspecting center, chemical composition analysis center, mechanical performance test, nondestructive inspection, liquid pressure test, low leak test as well as various special facilities. Just because of these strict quality control system and advanced technical support, our company are highly recognized and trusted by our customers including Europe, America, Middle East, Southeast Asia. etc
Technology innovation, strict quality control, perfect after-sales service, Jiali valve casts higher quality valves, we are always doing the best. We warmly welcome clients all over the world come to visit us to create a brilliant future.
