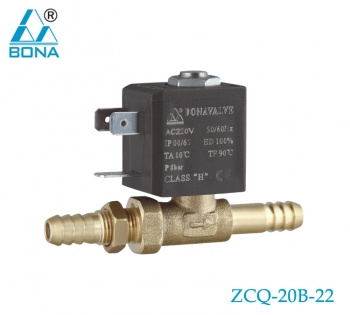

| Prod Model: |
ZCQ-20B-22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6.5mm: |
8mm |
| DC 24V: |
Mini Size |
| Connection Form: |
Tubular |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description
2/2 way, normally close, direct action, design for use with steam, water and air in general.
Port Size: |
Tube connector 8.0mm |
Body material: |
Brass |
Seal ring material: |
NBR, EPDM etc. |
Max Media Temperature: |
90ºC/120ºC |
Voltage available: |
12VAC; DC 12V; 24VAC;DC 24V; 110/120VAC; 220/230VAC |
Inner Orifice |
Φ2.2mm |
work Pressure: |
0-8 bar |
Protection Class: |
IP65 |
Dimension(L×W×H): |
52×22×54.5mm |
Service
Our service We have more than 13 years experience in solenoid valves. Excellent quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are being exported all over the world. We provide OEM service, accept customer label, develop the product with your drawings or samples. Any question, will be replyed within 24 hours. Direct supplying from the factory, shorten the distance between the manufacturer and the custome
Other terms
1) About Samples: We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.
2) About Packing; Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets
3) Terms of payment: We accept T/T, L/C, Western union, Papal
4) Terms of Shipment: About 20-25days after receiving deposit.
5) Ports of shipment: Ningbo/Shanghai Port, by sea or air.
6) Gurantee: One year since delivery.
7) Inspection: 100% testing before delivery.
