| Prod Model: |
Boss2211 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Boss |
| Size: |
1/4" |
| Style: |
Threaded |
| Shape: |
Inline |
| Certification: |
ISO 9001:2008 and Asme B40.1. |
| Product Material: |
Brass |
| Maximum Measurement: |
400 Psi |
| Weight: |
50g |
| Temperature Range: |
-9 to 212 Degree Fahrenheit |
| Connect Type: |
NPT Male |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Oil Seal Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
Product Description
Product Features
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
Lever handle for manual on/off control
Teflon gaskets reduce the risk of leakage
Maximum operating pressure of 400 pounds psi, and working temperature range of -9 to 212 degree Fahrenheit
NPT threads for a tight seal connection
Product Description

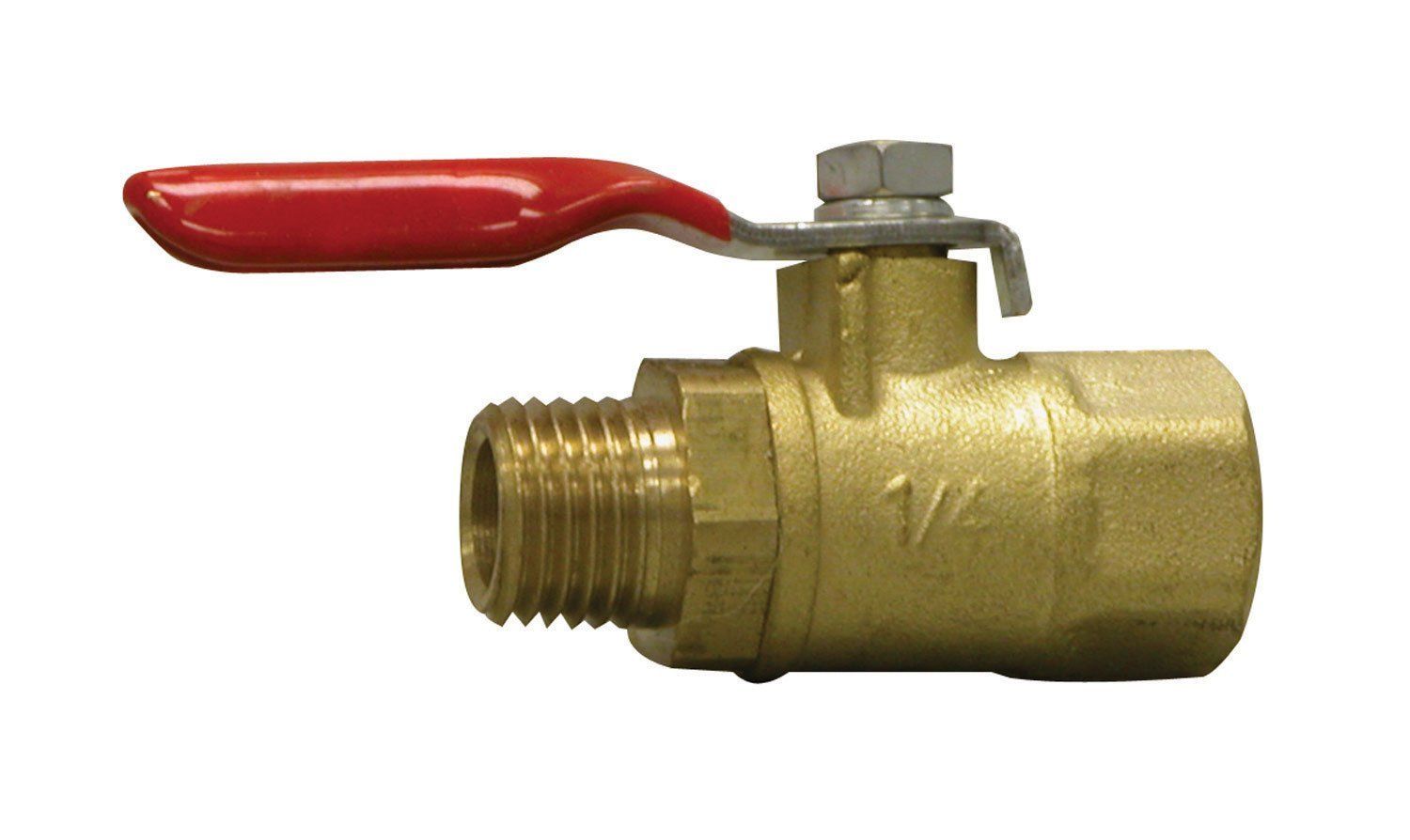

The Boss brass mini ball valve has a lever handle, and is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. This valve has a steel lever handle with a plastic sleeve for manual on/off control. Teflon gaskets reduce the risk of leakage. The NPT threads create a tighter seal than straight threads. The maximum operating pressure is 400 pounds per square inch (psi), and working temperature range is -9 to 212 degree Fahrenheit.
Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
Material | Size | Medium | Seal | Weight | Thread | Treatment |
| Brass | 1/4, 1/8. 3/4, 3/8 INCH | Water | PTFE | 20g to 50g | NPT | Lead Free |
| Stainless Steel | 1" 1 -1/2 inch | Gas | NBR | 60g to 100g | GB | Zinc |
| Alloy | 2 inch | Air | EPDM | 200g | PT | Nickel |
*SAMPLES POLICY: FREE CHARGE
*TOOLING POLICY: Charge, will refund after receive the 1st order
* MOQ: NO MOQ REQUEST for regular customers
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
