Butterfly Valve Underground
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Box |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DN50-DN200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Butterfly Valve: |
Stainless Steel Stem # 45 |
| Butterfly Valve Underground: |
DIN ANSI JIS Cns Standard |
| Underground Butterfly Valve.: |
Dn50-Dn200 |
| Stainless Steel Stem # 304: |
EPDM Rubber |
| Stainless Steel Stem # 316: |
EPDM Rubber |
| Stainless Steel Stem 316#: |
Viton / FPM Rubber |
| Connection Form: |
Flange |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Structure: |
Centre Sealing |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Household Usage |
| Material Of Seal Surface: |
Soft Sealed |
| Valve Body: |
Mould |
Product Description

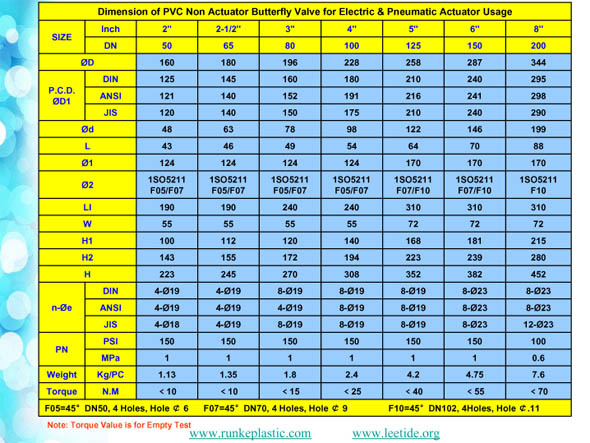

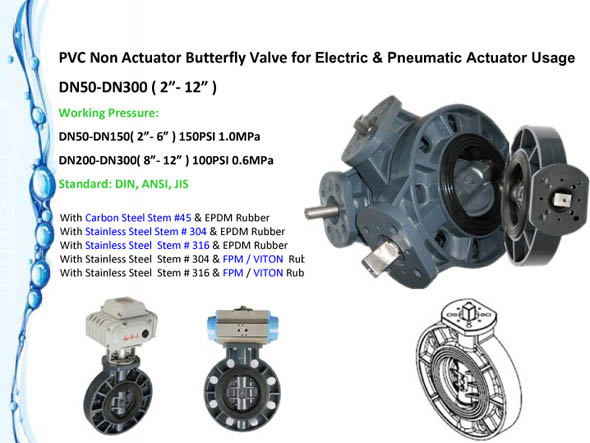

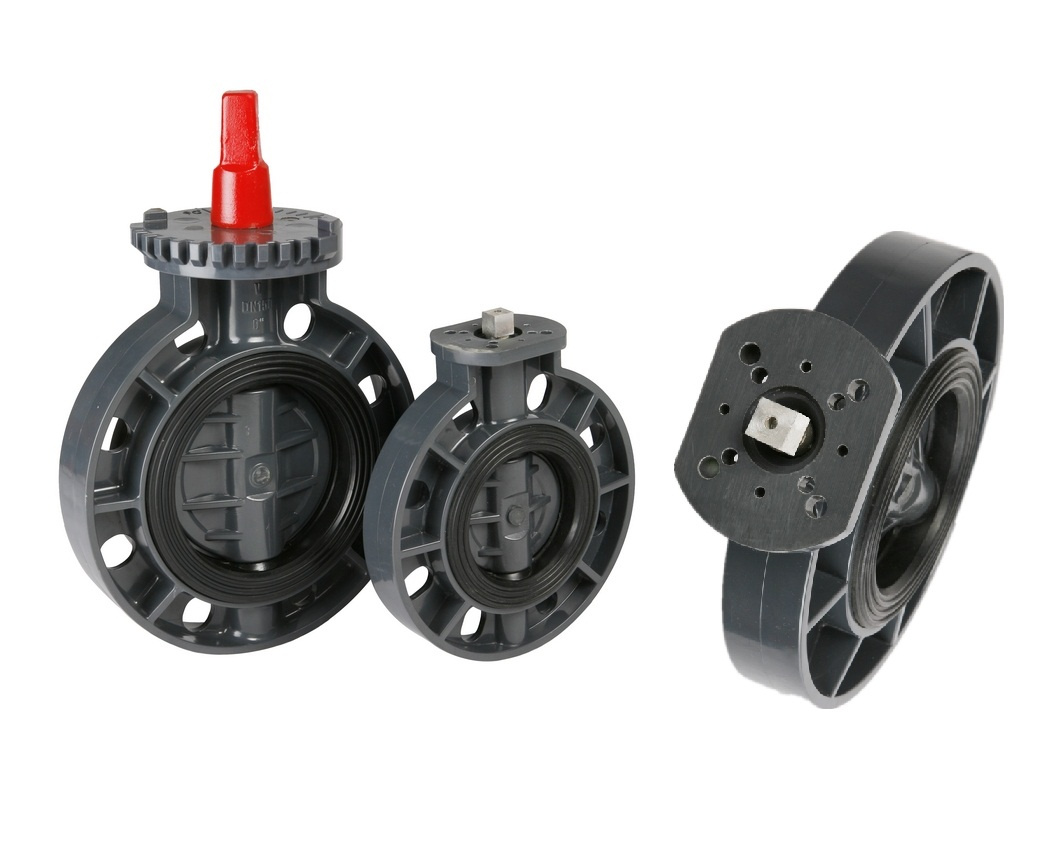

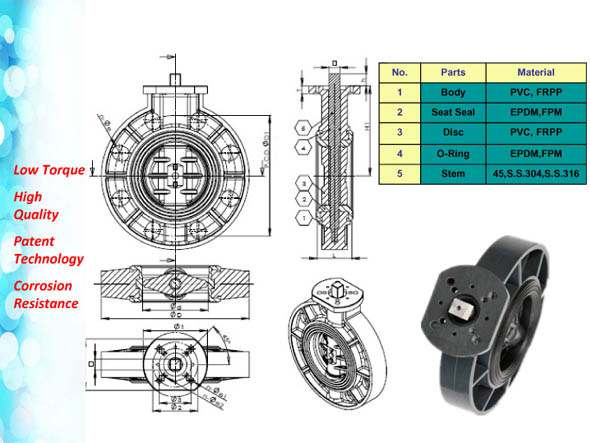

Underground Butterfly Valve with DIN, ANSI, JIS, CNS Standard From DN50-DN200 ( 2"-- 8" ). DN50 - DN150 PN10, DN200 PN6.
1. PVC Butterfly Valve DIN, ANSI, JIS, CNS Standard with Carbon Steel Stem #45 & EPDM Rubber.
2. PVC Butterfly Valve DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & EPDM Rubber
3. PVC Butterfly Valve DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & FPM / VITON Rubber.
4. FF-PP / PP-G Butterfly Valve DIN, ANSI, JIS, CNS Standard with Carbon Stem #45 & EPDM Rubber.
5. FR-PP / PP-G Butterfly Valve DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & EPDM Rubber.
6. FR-PP / PP-G Butterfly Valve DIN, ANSI, JIS, CNS Standard with Stainless Steel Stem # 304 & FPM / VITON Rubber.
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
