| Prod Model: |
Q41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |

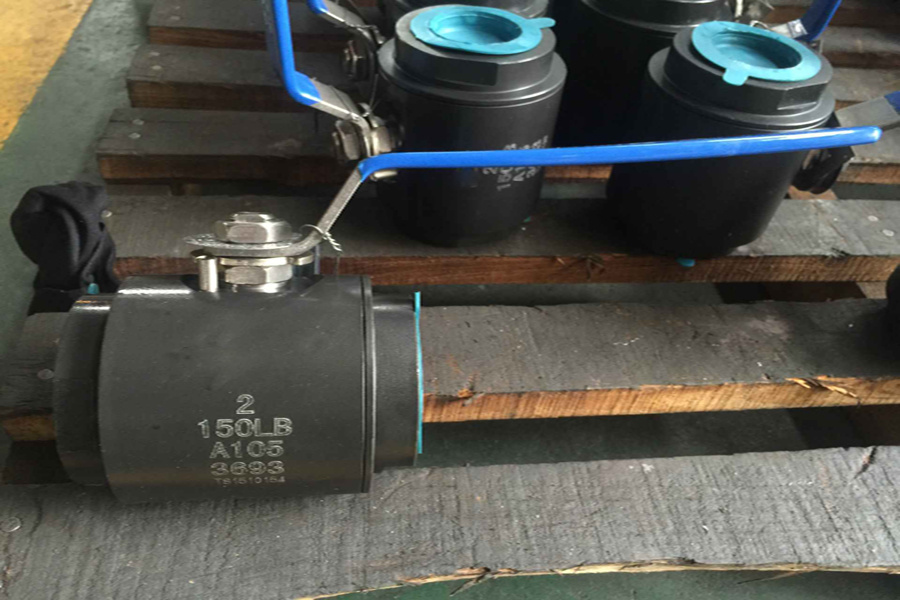

Flanded Floating Type A105 Ball Valve |
| Size: |
1/2"~16" |
| Pressure: |
150lb~2500lb |
| Certificate: |
API 6D&600, CE, ISO |
| Export Markets: |
Global |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Forged Carbon Steel |
Product Description
Flanded Floating Type A105 Ball Valve are produced strictly to API6D, ASME B16.34, with features of Fire-safe, anti-static, stem blow-o
YUKE Forged Ball Valves are designed and manufactured strictly to International Standards API 600, ASME B16.34 or DIN3202, Featured with compact structure & Low emission service.
With all advantages of Floating forged Ball Valves, Vatac Forged Steel ball valves Floating Line are offered in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. without inherent flaw of cast. Enough wall thikness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work conditions.
Floating Forged Ball Valves Manufactured by Vatac are available in types of One Piece Uni-body,
Two Piece Split Body and Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-staic and Blow-out
» Size Ranges: 1/2" through 8"
» Pressure Ratings: ANSI #150 to 600
» Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
» Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Wafer Ends
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Regular Bore
Last Update Time:2014-05-14
DESIGN & MFG | API 6D | END CONNECTION | R.F |
| PRESS-TEMP RATING | ASME B16.34 | END DIMENSION | ASME B 16.5 |
| TEST & INSPECTION | API 6D | FACE TO FACE DIM. | ASME B 16.10 |
| MARKING | MSS SP - 25 | SPECIAL REQ. | FIRE SAFE |
