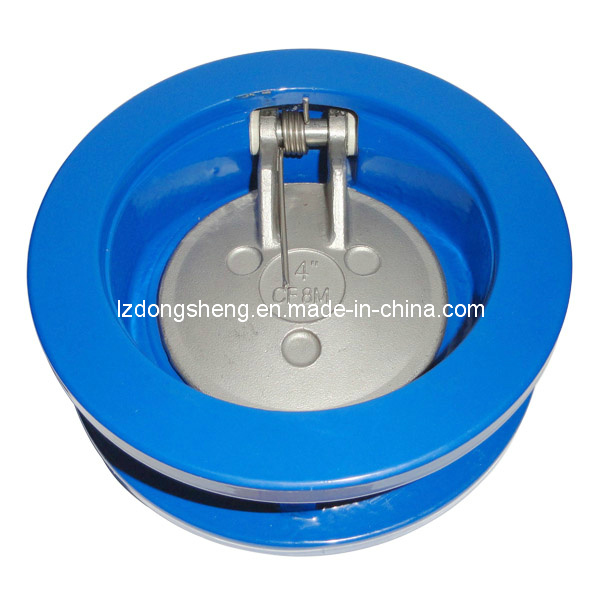

Cast Iron Wafer Single Disc Swing Check Valve Pn10/16
| Price: |
US $ 7.6-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
H74X-10Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
Dn40-Dn400 |
| Suitable Medium: |
Water, Oil |
| Flanged Standard: |
DIN,ANSI,Bs,JIS |
| Nominal Pressure: |
1.6bar |
| Type: |
Wafer Swing Check Valve |
| Testing: |
API 598; DIN3230 |
| Face To Face: |
ANSI 125/150 |
| Medium: |
Water,Food Stuff,Oil,Acid,Alkaline etc |
| Description: |
Single Plate Wafer Swing Check Valve |
| Flange: |
En1092-2, ANSI 125/150 etc |
| Material: |
Cast Iron |
| Structure: |
Swing |
| Application: |
Water Industrial Usage |
| Connection Form: |
Wafer |
| Function: |
Stop The Medium |
Product Description
WAFER SINGLE DISC SWING CHECK VALVE
Manufacturing connecting flange in the with:
ANSL CL125&150
BSTABLE D&E
BS4504PN10/PN16
JIS 10K
Material: Body: Cast iron/Ductile Iron
Disc: Stainless steel
Hanger: Carbob steel
Seal ring: Synthetic rubber
Spring: Stainless steel
Axle: Stainless steel
Hook: Steel
Normal pressure: 1.6Mpa
Sealing test pressure: 1.76Mpa
Strength test pressure: 2.4Mpa
| Normal pressure | PN16/CL125 |
| Seal test pressure | 1.76Mpa |
| Strength test pressure | 2.4Mpa |
| Suitable temperature | NBR:-10~+80°C |
| EPDM:-10-+120°C |
| VITON:-10-+150°C |
| Medium | Fresh water,Sea water,Waste water,food stuff,All kinds of oil,All kinds of acid and alkaline liquid etc. |
MATERIALS LIST
| 1 | Body | Cast Iron | GG25 |
| 2 | Disc | Stainless steel | 304SS,316SS |
| 3 | Eye screw | Carbon steel |
|
| 4 | Seat ring | Rubber | NBR,EPDM,VITON |
| 5 | Spring | Stainless steel | 304SS,316SS |
| 6 | Axle | Stainless steel | 2Cr13 |
Factory Show

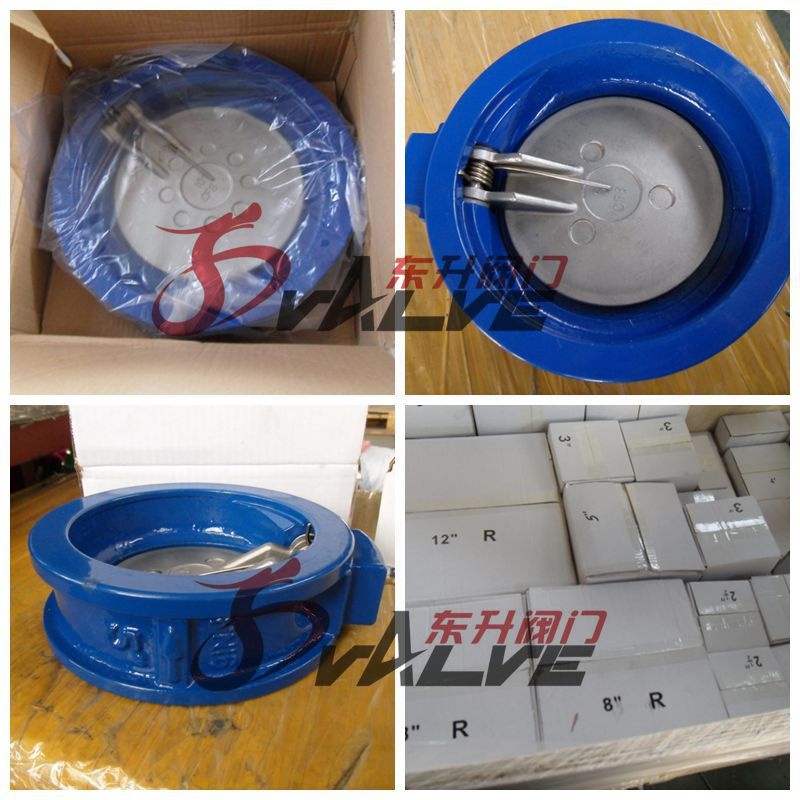

Product Package
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.
We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
