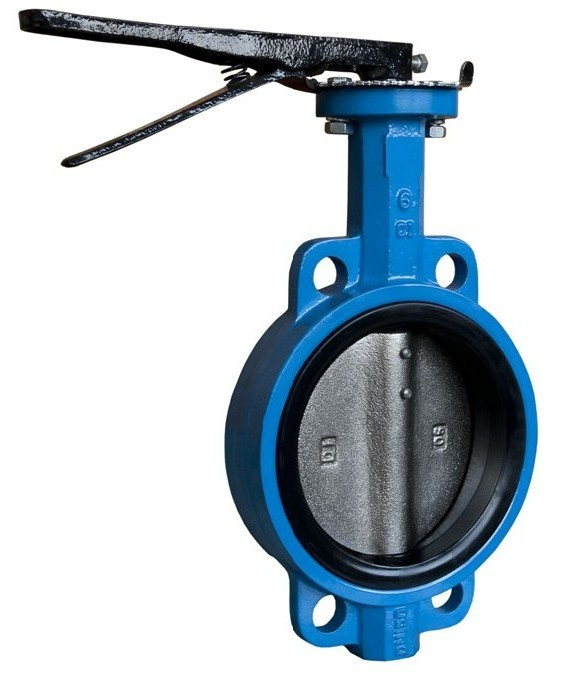

Cast Iron Wafer Type Butterfly Valve
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BV-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1 1/2"~24" |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Flange |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Household Usage |
Product Description
Wafer type butterfly valve with pin
Size: 1 1/2"~24"
Rating: PN10 PN16 Class 125/150 /5K 10K
Material: Body: Cast iron/ductile iron disc: DI /304/316
Face to face: ISO5752 /API 609/DIN 3202
Flange: AS2129 table D/Table E /ASME B16.1 125# /ASME 16.42 class 150/BS 4504 /BS10 /DIN2501/ISO 7005-2 JIS 2220
material of part : body:
？
Cast iron ？ASTM A 126 CL.B/GG25
Ductile iron ？ASTM A 536 65-45-12/GGG40
Stainless steel ASTM A 351 CF8 CF8M
Carbon steel ASTM A216 WCB
Disc:
Ductile iron ？ASTM A 536 65-45-12/ GGG40
Stainless steel ASTM A 351 CF8 CF8M
Carbon steel ASTM A 216 WCB
Bronze ？ASTM B 148 C 954
Coated ？NYLON/PTFE
Stem:
Stainless steel ASTM A182 410 416 420 431 304 316
Alloy ？Monel k500
Seat:
EPDM ？ ？-15 degree~+140 degree
NBR ？ ？ ？-10 degree~+80 degree
VITON ？ -20 degree~+150 degree
PTFE ？ ？-15 degree~+120 degree
Bushing:
PTFE
Bronze
Taper Pin:
Stainless steel ASTM A 182 410 416 420 431 304 316
Alloy ？Monel k 500
o-ring:
EPDM
NBR
VITON
2. Face to Face standard
ISO 5752
API 609
DIN 3202
3. Flange Drilled？standard
AS 2129 Table D/Table E
ASME B 16.1 Class 125& ASME B 16.42 Class 150
BS 4504 PN 10 / PN 16
BS 10？Table D/Table E
DIN 2501 PN 10/ PN 16
ISO7005-2？PN 10/ PN 16
JIS 2220 5 K /10 K
4.Pressure Test :
Nominal Pressure ？ ？1.0 Mpa /1.6 Mpa
Shell Test Pressure ？1.5 Mpa /2.4 Mpa
Seal Test Pressure ？ 1.1 Mpa/1.76 Mpa
LIANKE, since the foundation in year 1999, has been a leading designdevelopment supply valves company. The main products include Ball Valve, Butterfly Valve, Gate Valve, Globe Valve, Check Valve, Kamlock and Pipe Fitting, export to 35 countries and regions. They are widely used in chemical, petrochemical petroleum. Petroleum. Oil and gas pharmacy. Marine etc industries.
Our customers have responded positively and they have come to rely on our products'high quality services competitive price and fast deliver time. As usual we control some stock for the fasting deliver.
Our mission is Quality first, Customer highest, service first-rate. Every customer is of great importance for Ossp valve. We are committed to serve our customers with advanced ideas elaborated planning, efficient management and reliable service. To service our customers wholeheartedly is not just a slogan, but the most important issue of our enterprise behavior. With your support, ossp valve will continue to guarantee excellence in the future.
LIANKE, since the foundation in year 1999, has been a leading designdevelopment supply valves company. The main products include Ball Valve, Butterfly Valve, Gate Valve, Globe Valve, Check Valve, Kamlock and Pipe Fitting, export to 35 countries and regions. They are widely used in chemical, petrochemical petroleum. Petroleum. Oil and gas pharmacy. Marine etc industries.
Our customers have responded positively and they have come to rely on our products'high quality services competitive price and fast deliver time. As usual we control some stock for the fasting deliver.
Our mission is Quality first, Customer highest, service first-rate. Every customer is of great importance for Ossp valve. We are committed to serve our customers with advanced ideas elaborated planning, efficient management and reliable service. To service our customers wholeheartedly is not just a slogan, but the most important issue of our enterprise behavior. With your support, ossp valve will continue to guarantee excellence in the future.
