| Prod Model: |
BYL-6605 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
6-28degree |
Product Description

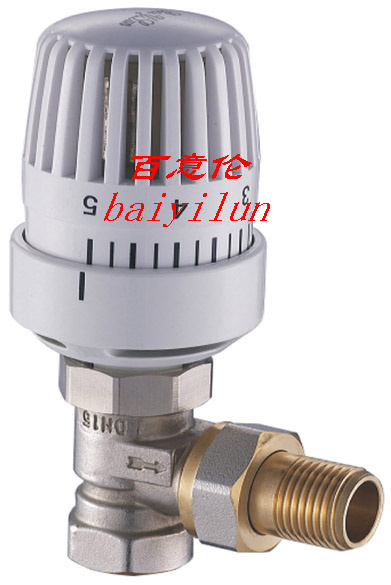

CE Approved thermostatic radiator valve BYL-6605
1.Approved to EN215
2.Passed CE/ISO9001/ISO14001
3.Temperature range:6-28 °C
4.Connection:M30x1.5
Limitable and lockable
Hysteresis:0.5K
Liquid sensor
Frost protect " * "
Guarantee: 3 years
OEM branding available
DN15/20/25 available
Brass valve body, plastic handle
Metrail:ABS/ PC Alloy(head); Brass (valve body)- Chrome/Nickel plated
Can be mounted vertically or horizontally
Our sensor has got ROHS certificate

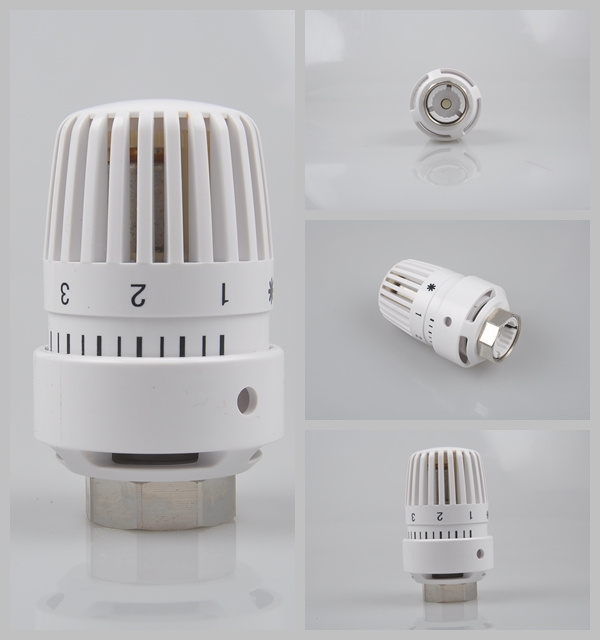

1.Temperature sensorTemperature hysteresis:1.0 k
Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 degree
Temperature extent:6-28°

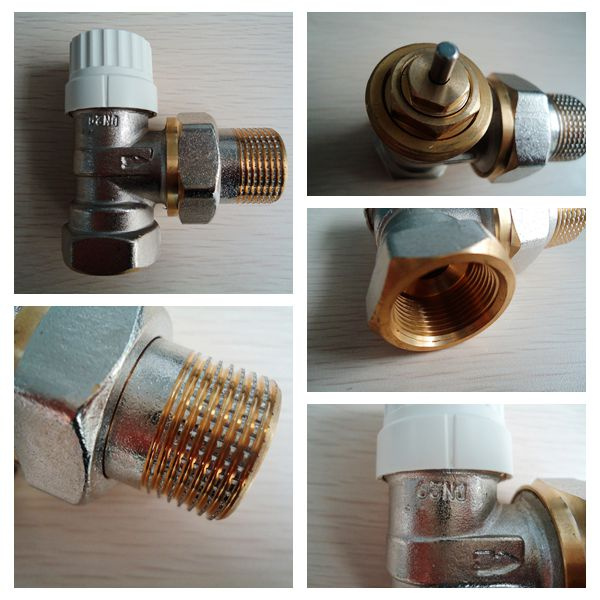

2.Thermostatic valve bodyMade of brass, easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 bar
Certificate: EN215 ,CE ,ISO9001:2008, ISO14001:2004
Size:DN15/DN20/DN25
Angle/Straight Valve
DN15
straight valve |
DN15
angle valve |
DN20
straight valve |
DN20
angle valve |
DN25
straight valve |
DN25
angle valve |
DN15
3 way |
DN20
3 way |
DN25
3 way |
|
245 g |
230 g |
315 g |
300 g |
390 g |
370 g |
360 g |
455 g |
600 g |
