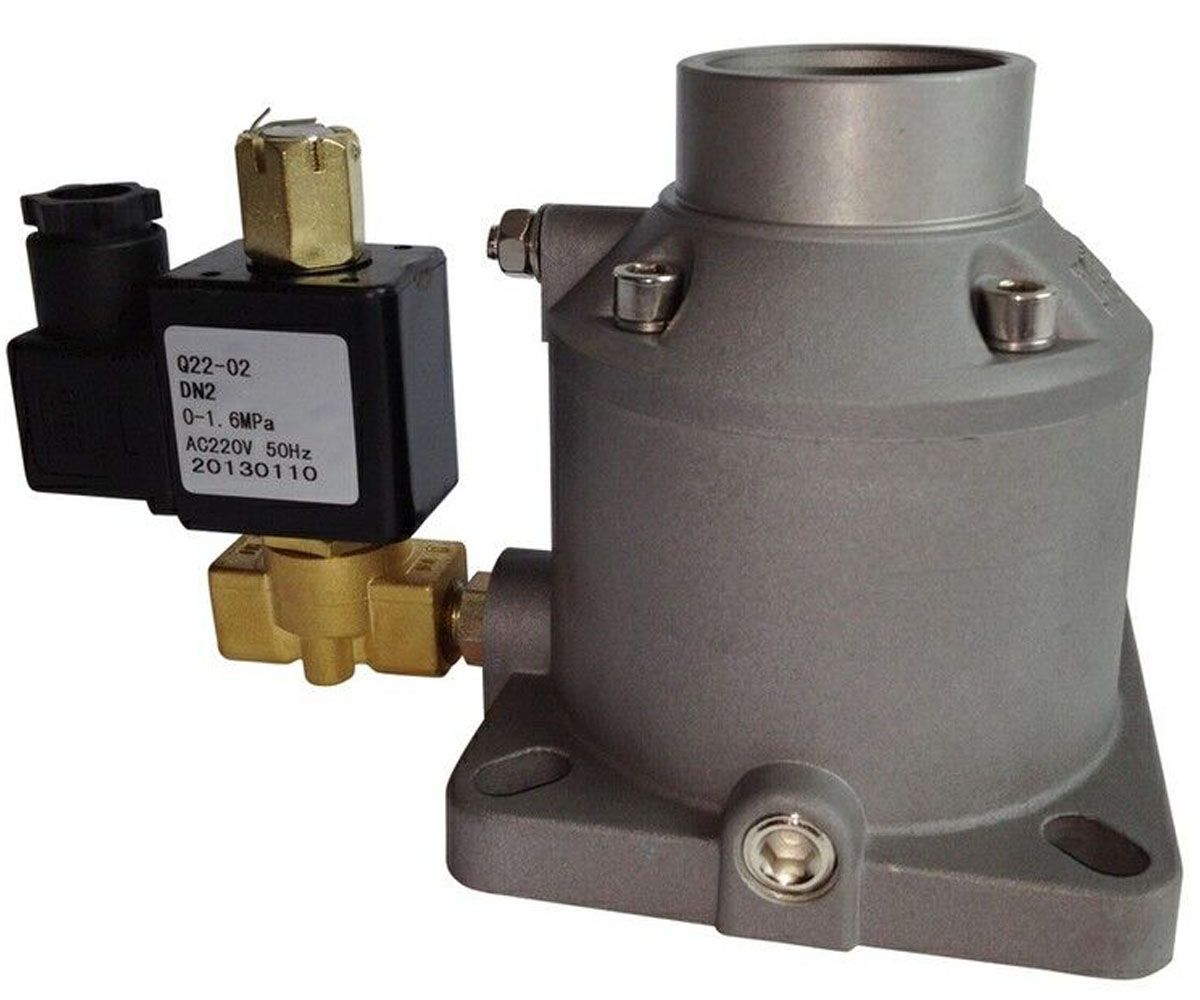

China Supplier Screw Air Comrpessor Parts Jj-40L Intake Valve

Name: China Supplier Screw Air Comrpessor Parts Jj-40L Intake Valve
Brand: Valve Industry
SKU: 768456765
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Hongkong Jiubei Industry Limited

Showroom Product Company Profile

Prod Model:	replacement parts
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Description:	Intake Valve
MOQ:	1PC for Intake Valve
Model Number:	20HP Jj-40L
Payment Term:	100% Payment in Advance
Lead Time:	3-5 Working Days for Intake Valve Kit
Material:	Rubber+Stainless Steel
Element:	Spring, O Ring
Package:	Polybag for Intake Valve Kit
Shipping Term:	EXW, FOB, CIF

Product Description

product information

Compressor Valves

Offers a full range of application-engineered reciprocating compressor valves that combine the highest possible flow efficiency with maximum service life. with offering a complete line of premium quality valves to satisfy most application requirements.

brief introduction of intak valve

Technical data

Model	JJ-40L	JJ-50L	JJ-65L	JJ-85L	JJ-120L	JJ-160L
Nominal Diameter (mm)	40	50	65	85	120	160
Adjust	when unloading, pressure in can be adjust.
Control system	1.Check valve model 2.Switch model 3.Adjusting model
Flange (Φ:mm)	4-Φ9-TKΦ104~Φ116	4-Φ17-TKΦ135~Φ150	4-Φ17-TKΦ143~Φ170	4-Φ17-TKΦ160~Φ180	8-Φ17-TKΦ210~Φ225	12-Φ18-TKΦ280~Φ295
Max Flow (m³/min)	2.5	5	8	14	25	46
Max pressure	15(bar)
Solenoid Valve	AC220V 50/60HZ (can be custom-made as per your need)
Air inlet Diameter (mm)	Φ48	Φ62	Φ78	Φ100	Φ150	Φ1

Business scope
Mechanical Seal :	Temperature Sensor	Pressure Sensor
Maintenance Kits	Solenoid Valve	Thermostatic Valve
Air intake	Wheel Gear	Pressure Maintaining Valve
Air Filter	Oil Separator	Oil Filter
Oil Level Indicator	Circuit Board Master Control	Air intake valve
Used air compressor	Air-end	Oil level indicator

maintenance Service Kit
high quality compressor parts
oil stop valve kit
preventive maintenance kit
service kit for atlas copco
Including valve,shaft seal, coupling,drain,water separstor,lubricant

list of atlas copco service kit

NO	Model	Description	P/N
1	GA11-22	Unloading valve kit	2901000201
2		Min pressure valve kit	2901000600
3		Drain valve kit	2901071200
4	GA30-37-45	Drain valve kit	2901021900
5		Min pressure valve kit	2901021800
6		Check valve kit	2901021200
7		Oil stop valve kit	2901021700
8		Unloading valve kit	2901021100
9		Thermostat valve kit	1619733300
10	GA55-75-90C	Oil check valve kit	2901007200
11		Check valve kit	2901007700
12		Min pressure valve kit	2901021800
13		Unloading valve kit	2901044800
14		Thermostat valve kit	2901007400
15		Drain valve kit	2901084500
16		Drain valve kit	2901007300
17		Oil stop valve kit	2901108400
18		Unloading valve kit	2901029900
19	GA90-250	Test valve kit	2906009300
20		Oil check valve kit	2906009400
21		Min pressure valve kit	2906009600
22		Regulating valve kit	2906009100
23		Thermostat valve kit	1619756000
24		Unloading valve kit	2906056300
25		Connector kit	2906057100
26		Drain valve kit	2901074900
27	GA22+	Unloading valve kit	2902016100
28		Unloading valve kit	2902016100
29		Check valve kit	2901050301
		Oil stop valve kit	2901021701
30		Min pressure valve kit	2901145300
31		Thermostat valve kit	2901161600
32	GA37+	Unloading valve kit	2901162200
33		Unloading valve kit	2901162200
34		Check valve kit	2901050301
35		Oil stop valve kit	2901108401
36		Min pressure valve kit	2901145300
37		Thermostat valve kit	2901161600
38	GA75+	Unloading valve kit	2901146300
39		Unloading valve kit	2901146300
40		Check valve kit	2901050301
41		Oil stop valve kit	2901108401
42		Min pressure valve kit	2901145300
43		Thermostat valve kit	1622375980

FAQ

Q1: How can I get the quotation?
A: you can advise us the part number for checking, and we will quote to you soon by email

Q2:What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)

Q3:How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon

Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us by skype or mail, and we will revise according to your requirement

Q5:What is the terms of payment ?
A: T/T, Western Union, paypal(need 5% paypal fee)

OUR SERVICE

24 hours a days, 7 days a week

1-stop purchasing

Competitive price, good quality and efficient with perfect after-sale service

We accept your specific order and do everything we can to meet your requirement.

Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".

We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.

Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
