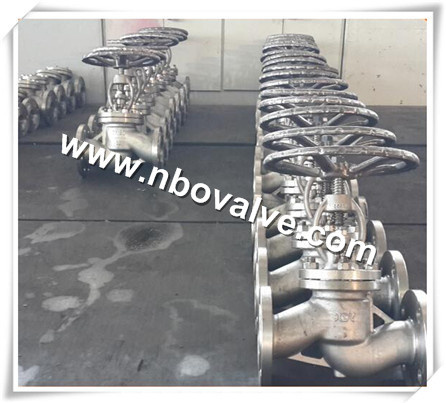

Class 300lb 4" Handwheel Wcb Flanged Globe Valve
| Price: |
US $ 1350/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
J47H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Connection End: |
RF, Rtj, Bw, NPT |
| Inspection Test: |
API598 |
| Pre-Temp. Rating: |
Asme B16.34 |
| Certificate 1: |
API600 |
| Certificate 2: |
ISO 9001: 2008 |
| Certificate 3: |
CE |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
JIS |
Product Description
Design Feature:
Stem Design:
The stem is of integral forged design.The minimum diameter of the stem shall per the standard requirement.
Stem Nut:
Usually, the stem nut is made of ASTM A439 D2.It is also can be made of cooper alloy if being requested by the customer . For large sized globe valve, rolling bearing is fitted at the two sides of stem nut in order to minimize the open and close torque of the globe valve.
Special globe valve:
Besides the common globe valves, ONEV also makes cryogenic globe valve, Bellow sealed globe valve, Jacketed globe valve, etc.
BS 1873 Cast Steel Globe Valve Conform to BS1873, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25
Construction is as follows:
- Regular Port |
| - Outside Screw and Yoke(OS&Y) |
| - Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet |
| - Backseat |
| - Solid Disc(Plug, Ball/Spherical, Throttling) |
| - Butt Weld Ends to ASME B16.25 |
| - Flanged Ends to ASME B16.5 and B16.47 A/B |
Bellow Seal lobe Valve:
Pressure: PN 1.6mpa--PN 16 mpa
Temperature: -29 ~+350C
Pressure Sealing Globe Valve:
Pressure: Class 600--Class 2500
Size: 2"--12"
Main Part & Materials
Part Names | Part Materials |
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS304+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C
|
Our Recently Exhibitons:
The OTC exhibition ( May, 2015 Houston)
The Valve World Expo ( Sep. 2014,German)
The MIOG exhibition ( May, 2014, Russia)
The OTC exhibition ( May, 2015, US)
The Valve Word Expo ( Sep. 2013, China)
Should you need the further information or queston on the valve, don't hesitate to contact us.
Zhejiang Number One Valve Co., Ltd(ONEV) has been for 15 years in Valve manufacture, design, sales and service. The company covers an area of 18000 square meters.
The main products of ONEV are Ball valve, Gate valve, Globe valve, Check valve, Plug valve, Butterfly valve, etc., API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB. Standard.
ONEV has been accredited to CE, API, ISO 9001: 2000, international qualified certificates. Has set up the perfect quality control and guarantee system to ensure excellent quality and best service.
ONEV for years experience and service, in Chinese industry line and important projects of oil refining, gas pipelines, petroleum, electric power, pharmaceuticals etc. Meantime, our products make a broad market in more than twenty countries over the world, distributed in Europe and United States, South American, Middle East, Southeast Asia, Africa, and have enjoyed good reputation and trust. We will try our best to supply superior quality products, satisfied after-sale service and technical supports to customers.
ONEV always persist in the idea of "All for customer satisfaction" to become bigger and stronger for country valve construction. We warmly welcome all the partners come to co-operate with us and make a brilliant future.
Zhejiang Number One Valve Co., Ltd(ONEV) has been for 15 years in Valve manufacture, design, sales and service. The company covers an area of 18000 square meters.
The main products of ONEV are Ball valve, Gate valve, Globe valve, Check valve, Plug valve, Butterfly valve, etc., API, ANSI, BS, DIN, NF, JIS, JPI, GB, JB. Standard.
ONEV has been accredited to CE, API, ISO 9001: 2000, international qualified certificates. Has set up the perfect quality control and guarantee system to ensure excellent quality and best service.
ONEV for years experience and service, in Chinese industry line and important projects of oil refining, gas pipelines, petroleum, electric power, pharmaceuticals etc. Meantime, our products make a broad market in more than twenty countries over the world, distributed in Europe and United States, South American, Middle East, Southeast Asia, Africa, and have enjoyed good reputation and trust. We will try our best to supply superior quality products, satisfied after-sale service and technical supports to customers.
ONEV always persist in the idea of "All for customer satisfaction" to become bigger and stronger for country valve construction. We warmly welcome all the partners come to co-operate with us and make a brilliant future.
