Product Description
Specifications

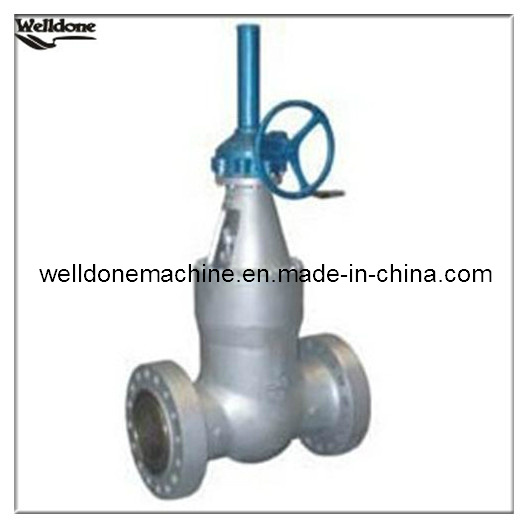

Pressure Seal Gate Valve
1. Size: 2"~60"
2. Class: 600~2500Lb
3. Design: ASME B16.34/API 600
4. Material: WCB, LCB, CF8, CF8M
Class 600~2500 pressure seal gate valve
OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, API600, API6D, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D
A. Back up ring: Absors thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing.
|
Material List |
|
NO. |
Part name |
Material |
|
23 |
Grease nipple |
Brass |
|
22 |
Grub screw |
Carbon steel |
|
21 |
Hand wheel nut |
Carbon steel |
|
20 |
Hand wheel |
Malleable lron /cast steel/ductile lron/fabricated steel |
|
19 |
Yoke nut |
Carbon steel/SS |
|
18 |
Eye bolt and nut |
A 193 B7/A194 2H~A193 B8/A194 8 |
|
17 |
Pin |
Carbon steel/stainless steel |
|
16 |
Stem Nut |
A 439-D2/cu-alloy |
|
15 |
Gland flange |
Carbon steel/equivalent to body material |
|
14 |
Gland |
Stain less steel |
|
13 |
Gland bush |
See body material |
|
12 |
Back seat |
|
11 |
Stem |
|
10 |
Seat ring |
|
09 |
Wedge |
