| Prod Model: |
223/224 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
Dn40 to Dn2000 |
| Material Of Seal Surface: |
Soft Sealed |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Application: |
Water Industrial Usage |
| Work Pressure: |
Full Vacuum to 20bar |
| Connection Form: |
Wafer, Lug |
| Working Temperature: |
-35-200 Centigrade |

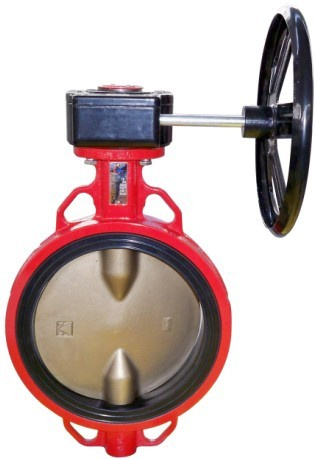

Product Description
1. Stainless steel blow-out proof ring, work in whole life of the valve.
2. Unique groove on top flange getting rid of wetness under actuator.
3. Low torque figures reduce cost for actuator and ensure longer life
Size range: 1 1/2" to 80"
Pressure rating: Full vacuum to 20bar
Flange accomodation: EN1092 PN10/PN16 & ANSI 125/150
Face to face: EN558 series 20
Body: Cast iron, ductile iron, carbon steel, stainless steel
Disc: SS201, SS304, SS316, SS316L, aluminium bronze, Hastelloy, dual steel, super dual steel
Seat: NBR, EPDM, Oil & Acid & Alkali resitant VITON-A, Steam resitant VITON-B, Hypalon, PTFE
Operation: Hand lever, gear box, pneumatic actuator, electric actuator
Coreline Valve is focus on high quality valve and control system.
Our product quality system is strictly certified by CQC ISO9001, PED CE is certified by DNV, Valve surface quality in line with NORSOK marine requirements, Valve rubbers have approval of DVGW\KTW\WRAS and FDA.
Professional painting equipment in house. Surface treatment C3, NORSOK etc and WRAS certified power coating is also available.
We can also produce some special type of valves on OEM basis in strictly accordance to customer's drawings and requirements.
