| Prod Model: |
CTF-X8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: |
Standard |
| Power: |
Manual |
| Structure: |
Shutoff |
| Pressure: |
High Pressure |
| Material: |
Brass |
| Temperature Of Media: |
Normal Temperature |
| Port Size: |
Inlet DIN 477 W28.8*1/14tap |
| Loading Port: |
Shanghai Port |
| Delivery: |
Within 10 Days |
Product Description

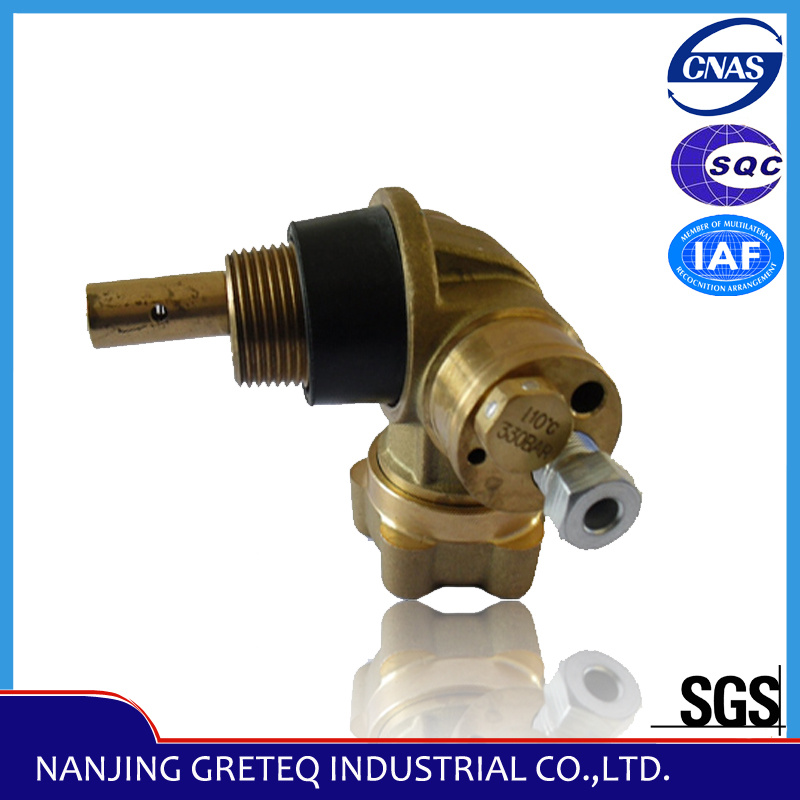

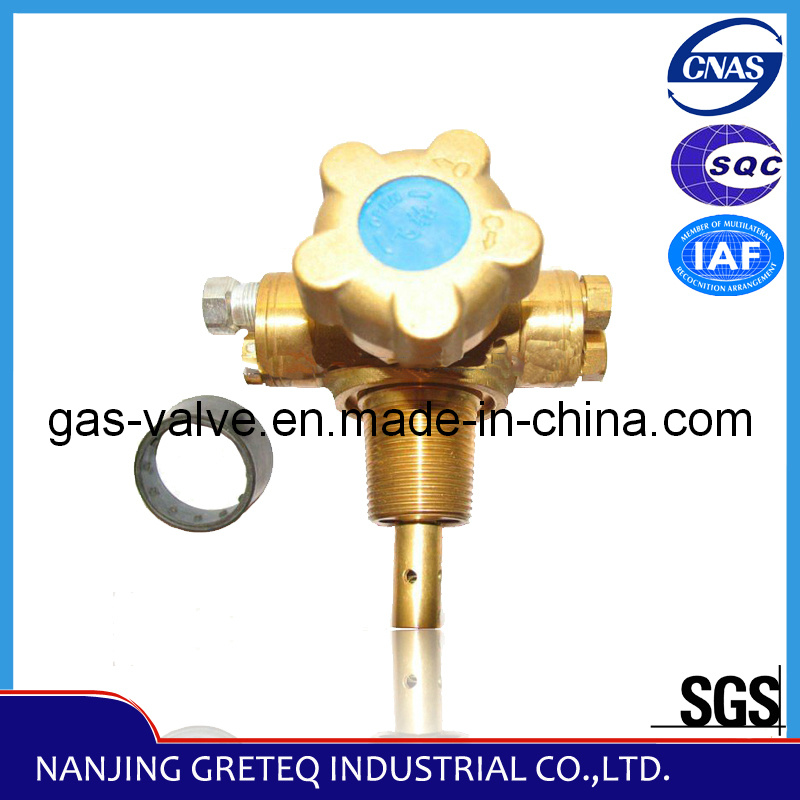

CTF-X8 CNG Safety Manual Vehicle Cylinder Valve
This type of CNG valves are used in vehicle(car) cng cylinders.
It has safety devices on both side, when one of the condition reach, such as the pressure and temperature, the safety device will be action.It will be more safety than other type.Specification:1)Suitable Medium: CNG?
2)Working Pressure: 20Mpa?
3)Diameter: DN6mm
4)Outlet joint thread: M12*1
5)Joint thread to cylinder: DIN477 W28.8*1/14tap
6)Safety device: Pressure device: 33±2MPa, Temperature device: 110°C±5°C
Packaging &DeliveryPackaging Details: 0.7KG/carton with packing, ?
25sets/carton, 17KG/carton 35*42*15cm
Delivery Detail: within 20 days

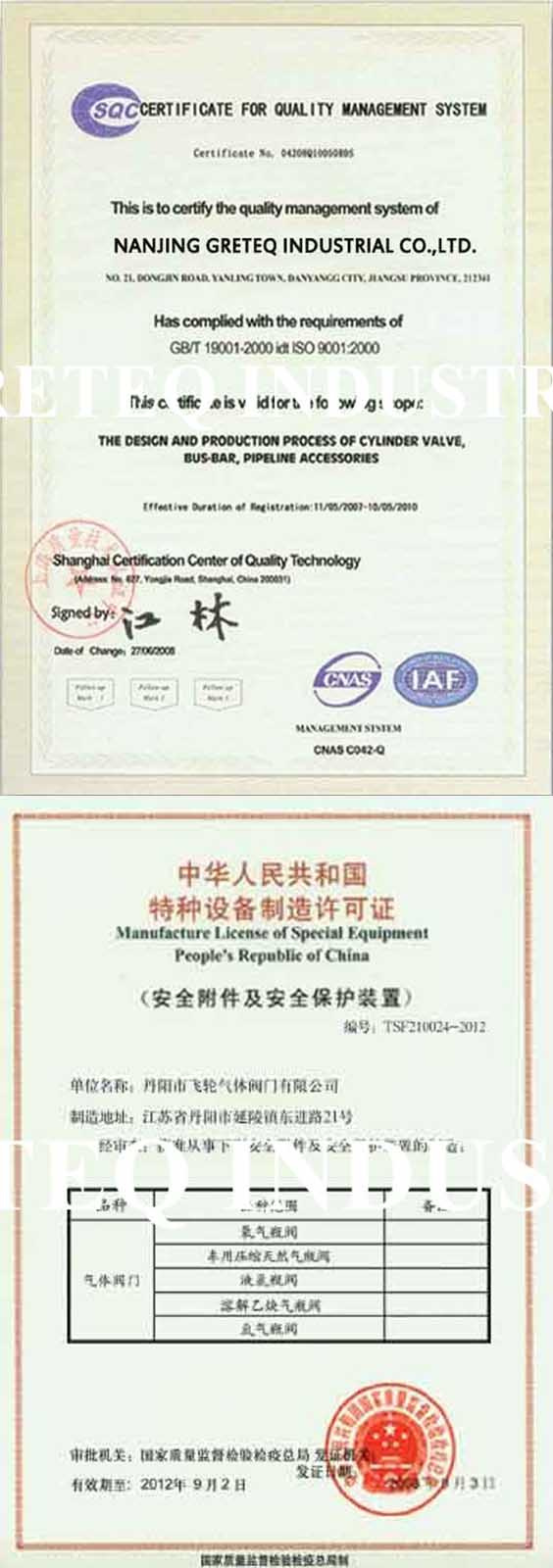

Quality certificateSQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012
APPLICATIONS:
This kind of vavles are usually used in CNG cylinders. Such as the cylinders used in CNG vehicles, cars.?
The thread can be produced according to your requirment.?
This type of CNG valves are used in vehicle(car) CNG cylinders.?
It has safety devices on both side, when one of the condition reach, such as the pressure and temperature, the safety device will be action.?
It will be safer than other type.
| NO. | Type No. | Produce Name | suitable
Medium | PN
(Mpa) | DN
(mm) | Outlet thread(mm) | Jiont Thread to cylinder
(mm) | Temp./Pressure
of safety device |

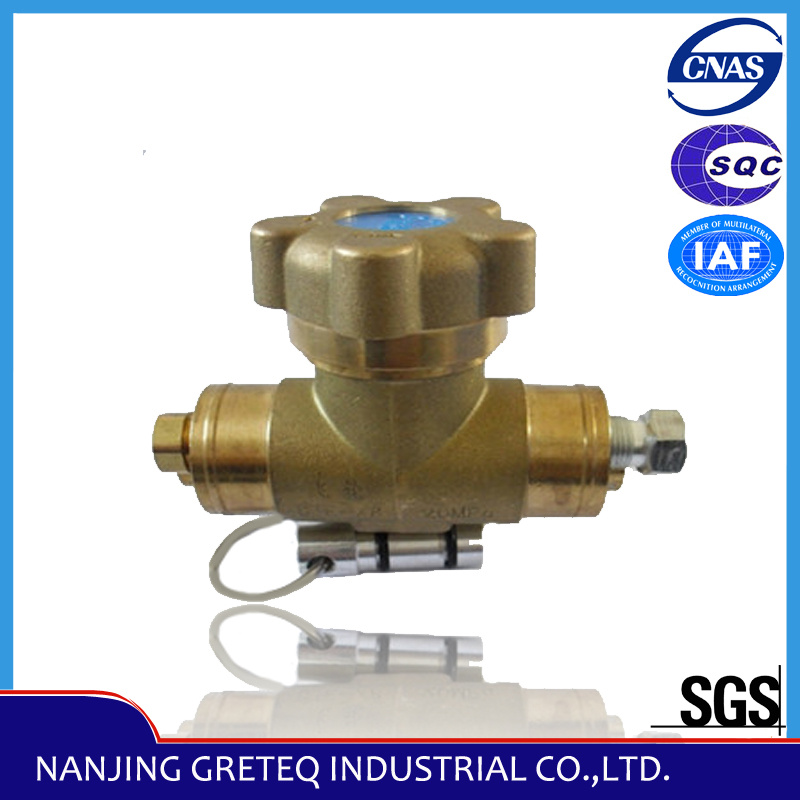

| 1 | QF-T3 | Natural Gas Shutoff Valve(20MPa 25MPa CNG pipeline Valve) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 12 | / |
| 2 | QF-T3A | Brass CNG Car 6mm Pipe filling Valve(cng car parts) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 12 | / |
| 3 | QF-T3A2 | Nature Gas CNG Fill Valve(6mm cng pipe parts ) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 6 | / |
| 4 | QF-T3B | CNG Car Valve(3-way pipe shutoff valve,20MPa ,25MPa valve) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 12 | / |
| 5 | QF-T3C | CNG Charging Valve (CNG car valve) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 12 | / |
| 6 | QF-T3C2 | Gas Precharge Valve(6mm ,8mm pipe kit) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 12 | / |
| 7 | QF-T3C3 | Gas Precharge Valve(6mm ,8mm pipe kit) | CNG | 20 | 4 | NPT1/4 | Piston Type Hole 12 | / |
| 8 | QF-T3C5 | Natural Gas Pipeline Valve for CNG car(CNG car parts) | CNG | 20 | 4 | Ferrule Type Hole 6 | Piston Type Hole 6 | / |
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.
In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.
In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.
We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
