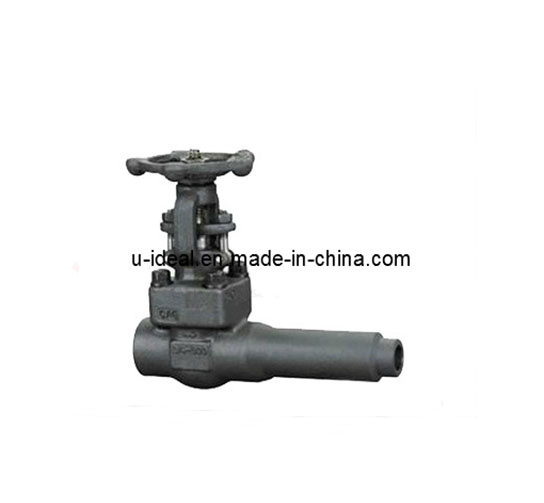

Da-466 Extended Body Gate Valve
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
DA-466 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" - 2"or Dn12 - Dn50 |
| Pressure Rating: |
Class150 - Class2500 or Pn16 - Pn420 |
| Mat: |
A105, Lf2, F11, F22, F5, F304, F304L, F316, F316L |
| Connection End: |
Asme B2.1, Asme B16.11 |
| Operated By: |
Handwheel |
| Material: |
Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
Product Description
Extended Body Gate Valve:
1)Standards:
A)Design&Manufacture: API 602, BS 5352, ASME B16.34
B)Face to Face: MSS SP-84
C)Connection End: ASME B2.1, ASME B16.11
D)Test and Inspection: API598
2)Sizes: 1/2" - 2" or DN12 - DN50
3)Pressure Rating: Class150 - Class2500 or PN16 - PN420
4)Material: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
5)Operated by: Handwheel
Connection Code: K------Screwed Weld K1------Inclined End K2------A Full Strength End K3 ------Socket Weld End
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) |
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 410 & 403 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS + graphite | SS + PTFE |
| 5 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 6 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 |
| 8 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 9 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | Nameplate | SS |
| 11 | Handwheel | A197 |
| 12 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 420 |
| 14 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 15 | Gland | A276 410 | A182 F304(L) | A182 F316(L) |
| 16 | Stem Packing | Flexible Graphite | PTFE |
| 17 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3CH3OOH etc |
| Suitable Temperature | -29 425 | -29 550 | -29 180 |
