Dcl Al-Alloy High Quality Electric Control Actuator Valve
Price: |
US $ 200/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
DCL-05 series 20s/50Nm |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Dcl |
Body Material: |
Al-Alloy |
Time/Torque: |
20s/50nm |
Protection Class: |
IP67 |
Certificate: |
CE,RoHS,CSA |
Type: |
on/off, Modulating |
Product Description

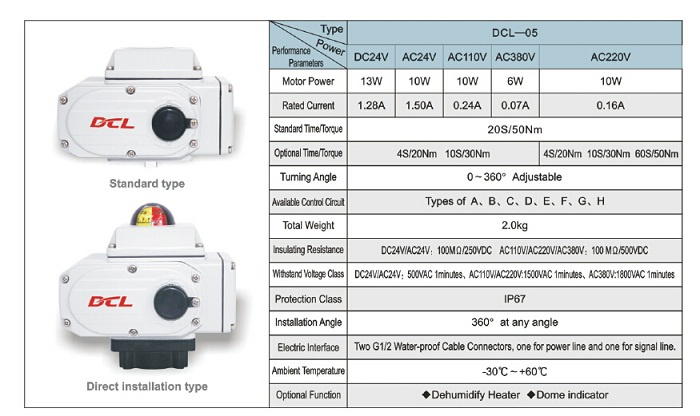

Type DCL-05 Series electric actuator Performance Parameters:
Motor power: 24VDC 24VAC 110VAC 220VAC 380VAC
Standard time/Torque: 20s/50Nm
Optional Time/Torque: 4s/20Nm 10s/30Nm, 60s/50Nm
Turning Angle: 0~360 degree
Type: A/B/C/D/E/F/G/H (E type adjusting type)
Total weight: 2.0kg
Protection Class: IP67
Installation angle: 360degree at any angle
Electric interface: Two G1/2 water-proof Cable connectors, one for power line and one for signal line.
Optional Fuction: Heater for eliminating mositure, handle, dome indicator, over-torque switch.

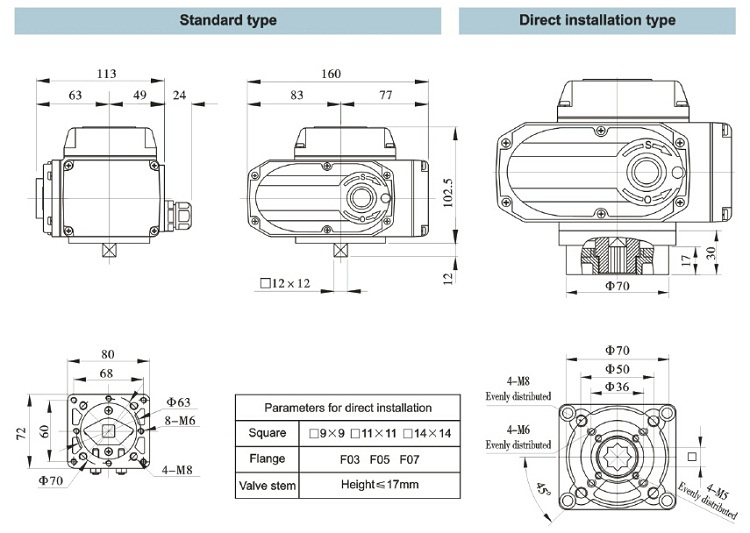

Square: 9*9 11*11 14*14
Flange: F03 F05 F07
Valve stem: Height< =19mm

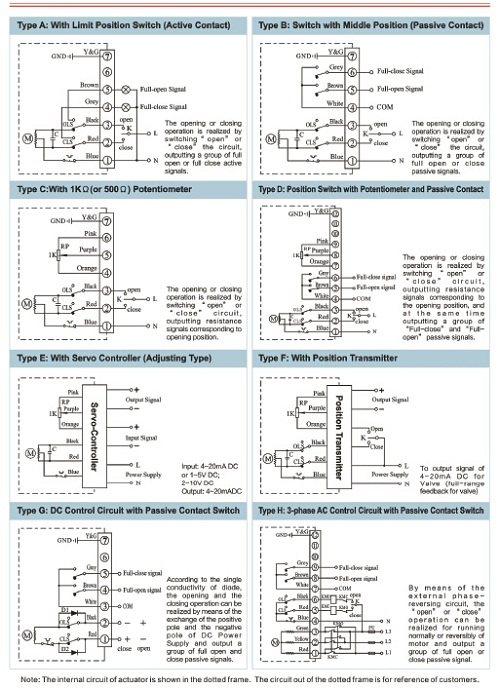

Control Circuit :
Example of Type choosing:Type of Model: DCL -10 E /30S /AC 220V /Z G |
10: Actuator output torque ÷ 10 | G: Over-torque option, otherwise it's"O" |
E: Type of control circuit | Z: Mounting : Z- direct mounting; O-standard |
30S: 0~90° Acting time | AC220V: Type of power supply |
Tips: Contact us if you can't figure the type you need.
Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.
DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
In papermaking industry, the rising of material cost, environmental protection and frequent action require our company to develop and provide various actuators with high precision and good reputation. Our products have played a good role of progress of quality and reduction of cost to the papermaking industry, and taken a great market share.
In metallurgical industry, due to the requirements of energy saving and automation, re-circulation and utilization of blast furnace gas, as well as high ambient temperature; It gives a higher requirement to actuator. Especially in the application of steam pipes, it is not only asked to increase the height of support, but also asked to have higher and more requirements to the motor of actuator, driving mechanism and servo control system. Our company has many successful references in this field.
In the field of ocean-going ship, due to the limit of installation space and the aggression of mist and sea water, it is required to have smaller, better sealed and anti-corrosion actuator, as well as higher reliability due to ocean-going. DCL electric actuator is warmly welcomed by the customers in this field and becomes their first choice with its protection class of IP68, compact construction, super light and good reliability.
We think we can not only provide to the market the good quality products, but also present our responsibility to the society, which we think is the most important. We ask all of our employees to keep in mind to put the quality first, be faithful to his job, and be responsibility to anything done.
Quality control has a long way to go. It is a management culture and a way for the company to exist. The quality consciousness should be brought into the mind of each employee and displayed in each action of his daily work.
Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.
DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
In papermaking industry, the rising of material cost, environmental protection and frequent action require our company to develop and provide various actuators with high precision and good reputation. Our products have played a good role of progress of quality and reduction of cost to the papermaking industry, and taken a great market share.
In metallurgical industry, due to the requirements of energy saving and automation, re-circulation and utilization of blast furnace gas, as well as high ambient temperature; It gives a higher requirement to actuator. Especially in the application of steam pipes, it is not only asked to increase the height of support, but also asked to have higher and more requirements to the motor of actuator, driving mechanism and servo control system. Our company has many successful references in this field.
In the field of ocean-going ship, due to the limit of installation space and the aggression of mist and sea water, it is required to have smaller, better sealed and anti-corrosion actuator, as well as higher reliability due to ocean-going. DCL electric actuator is warmly welcomed by the customers in this field and becomes their first choice with its protection class of IP68, compact construction, super light and good reliability.
We think we can not only provide to the market the good quality products, but also present our responsibility to the society, which we think is the most important. We ask all of our employees to keep in mind to put the quality first, be faithful to his job, and be responsibility to anything done.
Quality control has a long way to go. It is a management culture and a way for the company to exist. The quality consciousness should be brought into the mind of each employee and displayed in each action of his daily work.
