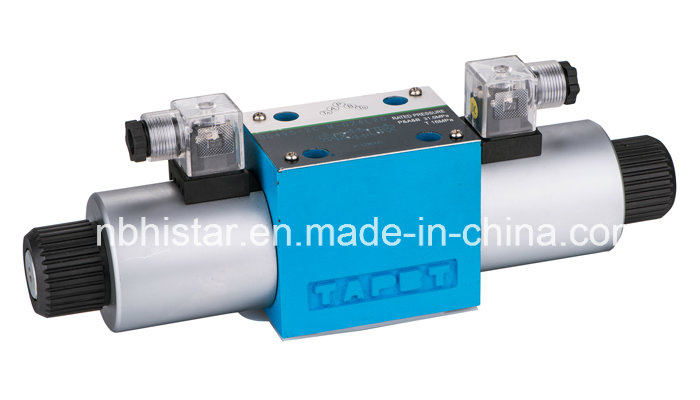

Dg4V-5-20 Series Solenoid Directional Valves (DG4V5-2C-M-D24L 20)
| Price: |
US $ 39/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DG4V5-2C-M-D24L 20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Household Usage |
Product Description

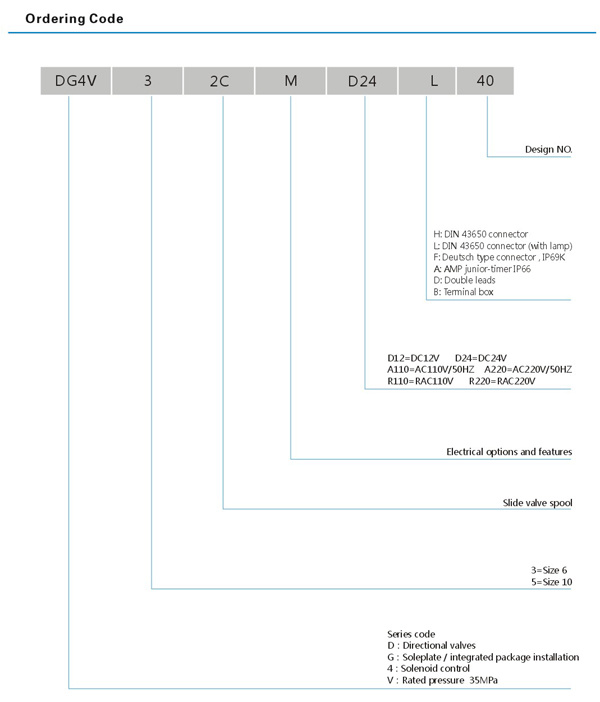

Ordering Code:
Technical Specificaton:1. General Specification:
| Weight (Double Solenoids) | kg | 6.55(DC), 5.7(AC) |
| Weight (Single Solenoid) | kg | 5.00(DC), 4.2(AC) |
| Mounting Place |
| Any Place |
| Surrounding Temperature | ºC | -20 to +50 |
2. Hydraulic Specification:
| Max. Operating Pressure (P, A, B port) | Mpa | 35 |
| Max. Pressure of T port | Mpa | 16 (dynamic state), 16(static state) |
| Rated Flow Rate | l/min | 80 |
| Max. Flow Rate | l/min | 120 |
| Liquid medium |
| Mineral Hydraulic Oil, Phosphate Oil |
| Oil temperature Fluctuation Range | ºC | -20 to +80 |
| Oil Cleaness |
| ISO4572: B10≥75NAS1638:9grade |
| Oil Viscosity |
| ISO-VG32 (5420) cSt |
3. Electrical Specification:
| Voltage |
| DC, RAC |
| Operating Mode | ED | 100% |
| Voltage Tolerance | % | -10 to +10 |
| Reversing and Rest time | ms | AC:on 25, off30/DC: on 160, off 120/ RAC: on 160 |
| Max. Reversing Frequency | Hz | 3 |
| Coil Insulation Grade |
| AC: H, DC: B, RAC: B |
| Max. Solenoid Temp. | ºC | AC: 180, DC: 135, RAC: 135 |
| Solenoid Weight | kg | AC: 0.7, DC:1.0, RAC:1.0 |
| Power Voltage | V | 12 | 24 | 110 | 220 |
|
|
| Power Type |
| DC | DC | AC | AC |
|
|
| Power Frequency | Hz |
|
| 50 | 50 |
|
|
| Rated Power Consumption | W | 38 | 38 | 40 | 40 |
|
|
| Solenoid resistance(20ºC) | ohm | 38 | 15.2 | 55 | 59.5 |
|
|
| Operating current(20ºC) | A | 3.15 | 1.58 | 0.42 | 0.47 |
|
|

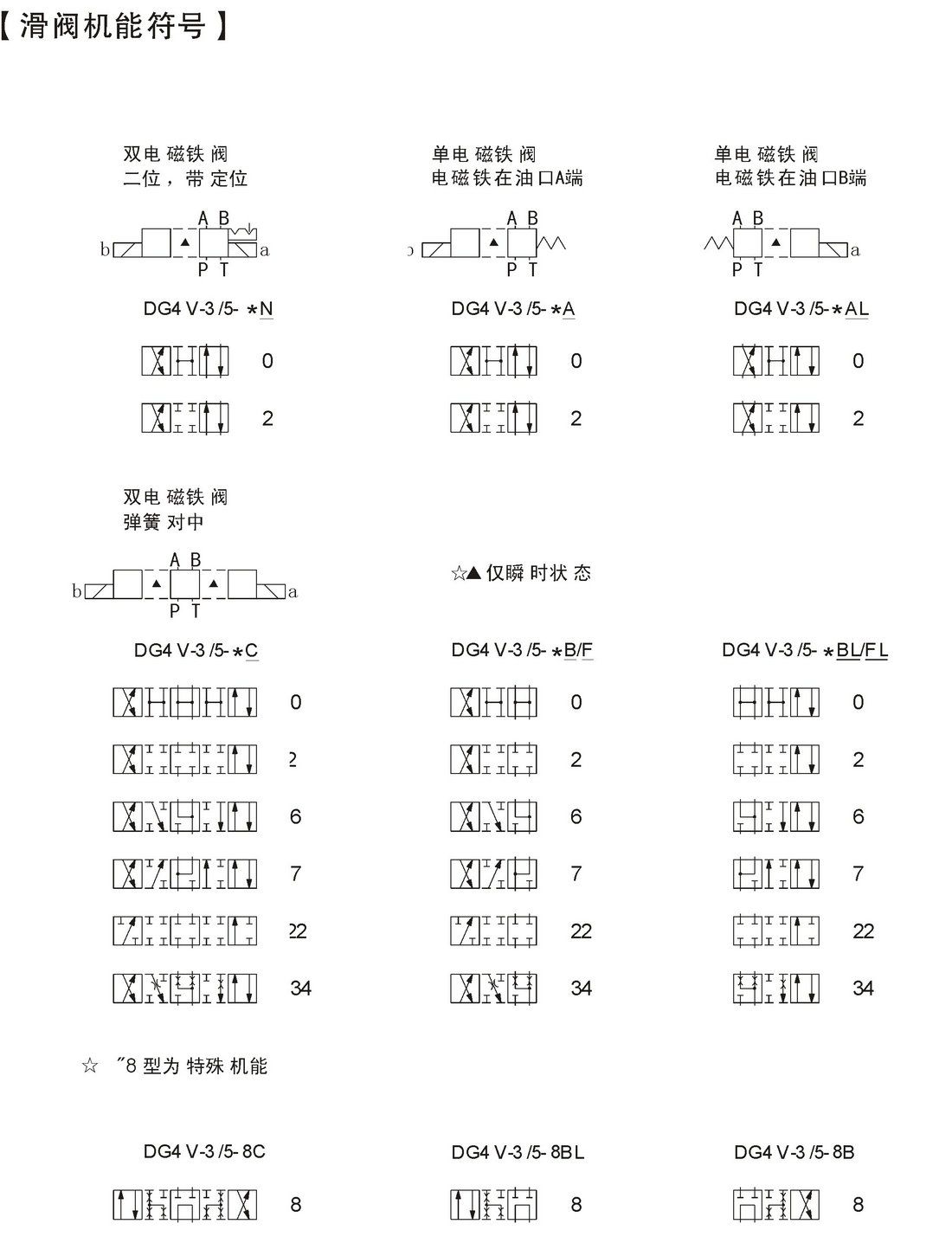

Symbol:
Mounting Size:
