| Prod Model: |
LF-56/110 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| 237*137*140cm: |
Unloading Valve, Safe Valve and Foot Control Valve |
| Machine Type: |
High Pressure Cleaner |
| Fuel: |
Diesel |
| Clean Type: |
High Pressure Cleaner |
| Cleaning Process: |
Cold Water Cleaning |
| Certification: |
ISO9001:2008 |
Product Description

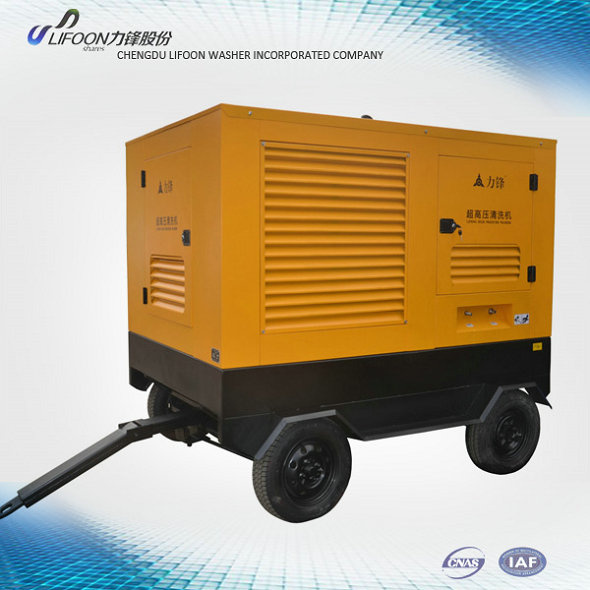

Charactor of diesel power truck high pressure sprayer
1. Independent stainlesssteel high pressure cylinders, stainless steel pump body. Straight-line hydraulic end
2. Compulsory lubrication system
3. Plunger core automatically regulate device
4. Babbitt alloy crosshead
5. The forged steel crankshaft, heavy duty bearing
6. Low speed and industrial design
7. Phase failture, overload protective device
8. Pressure adjustable
9. Safe valve, foot control valve
10. Sewer cleaning
11. High-endurance, can adapt to long-term continuous operation
12. Accompany with a set of spare parts and maintenance manual
13.1 year warranty
Applications of diesel power truck high pressure sprayer
1. Clean and test the pressure of pipelines, reaction still and containers in chemical plant
2. Used for cleaning pipelines, containers and heat exchangers by saltwork, pharmaceutical factory and sugar-refinery.
3. Drill pipe cleaning, pipe cleaning in oil and gas industry
4. Concrete roughening, rubber, rust and plaint removal
5. Fast removal breadcrust in rotary kiln of cement plant
6. Remove paint, pitch and floating oil and clean highways, airport runways, ship board, oil tank and bridges and other large asphalt surfaces.
|
MODEL |
PRESSURE |
WATER FLOW |
POWER |
Plunger Diameter |
STROKE |
PACKING SIZE |
WEIGHT |
PACKING |
|
|
Bar |
PSI |
L/min |
GPM |
KW |
mm |
mm |
cm |
KGS |
|
|
LF-400/14 |
140 |
2030 |
400 |
105.7 |
110 |
70 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-317/18 |
180 |
2611 |
317 |
83.8 |
110 |
62 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-250/23 |
230 |
3336 |
250 |
66.1 |
110 |
55 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-220/25 |
250 |
3626 |
220 |
58.1 |
110 |
52 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-190/30 |
300 |
4351 |
190 |
50.2 |
110 |
48 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-160/36 |
360 |
5221 |
160 |
42.3 |
110 |
44 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-132/42 |
420 |
6091 |
132 |
34.9 |
110 |
40 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-120/46 |
460 |
6672 |
120 |
31.7 |
110 |
38 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-107/52 |
520 |
7542 |
107 |
28.3 |
110 |
36 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-95/60 |
600 |
8702 |
95 |
25.1 |
110 |
34 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-74/75 |
750 |
10877 |
74 |
19.6 |
110 |
30 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-65/88 |
880 |
12763 |
65 |
17.2 |
110 |
28 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-56/110 |
1100 |
15954 |
56 |
14.8 |
110 |
26 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-48/125 |
1250 |
18129 |
48 |
12.7 |
110 |
24 |
70 |
237*137*123 |
1500 |
wooden case |
|
LF-40/140 |
1400 |
20305 |
40 |
10.6 |
110 |
22 |
70 |
237*137*123 |
1500 |
wooden case |
Chengdu Lifeng Washer Incorporated Company was established in 1993. We have specialized in developing, producing and marketing high pressure pumps, testing pumps and high pressure washers for 20 years. Our company has professional senior engineers who are expert in water-jet machine manufacturing which are electric motor and engine driven.
Our products have gained a top reputation for reliable quality, precise design and good service. The rated power range of Lifoon series is from 1.3kw to 160kw and output pressure range is from 25bar (362psi) to 2500bar (36258psi). Fitted with special nozzles, our machines can be used in petrochemical industry and other industry fields. LIFOON series products refreshed impression in foreignor's mind that on Chinese goods. Depending on advanced technology and outstanding performance, we won the praise from more than 1 0 0 countries' customer, such as Australia, Mexico, India, Malaysia, Canada.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalogue or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
