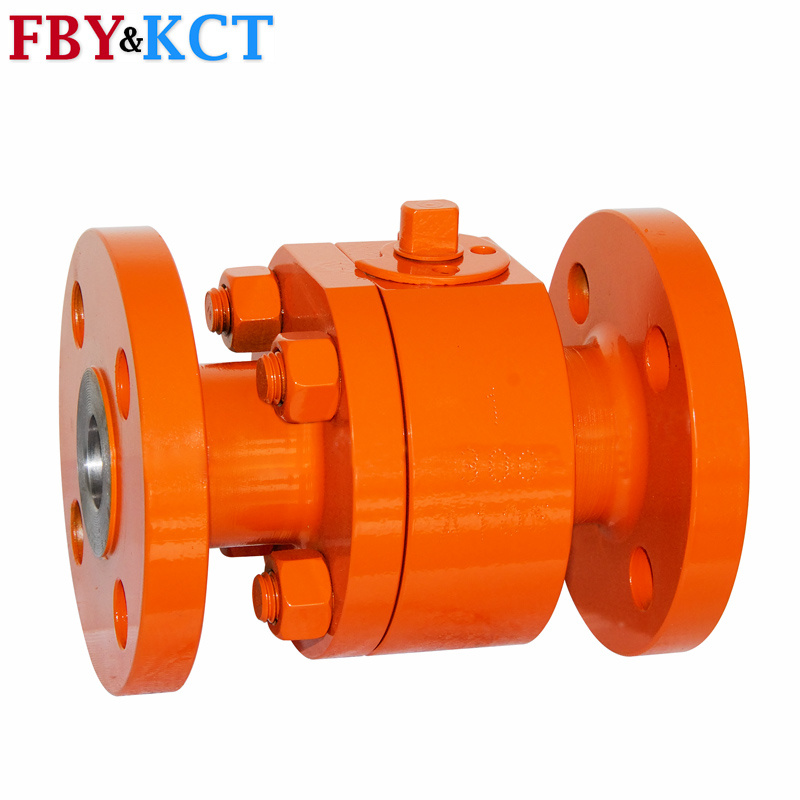

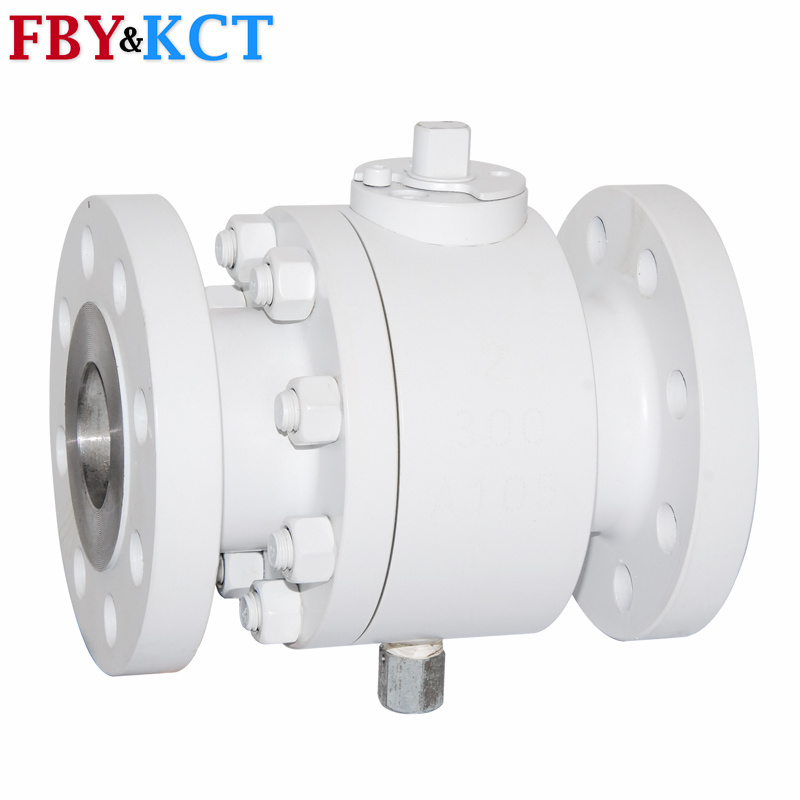

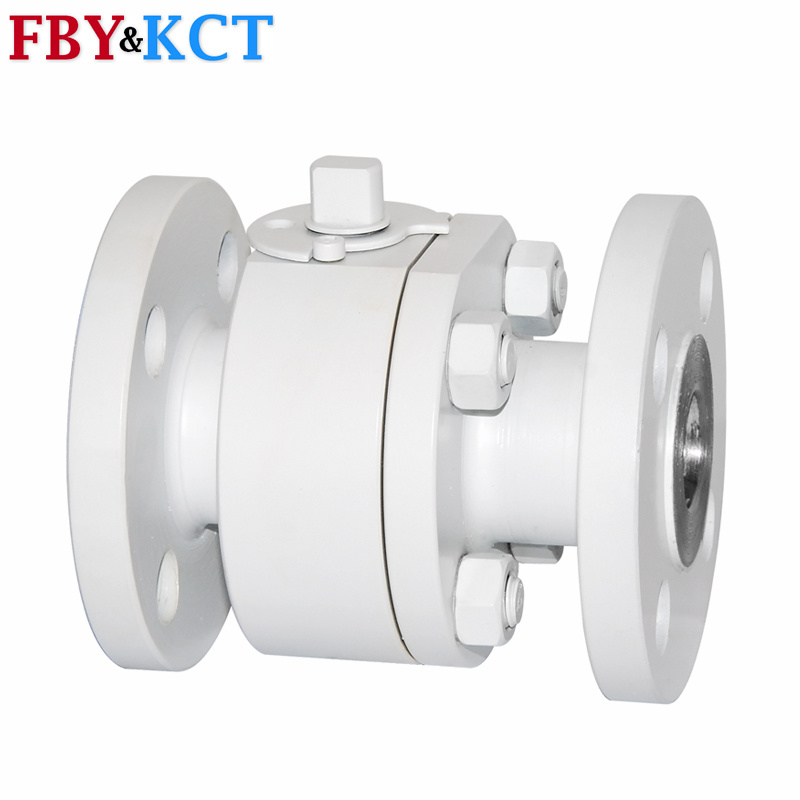

Different Color Forged Ball Valve

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Material:	Stainless Steel
Application:	Household Usage
Function:	Forged Ball Valve

Product Description

Product Explanation:


Floating Forged Ball Valve

Size range: 1/2"-4"

Bore type: Full Bore and Reduced Bore

Working pressure: Class 150~Class 2500

Working Temp: -46° C~200° C

Material: A105, F304, F316 etc

1. Anti-fire safe design

When the trunnion ball valve be used normally, its sealed by seat and ball surface, seat retainer sealed by O-ring and body, this is soft sealed and reliable sealing. When the seat and O-ring are burnt, the seat retainer and body will be sealed by expanded graphite. Thus act anti-fire safe purpose.

2. Anti-static device

In order to prevent friction among ball, stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident, in this ball valve, static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.

3. Free leakage of body Sealed construction

The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can??t induce external leakage.

4. Low torque in operation

The self-lubricated bearings are installed at the friction of stem, resulting in wear resistance, fiexibility of operation and low torque.

5. Automatic body cavity relief

When the body pressure going up un-normally as the unstable factor, the trunnion ball valve downstream seat will be pushed by un-normally pressure, and the release the unnormal pressure automatically, it doesn't damage to the sealing of upstream seat. The un-normally pressure which in the floating ball valve body will release the pressure into the upstream pipe directly, it doesn't damage to the sealing of the downstream seat.
