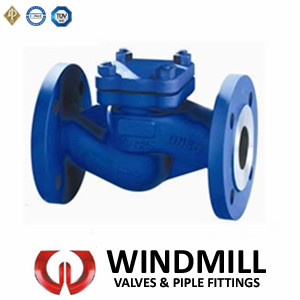

DIN Cast Steel Flanged Lift Check Valve (H42H-25 DN50)
| Price: |
US $ 144-15347/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
H42H-25 DN50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50 |
| Pressure: |
Pn25 |
| Connection Form: |
Flange |
| Material: |
Cast Steel |
| Application: |
Industrial Usage |
| Structure: |
Lift |
Product Description
Applicable/Product Standards:
Steel Check valve Design: DIN 3356
Face to Face according to: EN12266
Flanges Ends according to: EN1092-1
Butt Welding Ends according to: EN12627
Inspection and Testing according to: EN12266
Design/Production Description:
Meet design requirements of EN13709
-Straight and Angle patteren body design
-Packing: Bellow Sealed-BB, Bolted bonnet
-Yoke intergral with bonnet
-Loose disc, choice of plug or ball
-Renewable seat ring or Body seat ring
-Impact handwheel for DN400 & above
-Horizontal servece
-Flanged or buttwelding ends
WINDMILL Check Valve Feature:
Full Port Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
Switt Disc, Fully Guided
Size: DN15 - DN400
Pressure: PN10 PN16 PN25 PN40
Connection: Flanges, Butt Weld, Groove
Material:
GP240GH (1.0619/GS-C25), G-X6CrNi18.9(1.4308), G-X6CrNiMo18.10 (1.4408)
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
