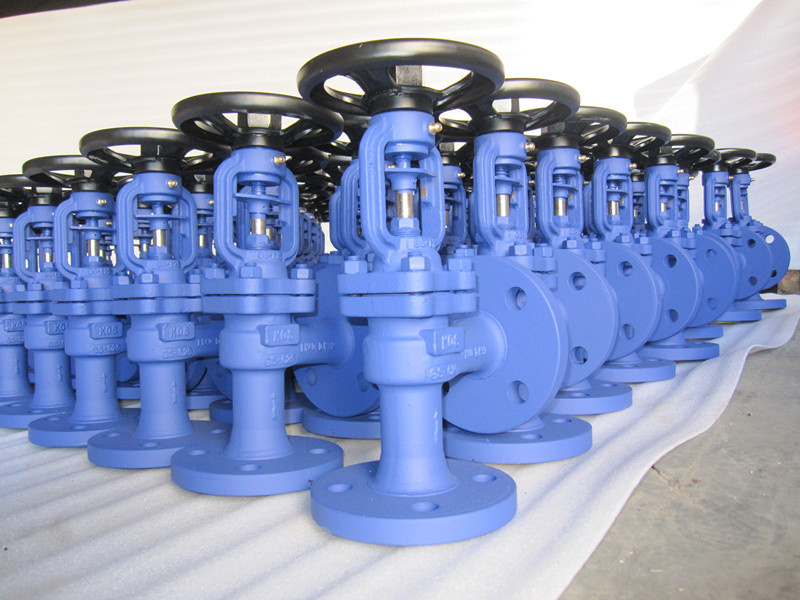

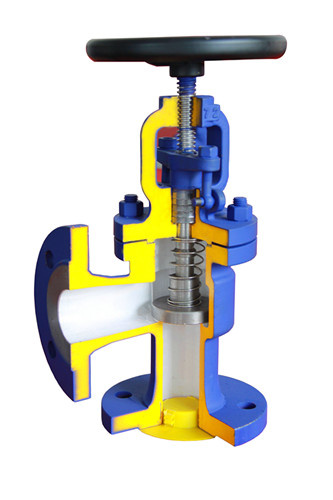

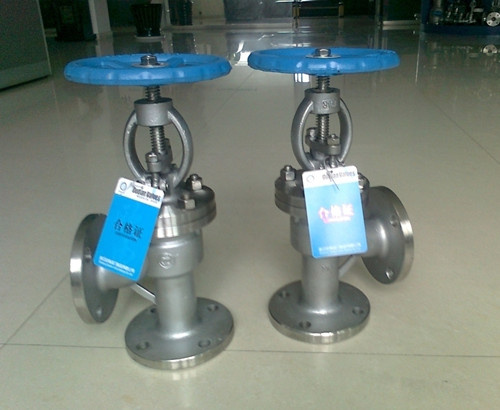

DIN En Cast Steel Angle Stop Valve
| Price: |
US $ 32/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
J41H-PN25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Standard: |
DIN, ANSI |
| Materials: |
Cast Steel |
| Pressure Rating: |
Pn 1.6 ~ 4.0 MPa |
| Size: |
Dn15~Dn350 |
| Test Standard: |
DIN En 12266, API 598 |
| Structure: |
Angle Type Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Sealing Form: |
Gland Packings Globe Valve |
| Application: |
Bellows Globe Valve |
Product Description
This kind of valve is one of RIDI main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery. Low fugitive emission control is available upon request.
Face-Face Dimension: EN 558-1, DIN 3202, ISO 5752, EN 12627
Flange Dimension: EN 1092-1
Test: EN 12266, ISO 5208
Products Range:
Rating: PN 1.6 ~ 4.0 MPa
Body Materials:Carbon Steel, Stainless Steel , Alloy Steel, Duplex Steel
Trim: Per API 600
Operation: Handwheel, Gear, Motor, Pneumatic
Integral body seat
Plug disc
Optional Impact hand wheel
Refinery
Petrochemical
Power plant
General Industry
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.
RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.
The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.
RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.
The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
