| Prod Model: |
H44T-16 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Structure: |
Swing |
| Function: |
Nrvr Silence |
| Application: |
Water Industrial Usage |
Product Description

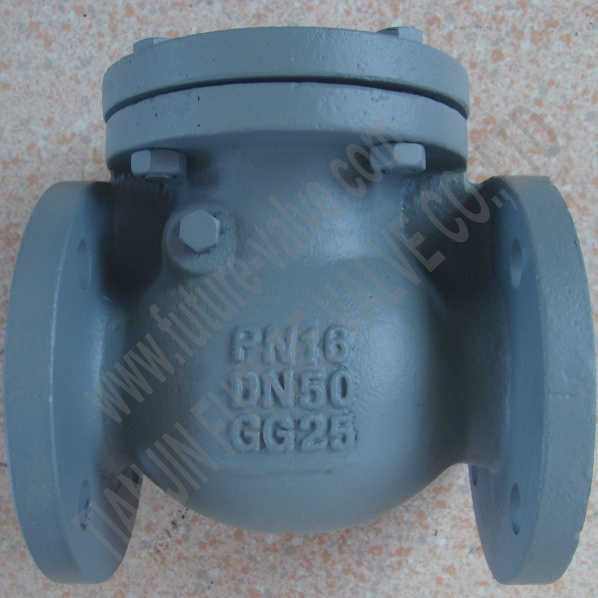

Future Valve - DIN3352 DIN3202 F6 Pn16 Dn50 Swing Check Valve
Specifications
1. MSS SP-71, BSEN 12334 design.
2. Size: DN50-DN600.
3. WRAS rubber coated disc or brass seal.
4. FF: ISO/EN558/ANSI B16.10.
5. PN10/16/25 presure.
TECHNICAL DATA
Valve Standard: MSS SP-71, BSEN 12334
Nominal diameter: 2"-24"/DN50DN600
Working pressure: 10/16/25Bar
Face-to-face: ANSI B16.10, ISO 5752 Series 10, EN 558 Series 10, DIN3352 F6
Flange accommodation: ANSI B16.1 Class125/150, EN1092-2 PN16
Tightness check: API 598, ISO 5208, EN12226-2
Material
Body: Cast iron or ductile iron
Bonnet: Cast iron or ductile iron
Seat ring: Brass or Cast bronze or stainless steel(SS304)
Arm: Cast iron or ductile iron
Disc: Cast iron or ductile iron
Pin: Stainless steel
Drain plug: Stainless steel
Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).
